Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Compression Testing Machine |
| Weight: |
>2000Kg |
| Power Source: |
AC380V |
Product Description

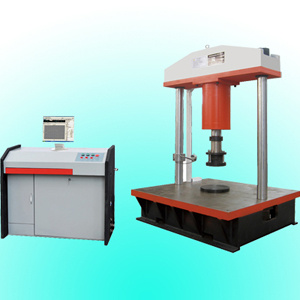

1.Product name:computerized manhole cover compression testing machine
2. Introduction of testing machine
The manhole cover compression testing machine can be used to test the compression properties of cast iron manhole cover, composite material manhole cover, and steel reinforced concrete.
The manhole cover compression testing machine adopts computerizing, high precision electro-hydraulic servo valve to drive precise hydraulic cylinder and then realize the auto control to the test force, displacement, and deformation, etc.
3.test standard
BS EN 124 Gully tops and manhole tops for vehicular and pedestrian areas-Design requirements, type testing, marking, quality control
4. Main technical parameters of testing machine
| No. | Item | Spec. |
| 1 | Model | JAW-600 | JAW-1000 | JAW-1500 |
| 1 | Max. test force | 600kN | 1000kN | 1500kN |
| 2 | Measuring range | 2%-100%FS | 2%-100%FS | 2%-100%FS |
| 3 | Precision | 1% | 1% | 1% |
| 4 | Compression space | 0-350mm | 0-350mm | 0-350mm |
| 5 | Size of working table | 1200X1400mm | 1200X1400mm | 1400X1500mm |
| 6 | Diameter of upper pressure head | 250mm | 250mm | 250mm |
| 7 | Stroke of piston | 150mm | 150mm | 150mm |
| 8 | Deformation measuring range | 0-10mm | 0-10mm | 0-10mm |
| 9 | Deformation resolution | 0.01mm | 0.01mm | 0.01mm |
| 10 | Loading speed | 0-40kN/s | 0-40kN/s | 0-40kN/s |
| 11 | Dimension of main machine | 1430X1400X2000mm | 1430X1400X2000mm | 1400X1500X2050mm |
| 12 | Dimension of control cabinet | 1100X700X940mm | 1100X700X940mm | 1100X700X940mm |
| 13 | voltage and power | 380V, 50Hz, 1.5kW | 380V, 50Hz, 1.5kW | 380V, 50Hz, 1.5kW |
| 14 | Weight of main machine | 3000kg | 3000kg | 3000kg |
1. Brief introduction
Jinan Bang ke Testing Machine Co., Ltd, with rich experience and outstanding business philosophy, is specialized in designing and manufacture various testing machines. On the basis of our much experiences of designing and sales group, we have the ability to supply a variety of normal and special testing equipments and also our customers can enjoy our superior services.
2. Products
Electronic universal testing machine, Compression testing machine, Hydraulic universal testing machine, Tension testing machine, Static stiffness testing machine, Ring stiffness testing machine, Wood based panel testing machine, Torsion testing machine, Fatigue testing machine, Bending testing machine, Impact testing machine
3. Materials can be tested:
Metal and non-metal materials, Composite materials, Rubber and plastic, Construction materials, Weave, Package, Wire and cable, Spring, Tubing, Wood Pellet ore, Other materials.
4. Appliction industries
Mechanical metallurgy, Petrochemical industry, Construction, Electricity and coal industry, Measurement and quality inspection, Inspection, Aerospace, Transportation, etc.
