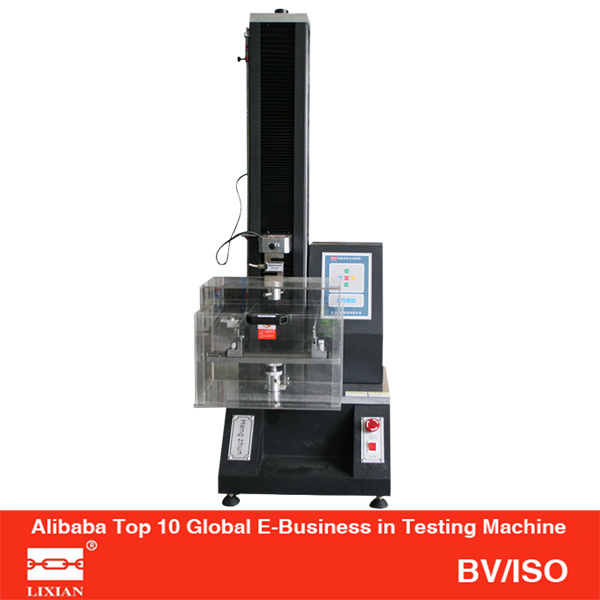

Compression Testing Machine for Phone LCD (Hz-1007C)

Product Specifications

Prod Model:	HZ-1007C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tensile Strength Tester Max. Load:	50n, 100n, 200n, 500n, 1kn, 2kn(Optional )
Accurate Grade:	1grade / 0.5 Grade
Tester Resolution:	Max Load: 1/200000
Effective Tensile Stroke:	400, 500mm
Testing Speed:	From 0.001 to 500mm/Min
Safety:	Electronic-Limit Protection
Accruacy Of Displacement Measurement:	+/-0.5
Overload Protection:	Overload 10%, Automatic Protection
Product Scopes:	All Universal Testing Machines
Service:	OEM, Oversea Service
Type:	Universal Testing Machine
Weight:	0-100Kg
Power Source:	AC220V
Maxcapacity:	Max Testing Force:2 Kn
Accuracy Grade:	0.1n
Display:	Computer Display

Product Description

Textile Fabric Tensile Strength Tester Hz-1007C
Equipment summary:
This textile fabric tensile strength tester is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control. This series of machine using single-space structure, operational space at the bottom, it is mainly applied to test non-metallic and metallic material, which the load is less than 1kN, it has the parameters, such as stress, strain, control mode of displacement, calculated max force, tensile strength, bending strength, compressive strength, elastic modulus, rate of elongation, yield strength and others.
Main function:
This textile fabric tensile strength tester can be applied to test lots of materials in tension, compression, tear, peel (can 90 degrees and 180 degrees) and other mechanical test, such as rubber, tires, belt, shoes, plastic, film, acrylic, FRP, ABS, EVA, PU, aluminum-plastic pipe, composite materials, waterproof materials, fibers, textiles, wire and cable, paper, gold foil, ribbons, thread, spring, wood, medicine packaging materials, tapes etc.
Main features:
1. Adopt Panasonic servo motor, the beam moves up and down to test the load through the transmission
2. The whole control system is safe and high reliability.

3. Microcomputer control the whole testing process, real-time dynamic display the load values, displacement values, deformation, testing speed and testing curves.
4. Microcomputer for data processing and analysis, testing results can be saved automatically, testing curvers can be transferred out after the test, you can know the testing process through the testing curvers, or compare with others curves, or amplify the curvers.
5. The testing software of the Window, with strong processed capabilities of data and graphics, it can immediate print out a complete testing report and testing curves.
6. Has limit protection, overload protection, emergency stop and other safe protective functions.
Applicable industry:
The textile fabric tensile strength tester is widely used in wire and cable, hardware, electronic and electrical equipment, packaging, printing, medical equipment, auto parts, textiles and leather, clothing, shoes, rubber and plastic products, colleges and universities; Research laboratories; Inspection arbitration, technical supervision departments and many other industries, it is the basic equipment for quality management and physical tested.

Model	HZ-1007C Textile Fabric Tensile Strength Tester
Maximum load	50N,100N,200N, 500N, 1KN,2KN(optional )
Accurate grade	1grade / 0.5 grade
Effective measuring range	Force from 0.2% to 100% / from 0.4% to 100%
Measuring accuracy	the value ±1% /  the value ±0.5%
Tester resolution	Max load: 1/200000, constant the resolution
Load sensor	Basic configuration sensor max load: one
Effective tensile stroke	400, 500mm (can be increased the tensile space according to customers requirement )
Testing speed	From 0.001 to 500mm/min
Accruacy of displacement measurement	Tolerance:±0.5% / tolerance: ±0.2%
Safety	Electronic-limit protection
Testing platform moving  device	Fast /slow( two speeds to control ),can jog
Return Back	Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation
Overload protection	Overload 10%,    automatic protection
Fixture	A set of tensile clamp
Machine dimension	450*580*1350 mm (L*W*H)
Motor	Zhongyuan  AC  servo motor and drive
Power supply	220V , 50HZ or according to the requirement
Power	0.4KW ( depending on different demand of force,using different motor)
Weight	About 160 Kg
