Product Specifications
| Prod Model: |
FM-A 600/800/1000/1200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Printing Colors: |
8 ( User Can Increase or Decrease ) |
| Kind: |
Computer Color Screen Printing Machine |
| Max. Printing Width: |
1200mm |
| Machine Printing Speed: |
160m/Min |
| Total Power: |
180kw |
| Type: |
Pin-on |
| Plate: |
Gravure Printing |
| Embossing Structure: |
Rotary Letterpress |
| Color & Page: |
Multi-Colour Printing Press |
| Printing Interface: |
USB2.0 |
| Printing Speed: |
7.5CPI |
| System Supported: |
Windowsxp32 |

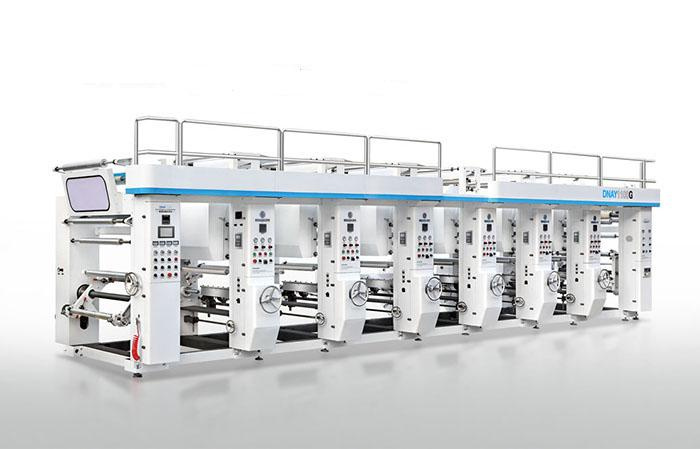

Product Description
General information1. Unwind and Rewind: Cantilever turret whirling stand with double arm and double station, Flatulence axis loading and unloading, change fast, safe and reliable,
Automatic cutting, high-speed non-stop change materials
2. Printing: Vertical register system, high precision and less waste. Doctor blade plays with double-axis. Drive by independent motor
3. Dry oven: Patent technology, low consumption oven, high wind pressure high efficiency and energy saving system, several return air road, saves energy
4. Control: With the Siemens PLC control, YASKAWA frequency converter, seven motor tension control system, main components are imported brand
Applicable materials: This machine is used for BOPP, PET, PVC, PE, aluminum foil and roll paper with excellent properties of thin film reel material printing more continuous printing color, widely applied in all kinds of high grade print.
| Main Technical Parameters |
| Model | FM-A-600 | FM-A-800 | FM-A-1000 | FM-A-1200 |
| Printing colors | 8 ( User can increase or decrease ) |
| Diamter of printing cylinder | 100-320mm |
| Max.printing width | 600mm | 800mm | 1000mm | 1200mm |
| Diamter of unwind/rewind | 800mm |
| Machine printing speed | 160m/min |
| Max.printing speed | 150m/min |
| Register precision | ±0.1mm |
| Drying method | Electric Heating And Steam Heating Or Oil Hearing |
| Totalpower | 120kw | 140kw | 160kw | 180kw |
| Weight of machine | 22000KG | 24000KG | 26000KG | 28000KG |
| Overall dimension | 16600*2700*2750mm | 16600*2900*2750mm | 16600*3100*2750mm | 16600*3300*2750mm |
Wenzhou Fengming Machinery Co., Ltd., which is located in the urban district of Ruian economically developed city on the bank of the East China sea of Zhejiang is an enterprise specializing in developing and producing various plastic series machinery products. Taking high science and technology as its guide, taking improving enterprise's management level and employee quality as its center and taking expanding the production scale and improving the grade of products as its aim, our enterprise will strictly emphasize the product quality and put every series of products on the international market by outstanding performance and preeminent quality.
Based on the policies of "Winning Customers, Trust by Quality"and "Meeting Customers, Needs by Constant Improvement", our enterprise has won the trust form numerous customers. The Digital Information Age in the 21st century has come, the whole staff of Fengming Enterprise will meet the opportunity and challenge brought in the internet Age with full of vigour and vitality in an ever young posture.
Winning Customers, Trust by Matter-of-fact Attitude, Revealing Enterprise's image by Quality. Our enterprise will wholeheartedly welcome numerous customers at home and abroad to visit us for guidance and business discussion.
Business Type: Manufacturer/Factory & Trading Company
Number of Employees: 48
Management System Certification: ISO 9001
International Commercial Terms: FOB, CIF, CFR
Terms of Payment: LC, T/T
Average Lead Time: Peak season lead time: one monthOff season lead time: within 15 workdays
Number of Foreign Trading Staff: 4~10 People
Export Year: 2004-06-07
Export Percentage: 71%~90%
Main Markets: North America, South America, Europe, Southeast Asia/ Mideast, Africa
Export Mode: Have Own Export License
Factory Address: D Area Standard Factory Songqiao Wanquan Town, Pingyang County, Wenzhou, Zhejiang, China
R&D Capacity: OEM, ODM, Own Brand(FENGMING)
No. of R&D Staff: 5-10 People
No. of Production Lines: Above 10
Annual Output Value: US$1 Million - US$2.5 Million
