Computer Servo Tensile Tester
Product Specifications
| Prod Model: |
AS-PC- Volume |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Load Accuracy: |
0.5% |
| Valid Width (Mm): |
400 |
| Max. Route (Mm): |
1000(Not Including Clamp) |
| Motor: |
AC Servo Motor |
| Force Capacity: |
50 ~ 20000kg |
| Test Speed: |
0.1~500 Mm/Min |
| Power: |
AC220V |
Product Description

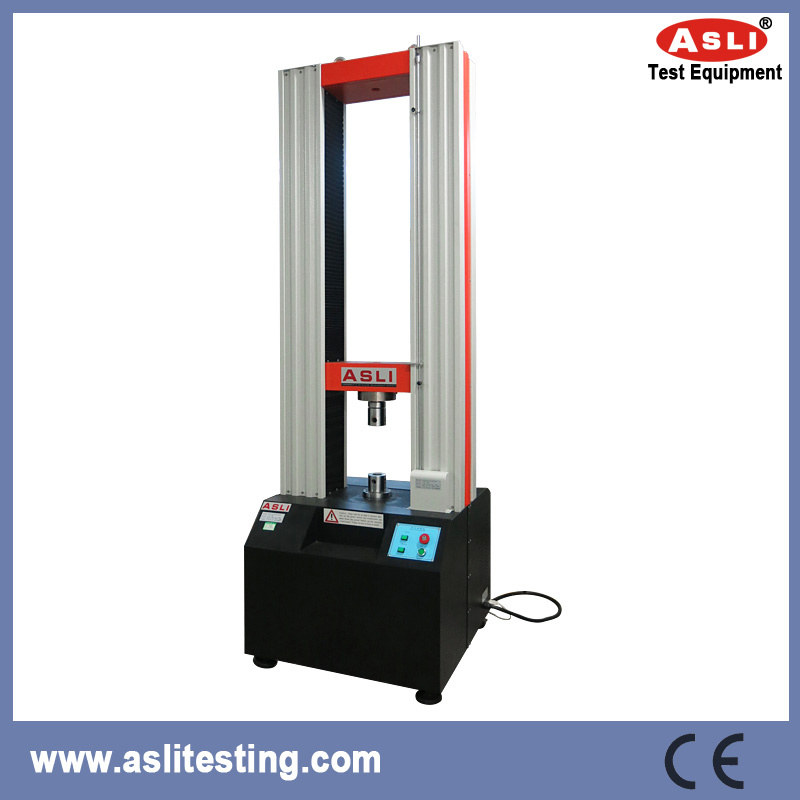

Computer Servo Tensile Tester
long history manufacturer (established in 1988)
high quality reliable equipment
1 year warranty
application:
Computer Servo Tensile Tester is an electrically operated machine that is used for testing tensile strength and elongation of materials like plywood, wires, cables, conductors, ferrous and non-ferrous materials.
Computer Servo Tensile Tester features:
1. Force value and deformation can display at the same time.
2. Drive by servo motor, stand-alone can sent testing speed directly.
3. Press Start button the machine will testing automatic after setting.
4. After finishing testing, it can self-return.
5. Fast disassembly joint, can use different kinds grips.
6. Single button testing function, easy operation.
7. Direct-connected to printer, print out report.
technical parameters:
Model | AS-PC- Volume |
| Capacity (Kg) | 50,100,200,500,1000,2000,5000,10000,20000 |
| Load Accuracy | 0.5% |
| Load Resolution | 1/100,000 |
| Valid Width (mm) | 400 |
| Max. Route (mm) | 1000(not including clamp) |
| Test Speed (mm/Min.) | 0.1~500(1000) |
| Speed Accuracy | ±0.5% |
| Motor | AC servo motor |
| Volume WxHxD (mm) | 1750x3310x1220 |
| Weight (Kg) | 300 |
| Power | AC220V 1 3 lines
AC380V 3 5 lines |
