Product Specifications
| Prod Model: |
HZ-1009A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Effective Testing Width: |
400mm |
| Maximum Load: |
50kn, 100 Kn (Optional) |
| Units: |
N, Kn, T, Lbf |
| Accurate: |
1 Grade /0.5 Grade |
| Safety: |
Electronic-Limit Protection |
| Testing Speed: |
From 0.001 to 500mm/Min |
| Machine Size: |
1070*560*2100mm (L*W*H) |
| Motor: |
Panasonic AC Servo Motor and Drive |
| Power: |
0.75kw, 220V, 50Hz |
| Machine Weight: |
500 Kg |
| Type: |
Universal Testing Machine |
| Weight: |
500-1000Kg |
| Power Source: |
AC220V |
| Maxcapacity: |
Max Load:100 Kn |
| Loading Method: |
Computer Servo Control |
| Display: |
Computer Display |
Product Description

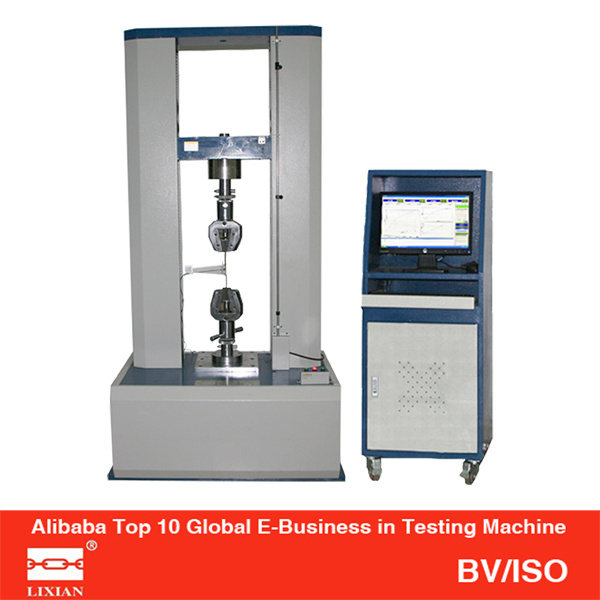

Equipment summary
Computer Servo Type Universal Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. This machine is simple to operate, especially suitable for controlling quality in production line This series of machine is mainly applied to test the load less than 10ton.
Main function
Mainly applied to test the metallic and non-metallic materials in tension, compression, bending, shear, peel, tear or two-points extensions and others., such as rubber, plastic, wire and cable, optical fiber and cable, safe belt, leather belt composite materials, plastic profiles, waterproof membrane, steel, copper, profiles, spring steel, bearing steel, stainless steel (as well as other high-hardness steel), castings, plate, strip, non-ferrous metal wire
Main feature:
Adopted photoelectric encoder to measure the displacement, the controller uses the embedded single-chip microcomputer structure with multi-function software, which combined with measurement, control, culculation and storage. It can automatic calculate the stress, rate of elongation (need to add with extensometers), tensile strength, elastic modulus, automated statistical results; Automatically recorded the biggest point, breaking point, the designated point value or the rate of elongation; Using computer to display the dynamic curves in the testing process and process the data, After testing, it can re-analysis and editing the data by amplifying the curves through the graphics processing module, printing reports, product performance reached the international advanced level.
Corresponding standard:
GB/T16491-2008 electronic universal testing machine
Applicable industry
It is widely used in controlling the quality; Rubber & Plastics; Metallurgical iron and steel; Manufacturing machinery; Electronic equipment; Automobile production; Textile fiber; Wire and cable; Packaging materials and foodstuffs; Instrumentation; Medical equipment; Civilian nuclear energy; Civil aviation; Colleges and universities; Research Laboratory; Inspection arbitration, technical supervision departments; Building materials, ceramic; Petroleum & Chemical; Other industries.
Technical parameter:
| model | HZ-1009B |
| Maximum load | 5ton, 10ton, option |
| Accurate grade | 1grade /0.5 grade |
| Effective measuring range | Force from 0.2% to 100% (1 grade) / from 0.4% to 100% (0.5 grade) |
| Measuring accuracy | the value ±1% / the value ±0.5% |
| Tester resolution | Max load 1/200000, constant the resolution |
| Load sensor | Basic configuration sensor max load: one |
| Effective testing width | 400mm(can be widened according to customers requirement ) |
| Effective tensile space | 400, 500, 600mm (can be increased the height according to customers requirement) |
| Testing speed | From 0.001 to 500mm/min |
| Accruacy of displacement measurement | Tolerance: ±0.5% / tolerance: ±0.2% |
Deformation of measured system
according to the requirements | Min span :10mm, Max range of deformation 800mm
Extended deformation span: 25mm, 50mm, 100mm, range of deformation 5mm, 10mm, 25mm |
| Accuracy of measured deformation | Tolerance :±0.5% (according to requirement of customer to choose the larger or small deformation) |
| safety | Electronic-limit protection |
| Testing platform moving device | Fast /slow ( two speeds to control),can jog |
| Return Back | Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
| Overload protection | Overload 10%,automatic protection |
| fixture | A set of tensile fixture |
| Machine size | 1040×590×2000mm(lenght*width*height) |
| Motor | Panasonic AC servo motor and drive |
| Power supply | 220V, 50HZ |
| power | 0.75KW (depending on different demand of force, using different motor) |
| weight | about 500 Kg |
