Application: this series of printing machine are suitable for OPP/BOPP/CPP 15-60um(thickness), PET 12-60um, PE 35-100um, PVC/PO/PVDC 35-80um, CELLOPHANE 20-40um, Nylon film 15-60um, Paper 30-100g/m
2 etc.
Main features:1, CBYA-M series of gravure machine adopts seven motors, four parts closed-loop tension control system which formed of FUJIKURA mini friction air cylinders, YASKAWA AC vector inverters, PANASONIC PLC and SIEMENS vector motors. Controlling can output stably whatever at low or high speed.2, Automatically printing materials change in high-speed working condition without any stop;
3, Computerized color register can auto correct the deviation quickly and accurately.
4, Turret type of unwind and rewind stand unit with double work station which all be driven by Independent AC vector motor;
5, Full closed oven with reusable hot air channel saving energy, intelligentized constant temperature controlling system and airflow is adjustable.
6, Shaft less printing cylinder loading device for rapid exchange and precise positioning.
7, Printing linear speed and meter counting display;
8,Option: most guide rollers are oiled together, to keep rollers highly flexible.

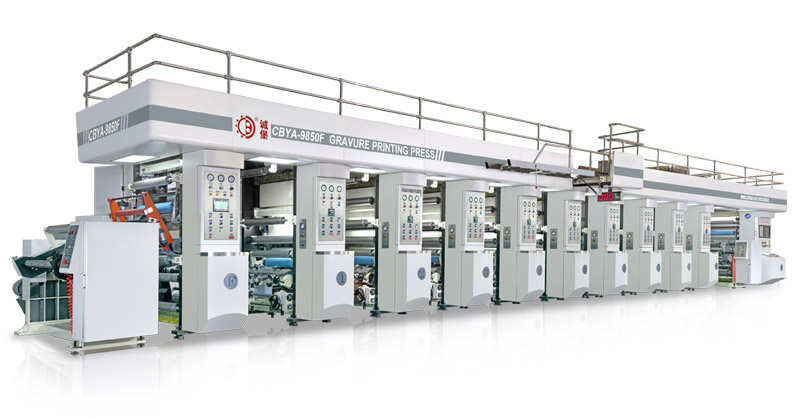

9, Careful design, reliable manufacture and assemble process for excellent quality. Beautiful shape, Main Technical Specification:| Type | CBYA-8850F | CBYA-81050F | CBYA-81250F |
| Max. Width of web | 850mm | 1050mm | 1250mm |
| Max. Printing Speed | 180m/min | 180m/min | 180m/min |
| Max. Diameter of Unwind | Φ600-Φ1100mm | Φ600-Φ1100mm | Φ600-Φ1100mm |
| Internal Diameter of Rollcore | Φ76mm | Φ76mm | Φ76mm |
| Diameter of printing cylinder | Φ120-Φ280mm | Φ120-Φ280mm | Φ120-Φ280mm |
| Registration precision | ±0.10mm | ±0.10mm | ±0.10mm |
| Printing meterial | Plastic film | Plastic film | Plastic film |
| Doctor blade move range | ±5mm | ±5mm | ±5mm |
| Tension detect mode | floating roller | floating roller | floating roller |
| Color quantity | 1-12 | 1-12 | 1-12 |
| Tension control range | 3-50kg | 3-50kg | 3-50kg |
| Length of oven | 1400mm | 1400mm | 1400mm |

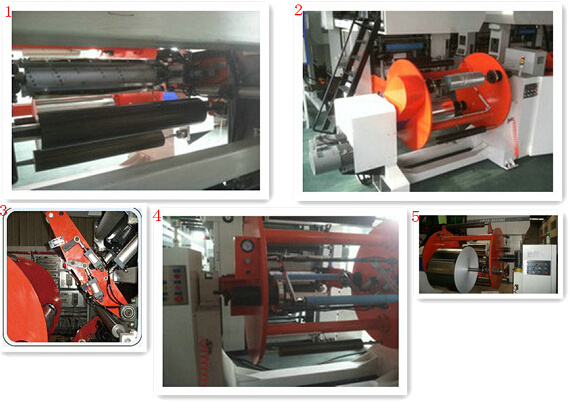

Unwind and Rewind Unit
1, Automatically detect tape surface and cut the material in up and down two directions.
2,
Turret type of independent unwind stand with two work station, automatic changing air shaft and splicing.
3,another type of cut.
4,
Rewind unit with impression rubber roller make rewinding process more stable and products tidier
5,Rewind stand.

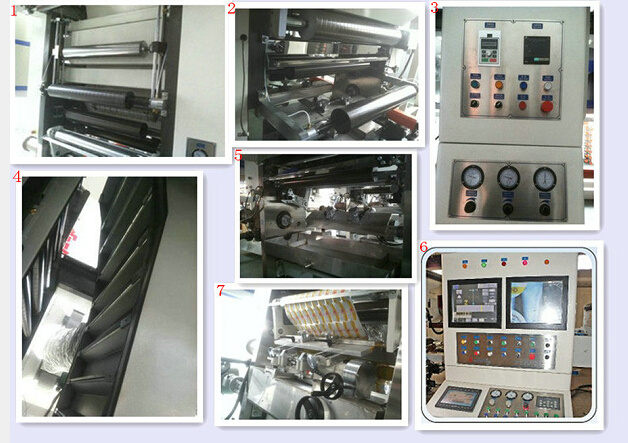

Printng Unit
1, Compensation roller adopts up/down movement with precise screw lead.
2,
The last color printing unit can both print front and back side of material.3,Control panel of every color printing unit.
4, Ten sharp heat air injector.
5, Shaft less printing cylinder loading device,
In three-direction Adjustment of pneumatic doctor blade for optimal position.6,
Touch screen man-machine interface is connected with out-feed unit, it includes color register control panel, machine control panel, video camera display and function buttons.7,
Using stainless steel plate cover the structure of doctor blade, make the machine shape more beautiful and easy to clean.The others

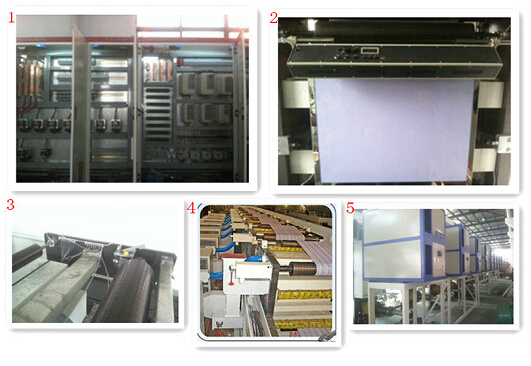

1, Main electrical cabinet includes PANASONIC PLC, YASKAWA AC vector inverter, PANASONIC middle relay etc.
2, Option: full stroboscope.
3, Chilly roller: Large touch area for desirable chilly effect, self overflow for backflow no need for high pressure and rotary joint.
4, Our machine is printing.
5, option: Air conditioner plus built-in electric heating with reusable air channel, high efficiency and saving energy.
Main Configuration| PLC | PANASONIC | 1 set |
| Main motor | SIEMENS AC vector motor | 1 set |
| Unwind and rewind motor | SIEMENS AC vector motor | 4 sets |
| In-feed and out-feed motor | SIEMENS AC vector motor | 2 sets |
| Main driving inverter | YASKAWA, Japan | 1 pc |
| Unwind and rewind inverter | YASKAWA, Japan | 4 pcs |
| In-feed and out-feed inverter | YASKAWA, Japan | 2 pcs |
| Man-machine interface | color display, Taiwan | 2 pcs |
| Mini friction air cylinder | FUJIKURA, Janpan | 4 pcs |
| Precision air valve | SMC, Japan | 4 pcs |
| Main pneumatic parts | AIRTAC, Taiwan | 1 batch |
| Guide roller bearing | NSK, Japan | 1 batch |
| Auto color registration | XINMAO, China | 1 set |
| Video camera | XINMAO, China | 1 set |
| Static power elimination brush |
| 1 batch |
