Concrete Compression Testing Machine (YES-2000) (YES-2000/2000A)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
YES-2000/2000A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Space Adjust: Manual Hand Wheel: |
Accuracy: 1% |
| Type: |
Compression Testing Machine |
| Weight: |
>2000Kg |
| Power Source: |
AC380V |
Product Description

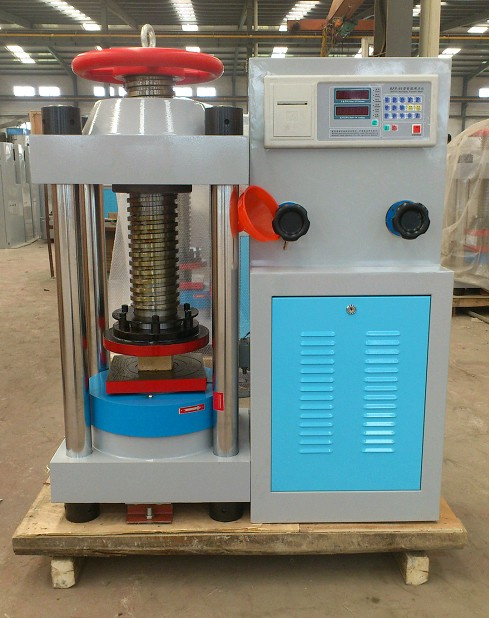

Compression testing machine (digital, computerized etc. )
YES-2000 compression testing machine is mainly used to various materials compression test. Such as cement, concrete, brick of diverse materials, rubber tray, concrete component, metal component anti-compress strength.
1, High performance load frame, with high stiffness and stability;
2, Hydraulic loading, wide speed adjusting range;
3, Digital display testing load, speed, peak value etc;
4, With overload, over voltage, over current protection function;

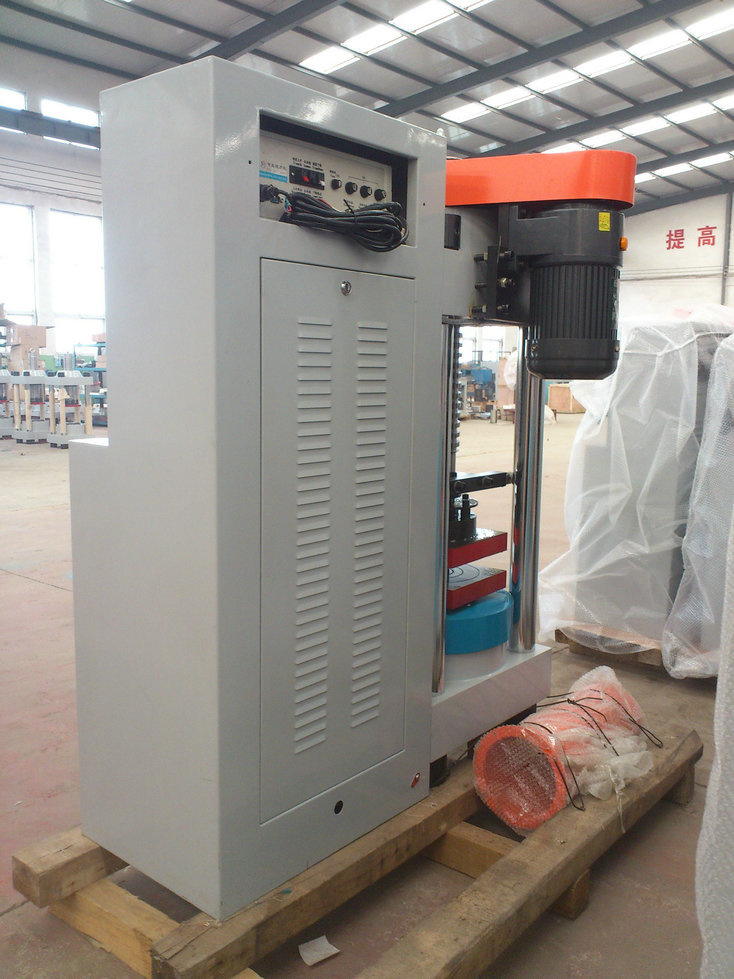

5, YES-2000 is manual screw to adjust test space, YES-2000A is motor to adjust test space.
| Model | YES-2000 | YES-2000A |
| Max. load | 2000KN | 2000KN |
| Accuracy of testing force | ± 1% of indicated value |
| Upper compression platen dia. | Φ 225mm |
| Lower compression platen dia. | Φ 300mm |
| Distance between two platens | 320mm |
| Compression platen dia. | φ 250mm |
| Piston stroke | 30mm |
| Power supply | 380V± 10%, 50Hz, 3 phase |
| Dimension | 800× 500× 1200 |
| Weight | 750Kg |
| Standard Accessories | Loadframe, oil pressure sensor, digital meter, compression platen, manual |
Beijing United Test Co., Ltd is an advancing with times testing machine manufacturer located in Beijing China. Focus on becoming Your Global Testing Partner, United Test insists on the supreme criterion is your saying and our product quality. With good communication with thousands of different field customers, as well as advanced technology, first class technician, now United Test has more than ten categories of testing equipments was put into international and domestic markets, like USA, Brazil, Germany, Italy, Swiss, Korea, Pakistan, Iran, Thailand etc.,
Our product is mainly includes:
Electronic universal testing machine;
Hydraulic universal testing machine;
Compression testing machine;
Hardness testing machine;
Impact testing machine;
Torsion testing machine;
Ring stiffness testing machine;
HDT/Vicat testing machine;
Pipe hydrostatic pressure testing machine;
Interface tensiometer;
Metallographic equipment;
Support by your teaching and saying, our highly response staffs is trying to make UnitedTest become your trustworthy testing partner!
