Application:

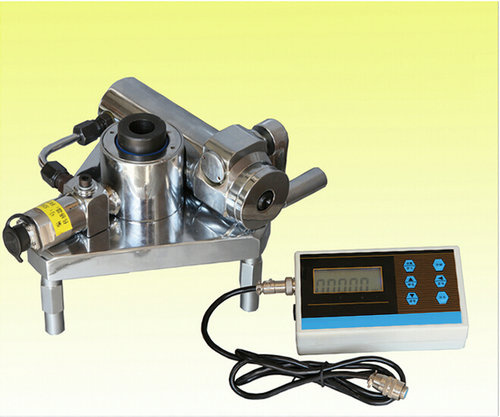

40 multi-functional strength tester is suitable for testing the concrete(C10~C80) strength and External wall tapestry brick bonding strength on site, and also suitable for testing the other pull strength. It adopts the Post-install pull-out test method for testing the concrete strength through testing the anchoring parts pull-out strength to calculate the concrete strength. Tapestry brick bonding strength is tested through three-point force of reaction to tapestry brick.
Standard:
CE CS69:94 Technical specification for inspection of concrete strength by Pull-out post-Insert method
JGJ110-97 Testing standard for adhesive strength of tapestry brick of construction engineering
JGJ126-2000 Specification for construction and acceptance of tapestry brick work for exterior wall
Parameter:
Display Mode: Force value(KN), Strength(MPa) adjustable
Hydrocylinder stroke: 10mm
Testing range: 0 ~ 40.000kN / 0 ~ 30.000MPa
Resolution: 0.001kN / 0.001MPa
Accuracy: 2%
Peak holding: yes
Data storage: 500
Power: High power capacity Li battery
Application:
40 multi-functional strength tester is suitable for testing the concrete(C10~C80) strength and External wall tapestry brick bonding strength on site, and also suitable for testing the other pull strength. It adopts the Post-install pull-out test method for testing the concrete strength through testing the anchoring parts pull-out strength to calculate the concrete strength. Tapestry brick bonding strength is tested through three-point force of reaction to tapestry brick.
Standard:
CE CS69:94 Technical specification for inspection of concrete strength by Pull-out post-Insert method
JGJ110-97 Testing standard for adhesive strength of tapestry brick of construction engineering
JGJ126-2000 Specification for construction and acceptance of tapestry brick work for exterior wall
Parameter:
Display Mode: Force value(KN), Strength(MPa) adjustable
Hydrocylinder stroke: 10mm
Testing range: 0 ~ 40.000kN / 0 ~ 30.000MPa
Resolution: 0.001kN / 0.001MPa
Accuracy: 2%
Peak holding: yes
Data storage: 500
Power: High power capacity Li battery
