Enping Lichuang Sound Equipment Factory >> Conference System High Stability Frequency UHF Wireless Microphone

Conference System High Stability Frequency UHF Wireless Microphone

Name: Conference System High Stability Frequency UHF Wireless Microphone
Brand: China-Manufacturer-Directory.com
SKU: 695926222
Availability: InStock
Rating: 4.5 (125 reviews)

Supplier:	Enping Lichuang Sound Equipment Factory
Price:	Negotiable/Set
Min Order:	100/Set
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	E8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Receiver Size:	48021050mm
Application:	Meeting
Sound Channel:	Mono
Signal Transmission:	Wireless
Wireless Technology:	UHF
Output Impedance:	50-1000Ω
Connector(',s):	XLR 3 Pin

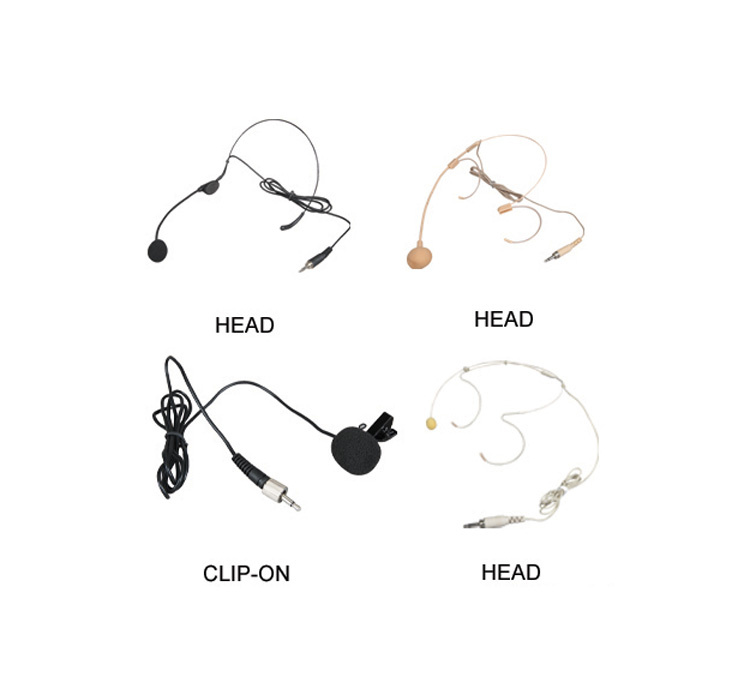

Style:	Headset Mic, Clip-on Mic, Handheld Mic
Directivity:	Super Heart-Shaped Directivity

Product Description

-- There are 4 channels in one receiver, can supply 4 transmitters to use.
-- 99 selectable frequencies in each channel.
-- It can use 4 receivers in the same place; it means 16 transmitters can be used at the same time.
-- The front panel of the receiver is provided with a power supply indicator lamp and the signal lamp which can reflect the working status clearly.
-- Using 4 card antennas for receiving.
-- Using distance is 80 meters in the perfect place.

Receiver
Carrier Frequency Range	UHF 730-850 MHz
Frequency Stability	±0.001%
Max Deviation Range	±50KHz
Modulation Mode	FM
S/N Ratio	>105dB
T.H.D	<0.5%@1KHz
Sensitivity	1.2/UV@S/N=12dB
Power Supply	DC 14V 800mA
Audio Output	Independence: 0-400mV Mixed Style: 0-300mV

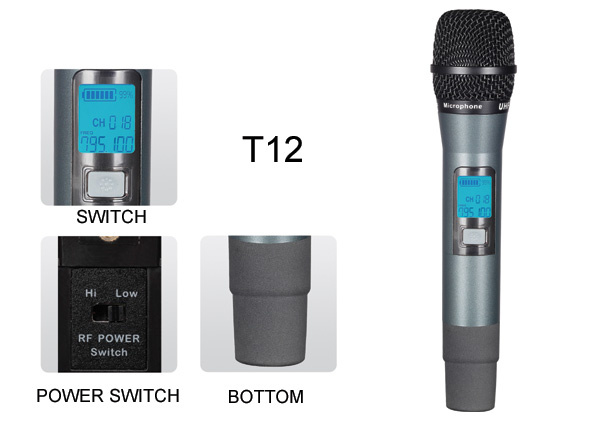

Transmitter
Oscillation Mode	PLL Synthesized
Carrier Frequency Range	UHF 730-850 MHz
Frequency Stability	±25KHz
Power Supply	DC 3V (1.5V AA*2)
Power Consumption	100mA
S/N Ratio	>105dB
F/N Ratio	>80dB
Dynamic Range	≥100dB
Type	Condenser / Dynamic
Polar Mode	Super Heart-Shaped Directivity
Frequency Response	40Hz – 20KHz
Sensitivity	-47±3dB@1KHz
Temperature Range	-10ºC - +40ºC

Li Chuang Sound Equipment Factory is located in Enping city--the base of microphone production of China, Guangdong Province. Our company is founded in 2006. We are a high-tech enterprise which combined with the design, development, production, sales and after-sale service. Our company specializing in the production of wireless microphones, wireless receiver and other sound equipment etc.

Our professional technology is leading in the same industry. Through several years of unremitting efforts, our company had developed more than 30 products, and gained many national patents. Our products are hot-selling domestic and abroad. The quality of our products has got the affirmation from customers.

Our company has a mature experience of OEM and ODM. We take"Technique Advanced, Explore Bravely, Quality First and Customers Superior"as the principle to provide the best products and service for customers. We sincerely welcome the worldwide clients to consult the cooperation and create mutually beneficial business relationship in the future.
