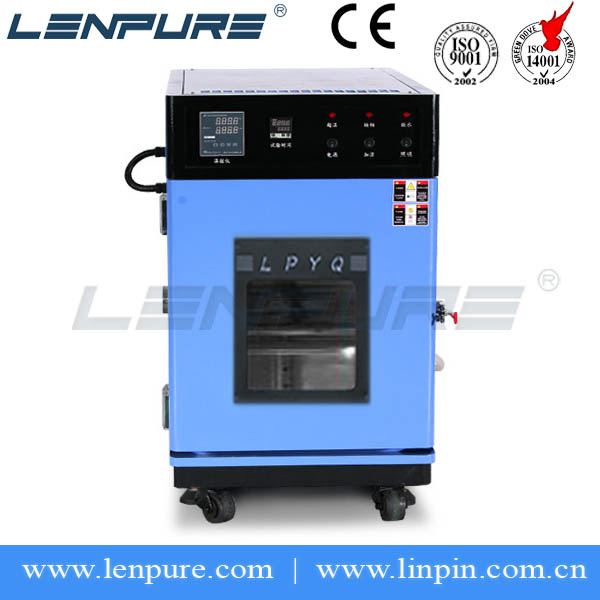

Constant Temperature and Humidity Test Instrument(LRHS-225-ES)
Constant Temperature and Humidity Test Box can simulate various of temperature and humidity environment, which is applicable to detecting electronic, automobile, rubber, plastic, metal and other products in a variety of adverse circumstances, such as parameters of reliability and stability. It will be made available to you to predict and improve the basis of product quality and reliability.
Product Specification:
Model Number: LRHS-225-ES
Place of Origin: Shanghai, China (Mainland)
Brand Name: LENPURE
Power: Electronic
Usage: Temperature& Humidity test chamber
Size: 500*600*750mm
Humidity range: 30%~98% RH
Temperature range: 0 ° C -150° C
Temperature decrease rate: 0.7~1.0° C /min
Temperature increase rate: 1.0~3.0° C /min
Humidity deviation: +2 -3% RH
Temperature Uniformity/fluctuation: ± 2 ° C / ± 0.5° C
Power supply requirements: AC380V± 10% 50± 0.5Hz three phase four wire system
Materials: 1. Material of outer case: The housing is processed and formed with high-quality (t=1.2mm) A3 color plates through CNC machine with surface sprayed with plastics, looking smoother and more artistic;
2. Material of inner case: Imported high-grade stainless steel (SUS304);
3. Insulation material: High-density glass fiber cotton with thickness of 100mm;
4. Insulation material of door: Glass fiber cotton
Display:
1. Introduces imported original Japan UNIQUE temperature and humidity controller, 7 HD true color LCD touch display to bring you dignity and comfort in touch and vision. 2. Real-time monitoring (Monitor the real-time data of the controller, status of signal point and actual output status)
Temperature sensor: PT100 platinum resistance thermometer
Control method:
Balance temperature and humidity adjusting method
Temperature and humidity control introduces the same channel
Coordination control method of P. I. D + S. S. R system.
Have the function of automatic calculus, and can revise temperature & humidity
Change conditions to realize more accurate and stable temperature & humidity control.
Management Certification: CE; ISO 9001: 2000; ISO: 14001: 2004
|
Model |
LRHS-101-ES |
LRHS-225-ES |
LRHS-504-ES |
LRHS-800-ES |
LRHS-1000-ES |
|
|
Volume (Unit: L) |
101 |
225 |
504 |
800 |
1000 |
|
|
Dimension of Working Room (mm) |
450× 450× 500 |
500× 600× 750 |
700× 800× 900 |
800× 1000× 1000 |
1000× 1000× 1000 |
|
|
|
|
Overall Dimension(mm) |
1200× 750× 1050 |
1250*900*1300 |
1450× 1100× 1450 |
1550× 1300× 1550 |
1750*1300*1550 |
|
|
|
|
Power |
Power |
|
|
Usage |
Temperature& Humidity test chamber |
|
|
Humidity range |
30%~98% RH |
|
|
Temperature range |
0C-150° C |
|
|
Temperature decrease rate |
0.7~1.0° C/min |
|
|
Temperature increase rate |
1.0~3.0° C/min |
|
|
Humidity deviation |
+2 -3% RH |
|
|
Temperature Uniformity/Fluctuation |
± 2C/± 0.5° C |
|
|
|
|
Power supply requirements |
AC380V± 10% 50± 0.5Hz three phase four wire system |
|
Shanghai Linpin Instrument Stock Co., Ltd is dedicated to the design, manufacture and service of environment test cabinets, chambers and rooms. Our product line includes temperature, humidity, shock, ozone, sulfur dioxide, dust, salt spray (corrosion), solar (UV), rain, dry, stability and vibration test equipment. Our products can be provided in either standard modules or fully customized modules. With an annual business expansion rate of over 50 percent in average, our company is indeed a very robust entity in environment test equipment industry. Our companystarted as a test equipment industry pioneer and we always perform as a pioneer to support our customers with the most suitable and valuable products and services.
