Product Specifications
| Prod Model: |
LRHS-800-LJS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Temperature Rising Rate: |
1.0-3.0/Min |
| Meter: |
Touch Screen |
| Temperature Range: |
-70~150c |
| Interior Size(D*W*H): |
800*1000*1000mm |
| Overall Size(D*W*H): |
1550*1600*2250mm |
| Humidity Range: |
30%~98% Rh |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
| Type: |
High and Low Temperature Test Chamber |
Product Description

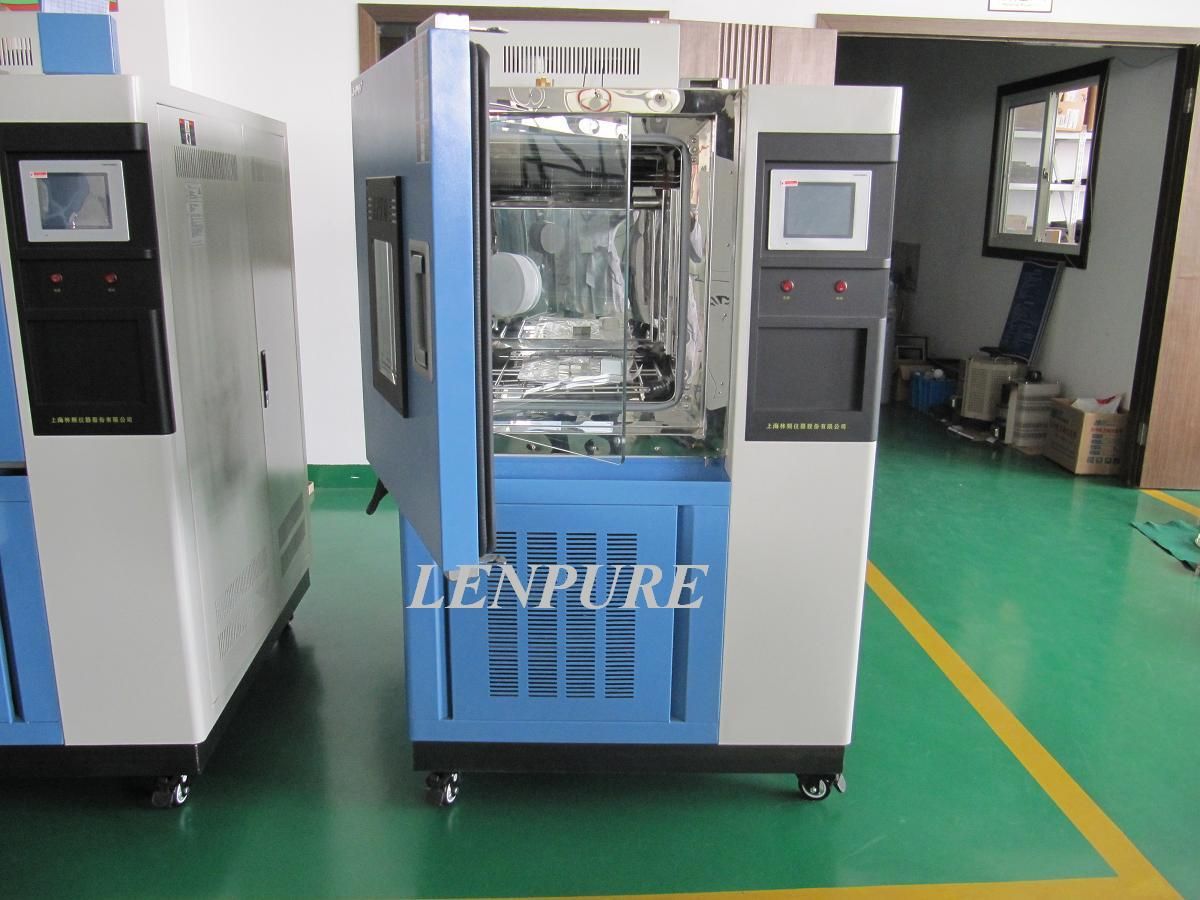

Lenpure Analysis Instruments Temperature and Humidity Chamber
Usage:
Programmable high low temperature& humidity alternating test chamber is the must-have test equipment for aircraft industry, automobile industry, home appliance industry and scientific research field. It can be used to test and determine the parameters and performance of electrical, electronic products and materials upon change of the temperature and humidity environment in high-temperature, low-temperature or constant tests.
Product Specification:
Place of Origin: Shanghai, China (Mainland)
Brand Name: LENPURE
Model Number: LRHS-800-LJS
Power: Electronic
Usage: Temperature& Humidity test chamber
Interior Size(D*W*H): 800*1000*1000mm
Overall Size(D*W*H): 1550*1600*2250mm
Humidity range: 30%~98% RH
Temperature range: A: -20C-150C B: -40C-150C C: -60C-150C D: -70C-150C
Temperature decrease rate: 0.7~1.0C/min
Temperature increase rate: 1.0~3.0C/min
Humidity deviation: +2 -3% RH
Temperature Uniformity/fluctuation: ± 2C/± 0.5C
Power supply requirements: AC380V± 10% 50± 0.5Hz three phase four wire system
Display (Touch Screen Meter):
Introduces imported original Japan UNIQUE temperature and humidity controller, 7"HD true color LCD touch display to bring you dignity and comfort in touch and vision
USB enter port: The chamber has USB enter port, can connect with computer directly
Uploading programs to the controller from a USB flash dish and download data to a USB flash disk.
Management Certification: CE; ISO 9001: 2000; ISO: 14001: 2004; CE.
|
Model |
LRHS-101B-LJS |
LRHS-225B-LJS |
LRHS-504B-LJS |
LRHS-800B-LJS |
LRHS-010B-LJS |
|
Dimension of Working Room (mm) |
450×450×500 |
500×600×750 |
700×800×900 |
800×1000×1000 |
1000×1000×1000 |
|
Overall Dimension(mm) |
1200×1000×1650 |
1300×1150×1900 |
1450×1400×2100 |
1550×1600×2250 |
1850×1600×2250 |
|
Temperature range |
A:-20C~150 C B:-40 C~150 C C:-60 C~150 C D:-70 C~150 C |
|
Humidity |
30~98%RH |
|
Volatility/Uniformity |
≤0.5degree/≤2 degree |
|
Humidity deviation |
+2 -3%RH |
|
Temperature increase rate |
1.0~3.0 degree /min |
|
Temperature decrease rate |
0.7~1.0 degree /min |
|
Display |
Imported original Japan UNIQUE temperature and humidity controller |
|
Accuracy range |
Setting accuracy: Temperature0.1 degree.Humidity1%RH |
|
|
Indication accuracy: Temperature0.1 degree.Humidity1%RH |
|
Controller: Imported original Japan UNIQUE temperature and humidity controller |
Shanghai Linpin Instrument Stock Co., Ltd is dedicated to the design, manufacture and service of environment test cabinets, chambers and rooms. Our product line includes temperature, humidity, shock, ozone, sulfur dioxide, dust, salt spray (corrosion), solar (UV), rain, dry, stability and vibration test equipment. Our products can be provided in either standard modules or fully customized modules. With an annual business expansion rate of over 50 percent in average, our company is indeed a very robust entity in environment test equipment industry. Our companystarted as a test equipment industry pioneer and we always perform as a pioneer to support our customers with the most suitable and valuable products and services.
