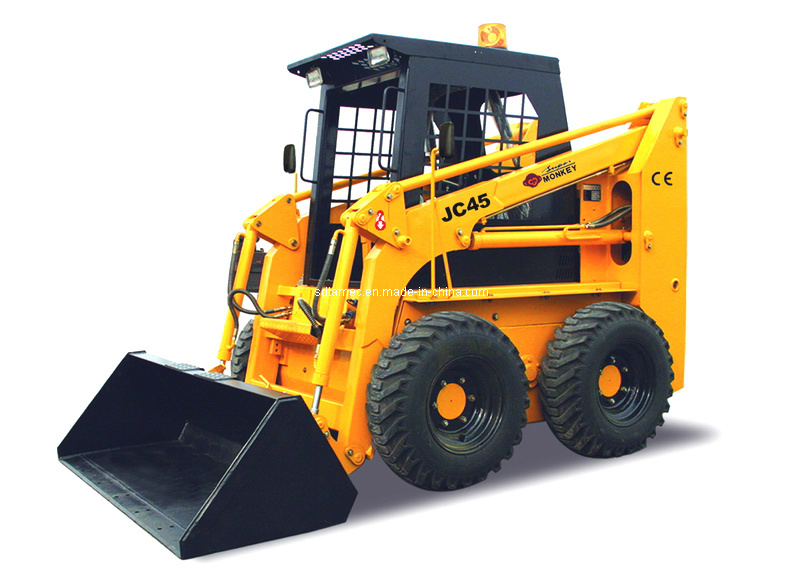

Construction Machinery, Bobcat, Small Loader, Mini Loader, Loading Capacity Is 700kg, Engine Power Is 50HP Skid Steer Loader (JC45)
Product Specifications
Prod Model: |
JC45 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Compact Structure, Maneuverable Movement: |
Suitable for Narrow Space Operation |
Type: |
Skid Steer Loader |
Certification: |
ISO9001: 2000 |
Walking Mode: |
Wheeled |
Condition: |
New |
Load And Unload Method: |
Front Discharge |
Scraper Type: |
Wheel Type |
Product Description
Usa hydraulic system
Famous chinese diesel engine (hyundai,perkins,yanmar engine for option)
Open cabin with mechanical control system
Double accelerograph control

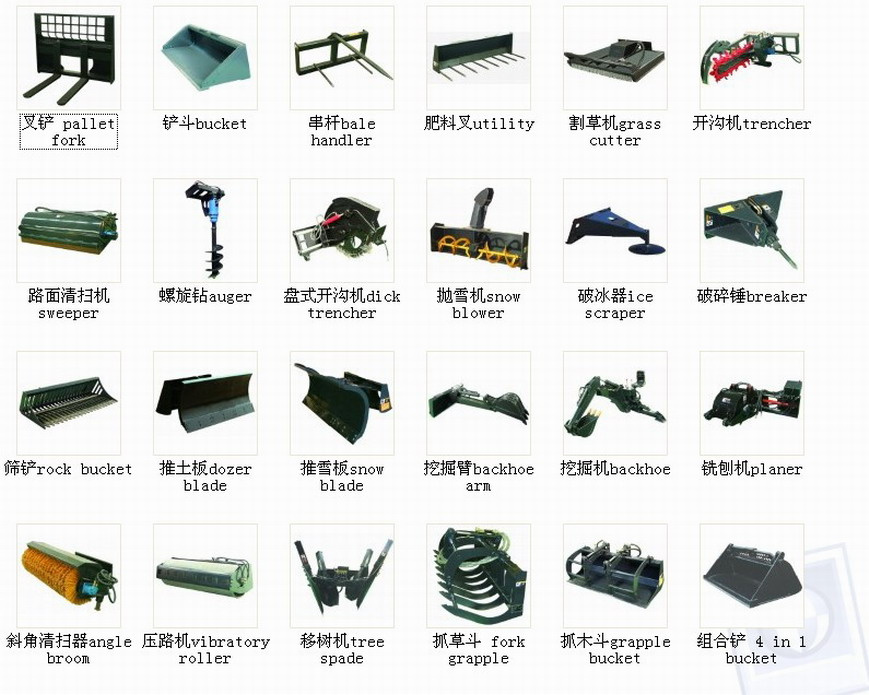

Multi-function with a wide range of attachments
Hydraulic brake


Item | Description | Item | description |
Rated operating capacity(kg) | 700 | Hinge pin height (mm) | 2900 |
Tipping load (kg) | 1400 | Total height (mm) | 2050 |
Bucket capacity(m3) | 0.4 | Length with bucket (mm) | 3420 |
Hydraulic pump flow (L/min) | 75 | Length without bucket(mm) | 2640 |
Engine power (hp) | 50 | Width with bucket (mm) | 1740 |
Weight(kg) | 3100 | Track width (mm) | 1450 |
Max travel speed (km/h) | 12 | Wheelbase (mm) | 991 |
Grade ability | 2 0 | Ground clearance (mm) | 185 |
Tire | 10-16.5 | Dumping angle | 40 |
Fuel/hyd oil capacity (L) | 60/60 | Dumping height (mm) | 2230 |
Height at maximum extension | 3670 | Maximum reach (mm) | 710 |
Taian Tamec Imp. & Exp. Co., Ltd is one of subsidiary company of Shandong New Juling Group, which is a professional and leading manufacturer and exporter of compact skid steer loaders in east of China. Since 1993, we have always been focusing on R & D and manufacturing of various different construction machineries such as: Skid steer loaders, Wheel Loaders, Track Loaders, Hydraulic products, Pumps and other machineries.
Over the years, we insist on providing high quality products with competitive prices, fast delivery, flexible designs, prompt responses and good after-sale services as well. The advanced technology, modern design, experienced technical experts, purchasing the main parts internationally assure the machineries to be high quality with competitive prices, which is also given high evaluation in the same industry. We keep on setting up and performing the Quality Guarantee System and runs the Quality Control through the whole producing process. With the core concept of "INNOVATION. INTEGRITY, FRIENDSHIP, KEEPING AHEAD", our company gradually establishes the comparable advantage in "independent innovation, lean production, international trade, and integrity management", and forms the core competence.
Skid steer loaders series are the main products line in our developing concepts. On the basis of the imported advanced technology from abroad, we have made innovative design continuously and gradually developed JC45, JC60, JC70 series of skid steer loaders and dozens of job-matched attachments. We are the earliest company that gained the patents for skid loaders in China. Our products adopt the technology of hydrostatic transmission and attachment mounting system with quick joints, which help the machines to form many advantages, such as: Infinitely variable speeds, turn within its own length, versatility, maneuverability, and simplified operation and easy maintenance. Equipped with different kinds of attachments, the products can fulfill such functions as loading, digging, bulldozer, drilling, ditching, pounding, grappling, forking, crushing and more. Featured with compact structure, smart movement, convenient operation, high efficiency and multifunction, they are competent for the work in narrow space or situations and commonly used in agriculture, construction and general industry etc.
With the rapid development, our products have been exporting to Europe, South America, Southeast Asia, Middle East and so on, and have gained high reputation from customers. We sincerely welcome all friends from all over the world to cooperate with us in the near future.
