Product Specifications
| Prod Model: |
TS100 COMPACT TRACK LOADER |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East |
| Type: |
Skid Steer Loader |
| Walking Mode: |
Crawler |
| Load And Unload Method: |
Front Discharge |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
Product Description

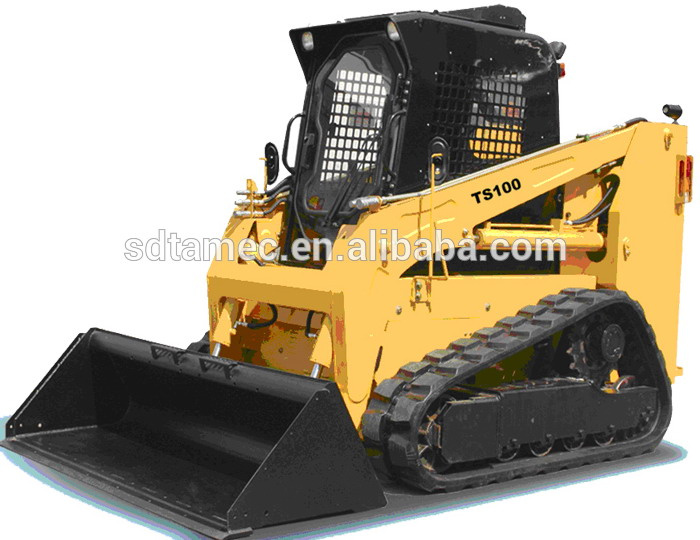

TS100 COMPACT TRACK LOADER, Compact structure, maneuverable movement suitable for narrow space operation
Rated Load: 1200kg
Open cabin with joystick control system
UNIQUE RUBBER TRACK UNDERCARRIAGE DELIVERS LOW GROUND PRESSURE SO YOU CAN WORK ON SENSITIVE SURFACE AND IN SOFT UNDERFOOT CONDITIONS
100hp TURBO-CHARFED DEUTZ ENGINE AND STRONG PERFORMANCE
TWO SPEED OPTION IS AVAILABLE FOR HIGHER TRAVEL SPEEDS FROM ONE WORKSIDE TO ANOTHER
SPACIOUS,DELUXE SEALED CAB FOR YOUR OPTION
AN AIR RIDE SEAT KEEP YOU CONFORTABLE
Strong. Compact. Maneuverable. Compact profile design, makes this a great performer for its size and the tight, It's perfect for a variety of applications such as construction, landscaping, excavating, fertilizer plants, foundries and much more. Also, The versatile quick-tach system similar with BOBCAT or other brands, provides fast, secure attachment changes.
The imported original PERKINS or Cummins brand diesel engine, with the emission standard of EU STAGE IIIA, deliver lots of muscle, lift capacity, lift height and travel speed. Powerful diesel engines produce plenty of traction and breakout force for excavating and handling large loads.
air conditioner option available
MAXIMIZE YOUR PRODUCTIVITY
TS100 compact track loaders boost productivity with increased power and torque, pilot controls, a new cab, increased visibility, industry-first side lighting, and improved reliability and serviceability. They feature a dozer-style undercarriage, robust chassis design, great flotation and low ground pressure.
Featuring a clean-burining engine, the Compact Track Loader is sure to impress. Pilot controls are now standard and available. A new cab with standard suspension seat offers improved visibility and ergonomics. Operators will appreciate the increased headroom, wider lap bar and improved forward, side, rear and overhead visiblity. Exclusive exterior side lighting provides excellent all-around visibility for nighttime operation.
Steel embedded, dozer-style tracks roll on rubber instead of steel for a longer-lasting track and smoother ride.
a full line of attachments and accessories designed specifically to fill your needs and to make your TS100 Track Loader the most versatile machine on your job site.
High horsepower and powerful hydraulic systems provide pressure and flow to power virtually any attachment
Hydraulic self-leveling action keeps buckets, pallet forks and other attachments level during lifting actions
FEATURES:
？ Imported REXROTH Hydaulic system
？ Luxury Enclosed Operator Cabin
？ Powerful diesel engine
？ standard equipped Joystick control system makes it easy to operate
？ interchangeble attachments with other famous brands of Bobcat, Case, Caterpilla, Newholland etc
？ Rated operating Capacity:1200kg; Bucket capacity:0.55m³
？ Steel embedded, dozer-style tracks roll on rubber instead of steel for a longer-lasting track and smoother ride.
OPTIONAL:
？ Air conditioner
？ Original Perkins engine
？ 2-SPEED system
？ High-flow auxiliary hydraulic system
？ A couple of job-matched attachments
SPECIFICATIONS:
OPERATING WEIGHT | 3500KG |
| RATED OPERATIONG CAPACITY | 1200KG |
| TIPPING LOAD | 2400kgs |
| ENGINE TYPE | DIESEL, 4CYCLE, WATER COOLED |
| ENGINE MAKE & MODEL | YIQI-Deutz 498T |
| ENGINE POWER | 100HP |
|
|
| TRACK WIDTH | 1710mm |
| WIDTH WITH BUCKET | 2030mm |
| HEIGHT AT MAXIMUM EXTENSION | 4070mm |
| MAXIMUM REACH | 700mm |
| TRAVEL SPEED |
12km/h
18km/h (2-SPEED) |
FUEL TANK VOLUME | 90L |
| WORK FLOW |
88L/Min
122L/Min (HIGH-FLOW) |
LIFT HEIGHT (HINGE PIN) | 3150mm |
| GRADE ABILITY | 20° |
| DUMPING HEIGHT | 2450mm |
| DUMPING ANGLE | 40 degree |
| GROUND CLEARANCE | 200mm |
| CYLINDER FOR BUCKET TILT | 2 nos. |
| OVERALL L*w*H mm | 3700*2030*2160 |
| Enclosed Operator Cab | STANDARD |
| HYDRAULIC CONTROL SYS. | STANDARD |
| AIR CONDITIONER | OPTIONAL |
| Original PERKINS Engine | OPTIONAL |
| 2-SPEED system | OPTIONAL |
| High-flow auxiliary hydraulic system | OPTIONAL |
Packaging & Shipping
Packaging Detail: | 2units in one 20 feet container, 4units in one 40 feet container |
| Delivery Detail: | 20-30days |
Taian Tamec Imp. & Exp. Co., Ltd is one of subsidiary company of Shandong New Juling Group, which is a professional and leading manufacturer and exporter of compact skid steer loaders in east of China. Since 1993, we have always been focusing on R & D and manufacturing of various different construction machineries such as: Skid steer loaders, Wheel Loaders, Track Loaders, Hydraulic products, Pumps and other machineries.
Over the years, we insist on providing high quality products with competitive prices, fast delivery, flexible designs, prompt responses and good after-sale services as well. The advanced technology, modern design, experienced technical experts, purchasing the main parts internationally assure the machineries to be high quality with competitive prices, which is also given high evaluation in the same industry. We keep on setting up and performing the Quality Guarantee System and runs the Quality Control through the whole producing process. With the core concept of "INNOVATION. INTEGRITY, FRIENDSHIP, KEEPING AHEAD", our company gradually establishes the comparable advantage in "independent innovation, lean production, international trade, and integrity management", and forms the core competence.
Skid steer loaders series are the main products line in our developing concepts. On the basis of the imported advanced technology from abroad, we have made innovative design continuously and gradually developed JC45, JC60, JC70 series of skid steer loaders and dozens of job-matched attachments. We are the earliest company that gained the patents for skid loaders in China. Our products adopt the technology of hydrostatic transmission and attachment mounting system with quick joints, which help the machines to form many advantages, such as: Infinitely variable speeds, turn within its own length, versatility, maneuverability, and simplified operation and easy maintenance. Equipped with different kinds of attachments, the products can fulfill such functions as loading, digging, bulldozer, drilling, ditching, pounding, grappling, forking, crushing and more. Featured with compact structure, smart movement, convenient operation, high efficiency and multifunction, they are competent for the work in narrow space or situations and commonly used in agriculture, construction and general industry etc.
With the rapid development, our products have been exporting to Europe, South America, Southeast Asia, Middle East and so on, and have gained high reputation from customers. We sincerely welcome all friends from all over the world to cooperate with us in the near future.
