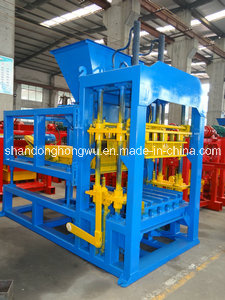

Product Specifications
| Prod Model: |
QT6-15B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Processing: |
Brick Production Line |
| Method: |
Hydraulic Pressure |
| Product: |
Brick |
| Brick Raw Material: |
Concrete |
| Automation: |
Automatic |
| Tolerance: |
0.5mm |
| Condition: |
New |
| Brick: |
Hollow/ Solid/ Paver/Curbstone/Overlock |
| PLC: |
Simens |
| Motor: |
Simens |
| Type: |
Concrete Iron Molding Machinery |
| Certification: |
ISO9001: 2000, ISO 9001:2000 |
Product Description
Techincal Parameter:
| Overall Dimension | 7100*1500*3000mm |
| Rated Pressure | 16MPa |
| Main Vibration Form | Platform vibration |
| Cycle Time | 15-25 seconds |
| Vibrating Frequency | 4500 -5100 rolls/minute |
| Motors Power | 31.25KW |
| Pallet Size | 850*680mm |
| Raw Materials | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
| Applied Products | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
| Applied Fields | widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc. |
Productivity:
| Bricks | Size | QTY/Mould | Cycle Molding | Per Hour | Per Day (10hours) |
|
| Hollow brick | 400*200*200 | 6 | 15-20s | 1080-1440pcs | 10800-14400pcs |
| Porous brick | 240*115*90 | 15 | 15-20s | 2700-3600pcs | 27000-36000pcs |
| Standard brick | 240*115*53 | 30 | 15-17s | 6352-7200pcs | 63520-72000pcs |
| Paver | 220x110x50 | 15 | 20-25s | 2160-2700pcs | 21600-27000pcs |
Features & Advantages:
1.The machine can serve several purposes and can produce pavement bricks, riverside bricks, revetment bricks ,square bricks ,grassed bricks and so on with different moulds.
2.Low frequency in feeding material, high frequency vibration. Platform vibrating works together with mould, So that the concrete can be fully fluidified and exhausted in two or three seconds to reach the high density.
3.The advanced technique of hydraulic-controlled proportion can handle the oil press and amount of the system freely,therefore ,different materials can be able to produce the high quality products.
4.All the procedures are operated by PLC and equipment with out and in date device to realize person-machine conversation. Control system also including the advanced safe logical system and fault diagnosis system.
