Conveyor Belt Separator for Handling Cement
Product Specifications
| Prod Model: |
RCDD-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Belt Width: |
1000mm |
| Standard Erection Height: |
260mm |
| Cold Power: |
2.9kw |
| Duty Cycle: |
100% |
| Unload Trigger Specification: |
2.7 |
| Driving Motor Power: |
2.2kw |
| Size(L*W*H): |
2900*1480*625mm |
| Magnetic Intensity Field: |
700GS |
| Mass: |
2000kg |
| Application: |
Remove Iron Impurities From Non-Magnetic Material |
| Type: |
Magnetic Separator |
| Weight: |
2T |
| Color: |
Red |
| Certification: |
ISO9001:2008 |
| Customized: |
Customized |
| Warranty: |
1 Year |
| Condition: |
New |
| Voltage: |
DC-110 |
Product Description

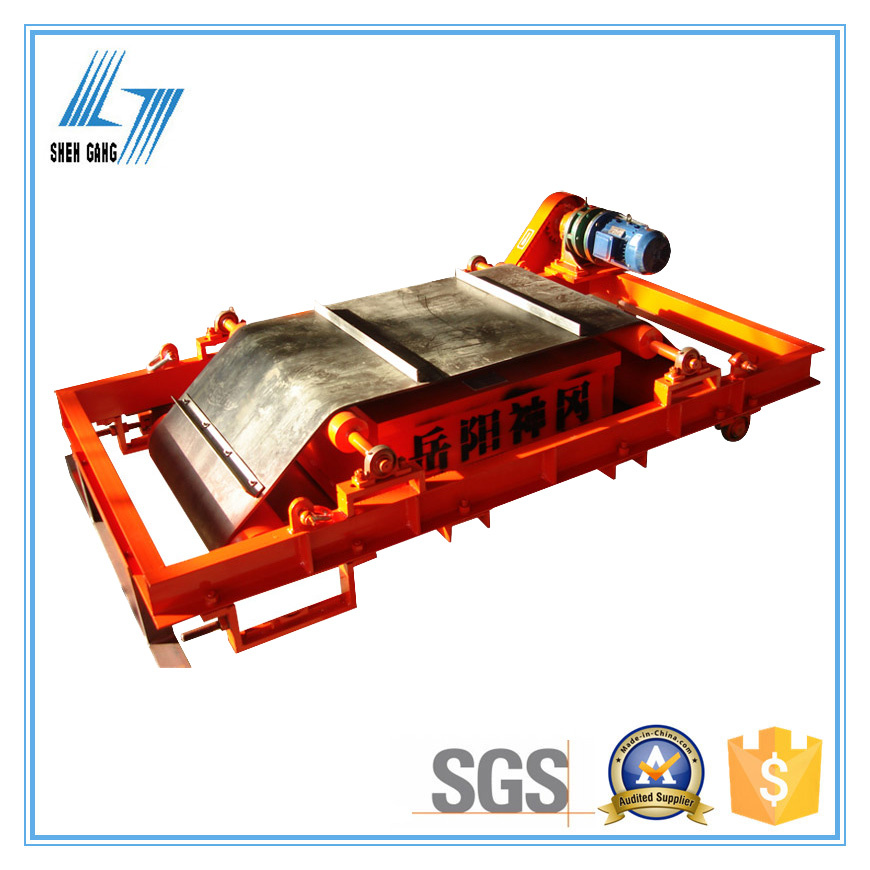

Conveyor Belt Separator For Handling Cement
Introduction:
It is used to clean metal tramp iron, such as nails, bolts, staples and metal debris, from non-magnetic metarials in conveyor system, to protect conveyor, crusher, hammer mill and other process equipment downstream from damage.
It is suspended crossly over the belt conveyor, with rectification control equipment to rectify AC into DC, supplying power for the coil to generate a suitable magnetic field, and capture ferrous impurities. Capture and discharge of magnetic impurities are operated by the control equipment, no need manual operation.
Features:
-Half sphere shaped magnetic field;
-Long-term working shift;
-Unload tramp iron into the tramp iron box;
-Moving conveyor for unloading
-There are electromagnetic type RCDD series and permagnent magnetic type RCYD type (made of ferrite magnet or rare earth magnet neodymium iron boron).
Application:
1) Remove tramp iron from thick material layers and larger particles of mineral ores, coal, coke and limestone for purification of product or ingredient
2) Protect processing equipment such as crushers, pulverizers, conveyors, belts, screens, etc.

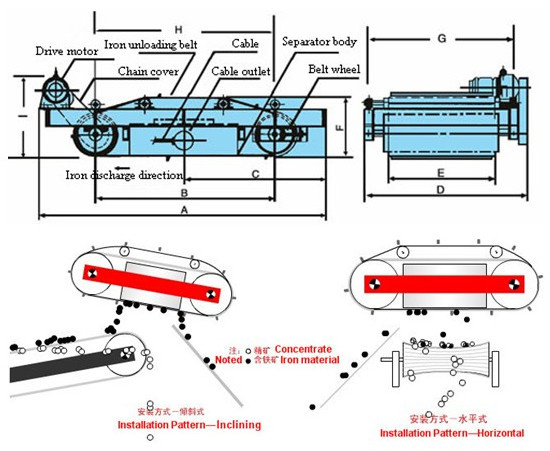

3) Recovery of steel from steelworks slag.Overall dimension drawing
Application photo

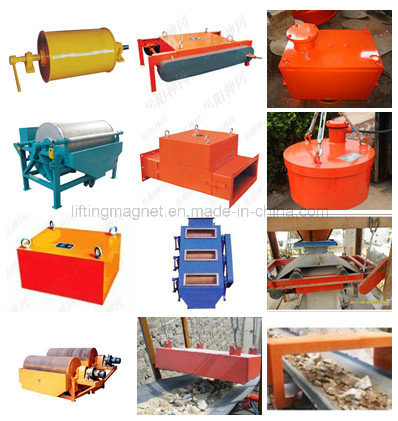

Magnetic Seprator Series:
--application for separating the magnetic material from non-magneic material in metallurgical ,mining,power,seaport,ceramic industry,etc.
About Inquiry:1.What is raw material on conveyor and how about material thickness?
2.The magnetic separator is hanging on the conveyor.So please inform us width and speed of the conveyor?
3.How about the handling capacity you require? and the separation material size?
4.Kindly tell us your power supply information.
| Model | Belt Width (mm) | Standard erection height(mm) | Rated voltage (V) | Cold power (kw) | Overall dimension(mm) | Unload trigger specification | Mass(kg) | Driving motor power(kw) |
| A | B | C | D | E | F | G | H | I |
| RCDD-5 | 500 | 160 | DC-110 | 1.03 | 2300 | 1330 | 1100 | 914 | 500 | 520 | 710 | 850 | 720 | 2.7 | 1074 | 1.5 |
| RCDD-6 | 650 | 170 | 1.4 | 2400 | 1400 | 1150 | 1068 | 650 | 520 | 860 | 928 | 720 | 2.7 | 1160 | 1.5 |
| RCDD-8 | 800 | 250 | 2.6 | 2750 | 1600 | 1360 | 1270 | 800 | 580 | 1065 | 1100 | 782 | 2.7 | 1470 | 2.2 |
| RCDD-10 | 1000 | 260 | 2.9 | 2900 | 1770 | 1465 | 1480 | 900 | 625 | 1165 | 1200 | 768 | 2.7 | 2000 | 2.2 |
| RCDD-12 | 1200 | 310 | DC-220 | 4.2 | 3200 | 2000 | 1590 | 1680 | 1000 | 625 | 1375 | 1400 | 782 | 3.3 | 2700 | 2.2 |
| RCDD-14 | 1400 | 360 | 5.38 | 3460 | 2310 | 1680 | 1853 | 1200 | 673 | 1584 | 1650 | 886 | 3.3 | 4200 | 4 |
| RCDD-16 | 1600 | 410 | 8.2 | 3800 | 2620 | 1850 | 1990 | 1400 | 725 | 1780 | 1920 | 945 | 4.1 | 6020 | 4 |
| RCDD-18 | 1800 | 460 | 9.8 | 3850 | 2700 | 1950 | 2250 | 1600 | 675 | 1930 | 1900 | 1050 | 4.1 | 8260 | 4 |
| RCDD-20 | 2000 | 510 | 11.6 | 4400 | 3000 | 2100 | 2420 | 1800 | 710 | 2087 | 2100 | 1072 | 6.8 | 10500 | 5.5 |
| RCDD-22 | 2200 | 550 | 22.5 | 4600 | 3400 | 2250 | 3000 | 2000 | 850 | 2700 | 2100 | 1320 | 16 | 15500 | 5.5 |
| RCDD-24 | 2400 | 570 | 25 | 4800 | 3200 | 2450 | 3200 | 2200 | 1000 | 3000 | 2300 | 1380 | 16 | 17500 | 7.5 |
Yueyang Shengang Lifting Electromagnet Co., Ltd., You Best Supplier:
1. Reliable manufacturer with 12 years experience
2. Mature technique and experienced workers
3. 100% good quality and Competitive prices
4. Authorized certificates like SGS and ISO9001
5. Thoughtful customer service within 24 hours
6. Fast and safe delivery
YueYang ShenGang Lifting Electromagnet Co, . Ltd located in Junshan Industrial Park, Yueyang city, Hunan province, which is a one of the electromagnet equipment manufacturer with the largest scale and the most complete product range in China. ShenGang integrates its functions with scientific research and development, engineering design, production and commission service. ShenGang is a high and new technology enterprise in Hunan province and has obtained ten national patents successively. Such as Power-cut Magnetic Sustaining Microcomputer Automatic Distribution Iron System, Electromagnetic Stirring System With Complete Set Of Control System, Multi-functional Lifting Electromagnet. The main products are widely applicable to metallurgy, electricity, mine, coal, chemical industry, building materials, cement, refractory materials, papermaking, glass industry and hoisting and conveying industry, which also have good sell to Japan, East Asia countries and some region of Europe, America and Southeast Asia.
ShenGang has been enjoying the support and cooperation of many scientific research institutions and numerous customers at home and abroad for recent years. It also has many years of experiences for researching, developing and manufacturing. It adopts up-to-date designing method and exquisite technology to provide the customers with the most advanced technology of superior products and perfect service. The main products include lifting electromagnet series, electromagnetic iron separator series, permanent-magnetic iron separator, commutation controlling unit series, cable reel series, electromagnetic stirrer series, permanent-magnet lifter, metal detector, magnetic drum separator, high and low voltage frequency conversion speed regulating system, and constant voltage water supply system.
ShenGang will continuously open up and make innovations under the enterprise spirit of being pioneering and innovative, pragmatic, solidarity and hard work, top -notch, concerned before our customers else and enjoy ourselves after our customers find their joys. To strive to develop and expand in the keen market competition, to become the world' S electromagnetic industry a new aircraft carrier.
Enterprise Tenet: Technology works, Customer first, People oriented, Win-win cooperation
