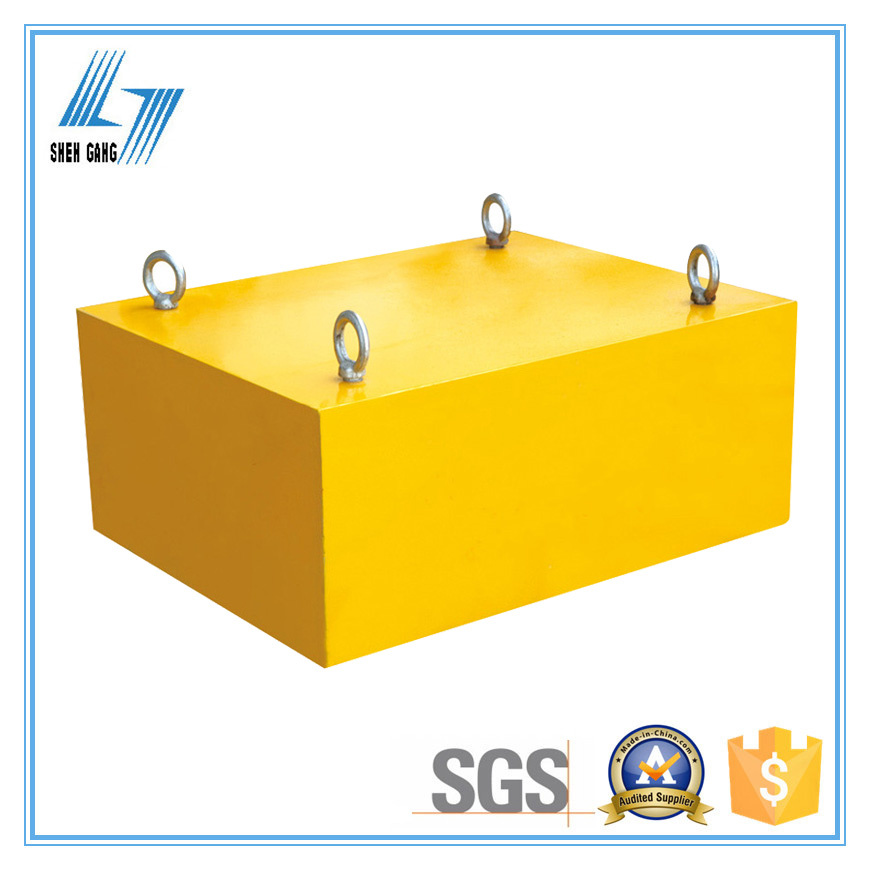

Handy Permanent Magnetic Separator (RCYB-8)
Product Specifications
| Prod Model: |
RCYB-8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Red |
| Belt Width: |
800mm |
| Rated Suspension Height: |
250mm |
| Overall Dimension: |
800*700*250mm(L*W*H) |
| Rated Magnetic Field Strength: |
700GS |
| Weight: |
580kg |
| Type: |
Permanent Magnet Type |
| Application: |
Iron Removal From Non-Magnetic Materials on Belt C |
| Features: |
High Magnetic Field Intensity |
Product Description
Handy Permanent Magnetic Separator RCYB Series
Introduction:
RCYB series is suspended over conveyor belt.It is suitable for continuous-duty occasions and remove 0.1-30kg of ferromagnetic material which mixed in the raw material. This equipment has a high magnetic field intensity,no energy consumption and a long service life. It is easy to install and use without maintenance. This equipment is widely used for the iron removal from non-magnetic materials on belt conveyors, vibrating conveyors, vibrating feeders, chutes, etc.
Handy Permanent Separator Features:
-- NdFeB magnets for magnetic source of reliable magnetic properties
-- In the depths of non-magnetic materials can absorb up 0.1-0.30kg iron
-- Core guaranteed 10 years under normal circumstances; Neverless than 5% demagnetization
-- Artificial regularly dumping iron, and is of small size, light weight, easy installation features

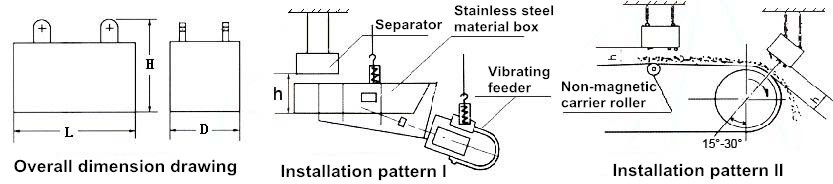

Overall dimension drawing:

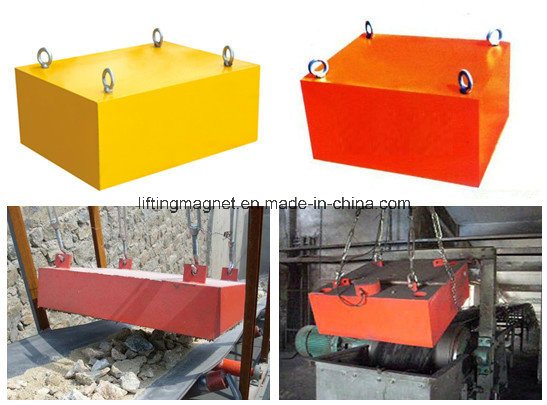

Product Picture:

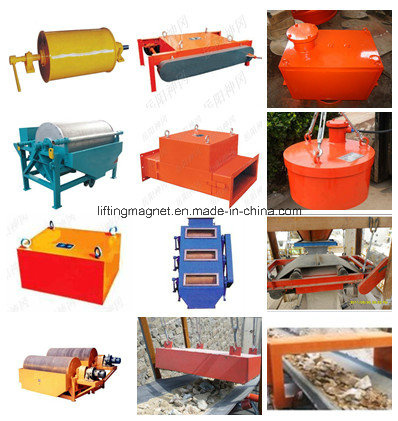

Magnetic Seprator Series:
--application for separating the magnetic material from non-magneic material in metallurgical ,mining,power,seaport,ceramic industry,etc.
Standard Export Package:
Angle steel welded frame and are fixed with five-layer plywood around the outside to keep safety long-distance transportation;Don't need to be fumigated.
Quick Response:
We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 24 hours.
Please fell free to call us at any time if there is any questions.
Convenient Transportation:
All available shipping ways could be applied, by courier,air or sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you till the goods arrive.| Model | Suitable belt width
(mm) | Standard erection height (h≤mm) | Material thickness(≤mm) | Magnetic field intensity(≥Gs) | Belt speed
(≤m/s) | Weight(Kg) | Overall dimension drawing(mm) |
| L | D | H |
| RCYB-4 | 400 | 130 | 80 | 630 | 2.5-4.5 | 115 | 400 | 300 | 210 |
| RCYB-5 | 500 | 150 | 100 | 630 | 180 | 500 | 400 | 230 |
| RCYB-6 | 600/650 | 180 | 130 | 630 | 300 | 600 | 500 | 250 |
| RCYB-6.5 | 650 | 200 | 150 | 650 | 450 | 650 | 600 | 250 |
| RCYB-8 | 800 | 250 | 200 | 70 | 580 | 800 | 700 | 250 |
| RCYB-10 | 1000 | 300 | 250 | 70 | 880 | 1000 | 800 | 250 |
| RCYB-12 | 1200 | 350 | 300 | 70 | 1100 | 1200 | 1000 | 270 |
| RCYB-14 | 1400 | 400 | 350 | 70 | 1700 | 1400 | 1300 | 270 |
| RCYB-16 | 1600 | 450 | 400 | 70 | 2200 | 1600 | 1500 | 270 |
| P:common type |
| RCYB-4P | 400 | 80 | 30 | 45 | 2.5-4.5 | 65 | 400 | 300 | 140 |
| RCYB-5P | 500 | 100 | 50 | 50 | 110 | 500 | 400 | 160 |
| RCYB-6P | 600/650 | 150 | 100 | 50 | 175 | 600 | 500 | 186 |
| RCYB-6.5P | 650 | 180 | 130 | 50 | 280 | 650 | 600 | 186 |
| RCYB-8P | 800 | 200 | 150 | 50 | 420 | 800 | 600 | 186 |
Yueyang Shengang Lifting Electromagnet Co., Ltd., You Best Supplier:
1. Reliable manufacturer with 12 years experience
2. Mature technique and experienced workers
3. 100% good quality and Competitive prices
4. Authorized certificates like SGS and ISO9001
5. Thoughtful customer service within 24 hours
6. Fast and safe delivery
YueYang ShenGang Lifting Electromagnet Co, . Ltd located in Junshan Industrial Park, Yueyang city, Hunan province, which is a one of the electromagnet equipment manufacturer with the largest scale and the most complete product range in China. ShenGang integrates its functions with scientific research and development, engineering design, production and commission service. ShenGang is a high and new technology enterprise in Hunan province and has obtained ten national patents successively. Such as Power-cut Magnetic Sustaining Microcomputer Automatic Distribution Iron System, Electromagnetic Stirring System With Complete Set Of Control System, Multi-functional Lifting Electromagnet. The main products are widely applicable to metallurgy, electricity, mine, coal, chemical industry, building materials, cement, refractory materials, papermaking, glass industry and hoisting and conveying industry, which also have good sell to Japan, East Asia countries and some region of Europe, America and Southeast Asia.
ShenGang has been enjoying the support and cooperation of many scientific research institutions and numerous customers at home and abroad for recent years. It also has many years of experiences for researching, developing and manufacturing. It adopts up-to-date designing method and exquisite technology to provide the customers with the most advanced technology of superior products and perfect service. The main products include lifting electromagnet series, electromagnetic iron separator series, permanent-magnetic iron separator, commutation controlling unit series, cable reel series, electromagnetic stirrer series, permanent-magnet lifter, metal detector, magnetic drum separator, high and low voltage frequency conversion speed regulating system, and constant voltage water supply system.
ShenGang will continuously open up and make innovations under the enterprise spirit of being pioneering and innovative, pragmatic, solidarity and hard work, top -notch, concerned before our customers else and enjoy ourselves after our customers find their joys. To strive to develop and expand in the keen market competition, to become the world' S electromagnetic industry a new aircraft carrier.
Enterprise Tenet: Technology works, Customer first, People oriented, Win-win cooperation
