Product Specifications
| Prod Model: |
DJA 400-1600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO; DIN; GB, Cema, ASTM, Ash |
| Belt Width: |
400mm ~ 1600mm |
| Belt Speed: |
0.8m/S ~ 3.15m/S |
| Conveying Capacity: |
28t/H ~ 2961t/H |
| Motor: |
Sew |
| Power: |
18.5kw ~ 550kw |
| Voltage: |
Requirement |
| Material Temperature: |
-25 ~ +40 Degrees |
| Instalation: |
Engineers to Guide |
| Maintance: |
Easy and Convenient |
Product Description

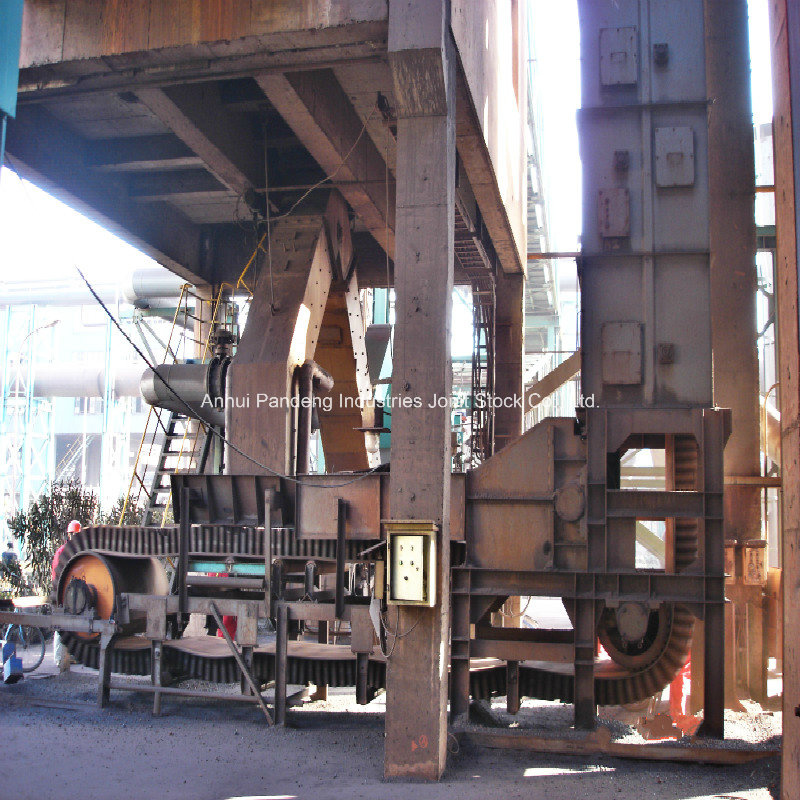

1. Outline:
DJA wave-shape apron belt conveyor is an ideal equipment for large inclination conveying. It adopts the conveyor belt made of special materials, which can convey special materials such as high temperature resistant material, acid and alkali resistant material, oil resistant material, etc.
2.Features:
(1)Large conveying capacity
(2)Large inclination conveying
(3)Reliable equipment performance
(4)Convenient maintenance
(5)Long service life
(6) Simple construction
(7) Small floor area
(8)Low operating cost
(9)easy realization of operation
3.Application:
DJA wave-shape apron belt conveyors are widely used in metallurgy, mining, coal, ports, power plants, building materials, chemicals, light industry, petroleum and other industries. It can transport various bulk material whose density is 500-2500kg/m³.
4.Parameters:
Belt width
(mm) |
h(mm) |
Max. conveying capacityQ(m3/h) |
Inclination angle β(°) |
Belt speed
V(m/s) |
Power
P(kW) |
| 400 | 60 | 28 | 30~90 | 0.8~2.0 | 1.5~18.5 |
| 80 | 54 |
| 120 | 94 |
| 500 | 80 | 78 | 30~90 | 0.8~2.0 | 1.5~18.5 |
| 120 | 104 |
| 160 | 130 |
| 650 | 80 | 118 | 30~90 | 0.8~2.0 | 1.5~30 |
| 120 | 156 |
| 160 | 210 |
| 800 | 120 | 248 | 30~90 | 0.8~2.5 | 2.2~75 |
| 160 | 340 |
| 200 | 370 |
| 1000 | 160 | 465 | 30~90 | 1.0~2.5 | 4.0~160 |
| 200 | 588 |
| 240 | 708 |
| 1200 | 160 | 702 | 30~90 | 1.0~3.15 | 5.5~250 |
| 200 | 788 |
| 240 | 1077 |
| 300 | 1292 |
| 1400 | 200 | 942 | 30~90 | 1.0~3.15 | 5.5~315 |
| 240 | 1329 |
| 300 | 1613 |
| 400 | 2457 |
| 1600 | 200 | 1118 | 30~90 | 1.0~3.15 | 5.5~500 |
| 240 | 1578 |
| 300 | 1934 |
| 400 | 2961 |

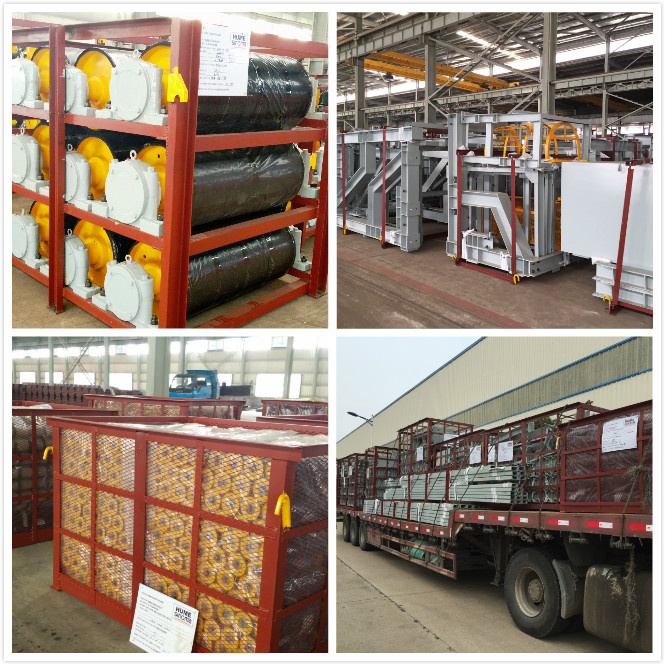

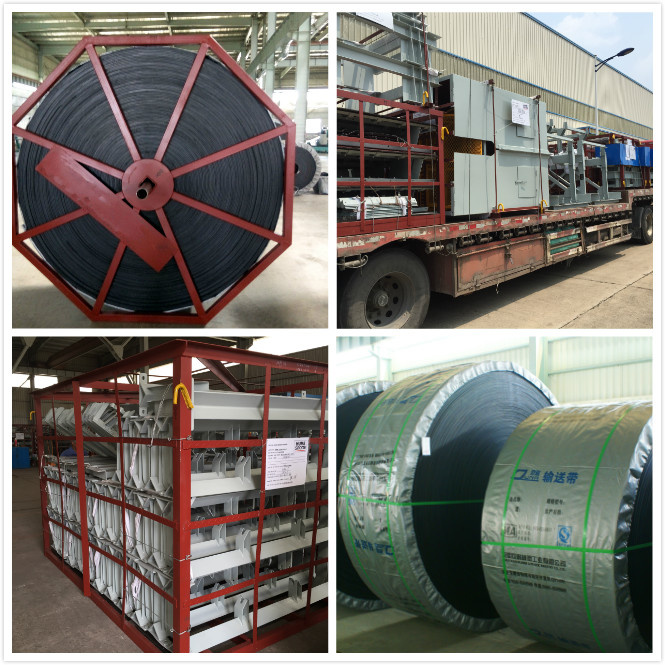

5.Packing for belt conveyor
Packaging Details: export packing, wooden cage , steel cage

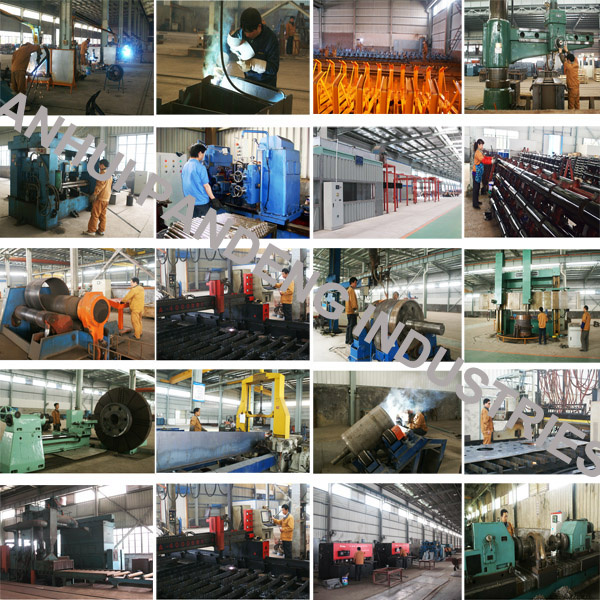

6.Manufacturing facilities
Anhui Pandeng Industries Joint Stock Co., Ltd belongs to Anhui Pandeng Group established since 1974, which has total capital of 106000000USD, registered capital of 58000000USD, catches the size of 463500 square meters, owns over 1000 workers. Group owns three famous brand of "PANDENG", "OUNA", "KINSON".
We are specialized in developing, designing, manufacturing bulk material handling system, like belt conveyor, pipe conveyor, bucket elevator, screw conveyor, conveyor roller, idler, pulley, hydraulic coupling, backstop, various kinds of conveyor belt etc nearly all products related to the conveyors. The products mainly applied to mining, metallurgy, power generation, heating, sea port, grain, chemical etc industries.
Our group has 5 subsidiary corporation, owns over 100 patents. Two sub-companies have attained ISO9001: 2008 Quality Management System Certificate, MA certified enterprises, Member of China Heavy Machinery Industry Association, Bank AAA credit class enterprise, China top 10 conveying machinery industries etc. During 40years, we served many Global 500 companies, such as SINOPEC, CNPC, APP, SHENHUA GROUP CORP, SGCC, Conch Group, CHALCO, Baosteel, etc.
Professional design, developing and manufacturing, installation&commissioning, after-service of Anhui Pandeng Group has helped us to win the China famous Bulk Material Handling system leading position. We also built stable and good cooperation relationship with over 30 Design&Research Institutes including Beijing lifting conveying machinery design&research institute.
Welcome to visit Anhui Pandeng Group!
