Product Specifications
| Prod Model: |
Various |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
B500 |
| Application: |
Coal |
| Certificate: |
ISO9001,ISO14000,CE |
| Testing: |
Supply |
| Installation: |
Under Our Engineer's Guide |
| Mining Object: |
Conveyor System |
| Spare Parts: |
We Offer |
| Design: |
by Professional Engineer |
| Technical Parameters: |
See Technical Table |
| Warranty Period: |
1 Year |
| Material: |
Stainless Steel |
| Material Feature: |
Fire Resistant |
| Structure: |
Belt Conveyor |
| Energy Saving: |
Energy Saving |
| Certification: |
CE |
| Customized: |
Customized |
| Warranty: |
1 Year |
| Condition: |
New |
| Type: |
Conveyor System |
| Color: |
as Your Request |
Product Description

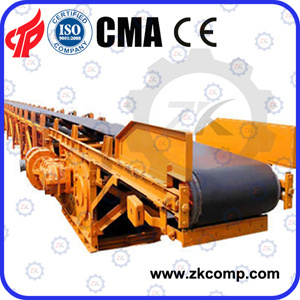

Belt Conveyor:
1. Reliable running
2. Nearly no maintenace
3. Large capacity
4. CE approvied
The Features of Belt Conveyor
According to the requirements about conveyor, this conveyor can make horizontal or oblique transportation by itself or combine with other conveyors.
There are no relative motion between materials and conveyor belt, the damage to materials can be avoid.
Conveying is smooth and steady.
Low energy consumption and cost for conveyor.
Conveyor Construction of Belt Conveyor
Driving arrangement of conveyor: Be made up of vibrating motor setting up on the base welded by shape section, rapid coupling, reducer, retarded coupling.
Rolling parts of conveyor: Driving pulley and bend pulley.
Idler of conveyor: Trough, parallel, nucleur and cushion idler
Clearing parts of conveyor: Spring and nonloaded cleaner.
Discharge parts of conveyor: Fixed plough and electric discharger.
Braking parts of conveyor: Belt back stop and roller back stop.
Accessories: Cover case, guide chute and hopper.
The Application of Belt Conveyor
Conveyor is used widely in metallurgy, mine, builiding, transportation, light & textile, hydropower and harbour industries and departments and used to convey scattered and block materials.
Conveyor can transport materials alone and multi-drop or form horizontal, oblique or vertical conveyor system with other conveyors.
Belt Conveyor
Introduction of Belt Conveyor:
Fixed belt conbeyor is a general-purpose using catton canvas, nylon, polyester canvas and steel cord conveyor belt components for drag cited continous convery equipment, canbewidely used in electric power, cocal, mining, iron and steel, buiding materials, chemicals, chemicals, tobacco, environmental protection, food, lightindustry, oil and many other industries. Transport variouos bluk, block or integer goods with loosedensity 500-2500kb/m3. With the feature of great traffic and climbing ability, and Small noise, easy maintenance, good inter change ability of wearing parts etc, this kind of conveyor is good for the transport system automation control. And the working environment temperature is lower than 40° C.
Belt conveyor application:
It is widely used in mining, metallurgy, coal and other industries, the belt conveyor can be used to transfer bulk materials or materiala in pieces, according to different transgerring requirements, the transferring system can be of only one belt conveyor or consists of several conveyors, or combined with other transferring equipmens. The belt conveyoer can be installed hotizontally or aslope to meet the needs of different transferring requirements.
Company Name: Henan Zhengzhou Mining Machinery Co., Ltd.
Official Website: http://www.inczk.com/ & http://www.zkcomp.com/
24-hour Free Sales Consulting Phone: 861-0371 -5590 2866.
Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan Province
Please pay attention to the company's other products:
Price of rotary kiln: http://www.zkcomp.com/calcining/558. Html
Rotary Kiln: http://www.inczk.com/Products/459. Html
Preheater: http://www.zkcomp.com/calcining/605. Html
Cement Mill: http://www.inczk.com/Products/460. Html
Rotary Dryer: http://www.zkcomp.com/calcining/564. Html
Raw Mill: http://www.inczk.com/Products/1373. Html
Ball Mill: http://www.zkcomp.com/grinding/582. Html
| model | capacity | max length | Belt width | speed | Upper slope | power | Drum dia. |
| (t/h) | (m) | (mm) | (m/s) | (°) | ( kw ) | (mm) |
| B500 | 87 | 20 | 500 | 1 | <20 | 5.5 | 89 |
| B650 | 127 | 20 | 650 | 1 | <20 | 7.5 | 89 |
| B800 | 198 | 15 | 800 | 1 | <20 | 7.5 | 89 |
| B1000 | 507 | 20 | 1000 | 1.25 | <20 | 11 | 108 |
| B1200 | 742 | 20 | 1200 | 1.25 | <20 | 15 | 108 |
| B1400 | 1032 | 30 | 1400 | 1.25 | <20 | 22 | 133 |
