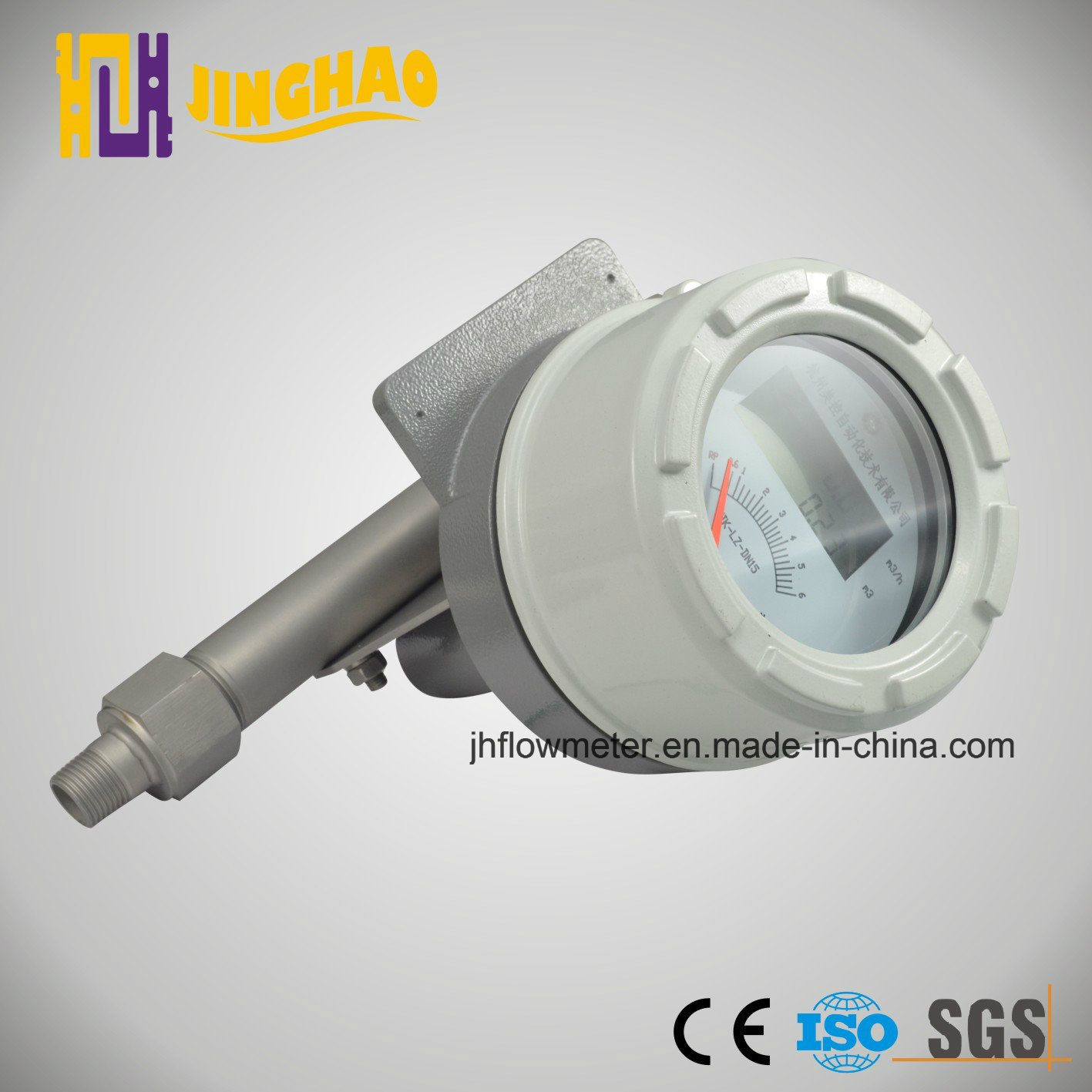

Corrosive Gas Metal Tube Flow Meter/Rotameter with 4-20mA Output
Price: |
US $ 150-500/Piece |
Trade Terms: |
FOB,CIF,CIP |
Min Order: |
1/Piece |
Pay Type: |
T/T,Paypal,Western Union |

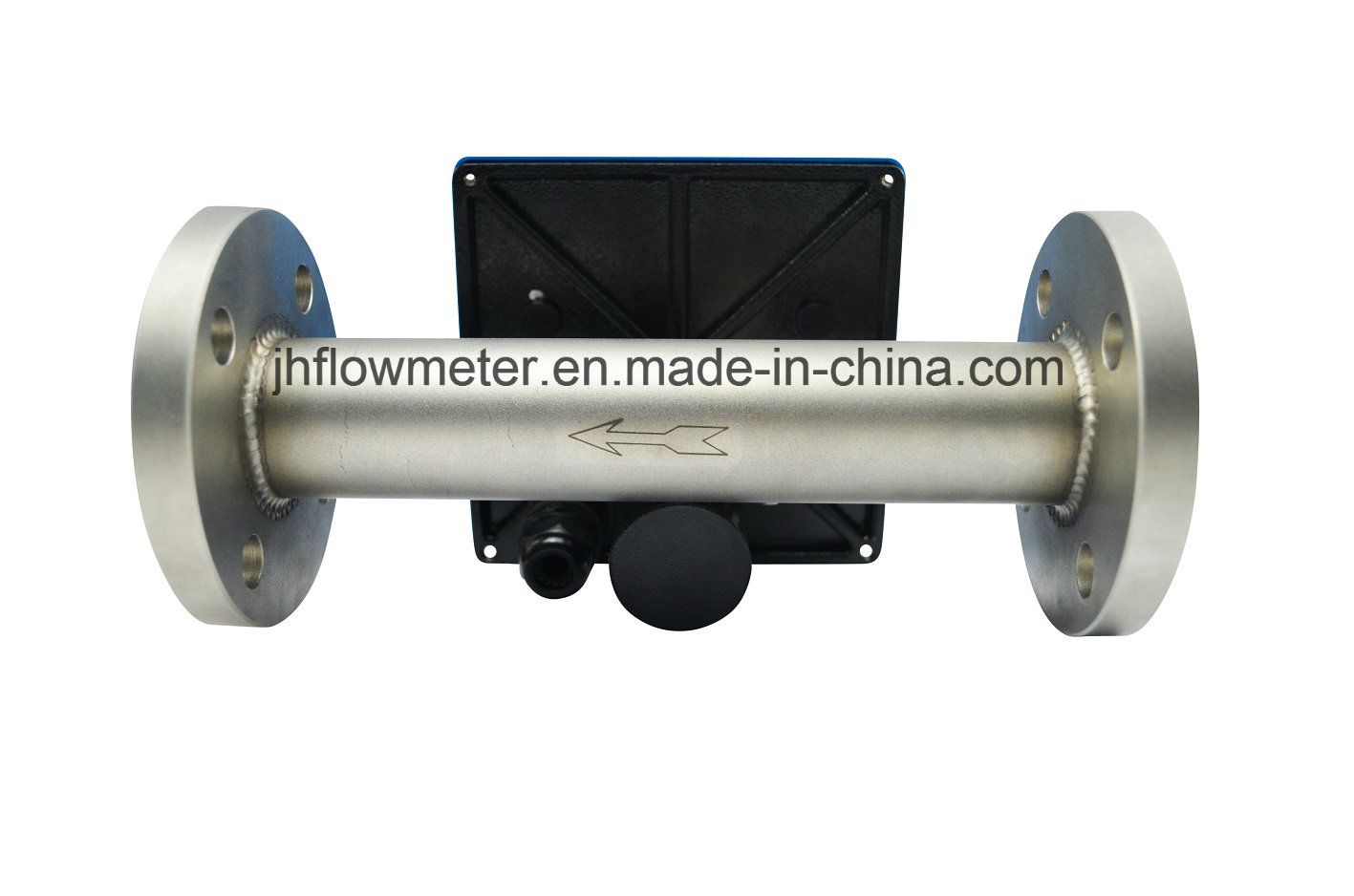

Variable area Flowmeter
LZDC Series Variable-area Flow-meter can also be called metal-tube rotameter, Variable -Area Flow-Meter with Metallic Measuring Tube has the following advantages, simple construction, convenient maintain work, linear graduation, wide adaption which can be used to measure the flow of liquids and gas. Compared with glass-tube rotameter, this type of flow meter has the characteric of high temperature and pressure resistance, high security, easily read, and etc. It also can be used to measure the flow of corrosive medium and opaqueness medium. The meter pipe and flange are made of Icr18Ni9Ti or 18Ni12Mo2Ti. The floater is made of stainless steel. If the floater and lining are both corrosion resistant, it is made of PTFE.
Working principle :

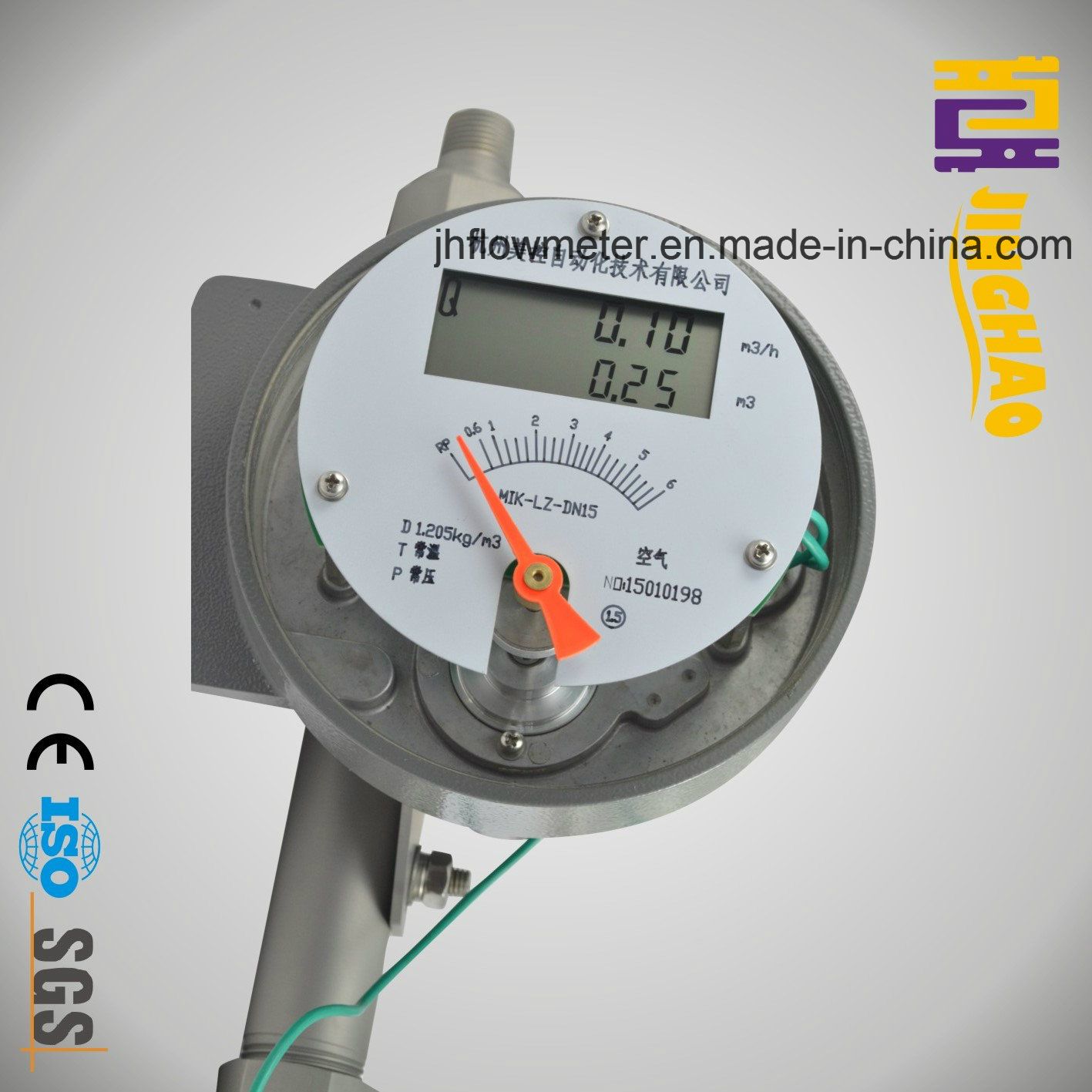

Variable -Area Flow-Meter with Metallic Measuring Tube is made up of two parts, flow sensor and flow indicator( picture 1) Floater is installed inside the conical measuring pipe. Because of the function of the fluid, it can be shifted freely up and down in the conical pipe. The biggest outer diameter of the floater and the annular area of the tapered tube change with the location of the floater. When the flow rate of the fluid is stable to one number, the floater is also in a dynamic balance. By the flow indicator connected with the taper measuring tube, the magnetic signal of the floater would be delivered by non-contact way, that is to say, the indicator can detect and deal with the flow value by the way of magnetism delivery and finally show the flow value by the pointer, which is showed on the dial of. At the same time, LCD can also read the instantaneous or the accumulated flow value, and output the standard two wire(4-20)mA signal / HART protocol.
Features:
- Double lines LCD, showing both instantaneous and accumulated flow.
- Broader ratio of flow rate 10:1.
- More stable signal output: construction of single axis and non-touching magnetic coupling.
-Fully metal-made body, suitable for high temperature, high pressure and corrosive media.
-Can be used even in flammable, explosive and harsh working environments.
- Power supply: two-wire system, battery and AC for selection
-With functions of data recovery, backup and power failure protection
- New design for less pressure loss, little maintenance and long life.
Technical parameters:Meter Model | LZDC |
Measuring medium | Liquids, gas, vapor |
Measuring scope (convert to standard medium, 100%) | Water:20ºC | (10-300000)L/h, Particular requirement are acceptable |
Air:0.1013Mpa, 20ºC | (0.7-3000)m3/h, Particular requirement are acceptable |
Turn Down | 10:1 |
Accuracy class | on-site type | Mechanical pointer index | 1.5, 2.0, 2.5 |
Digital display(battery powered, service life: 2years) | 1.0,1.5,2.0,2,5 |
Remote Transmitting Type: show mechanical pointer index and Digital display (battery powered, service life: 2 years) at the same time. | 1.0,1.5,2.0,2,5 |
Medium temperatures | on-site type | Mechanical pointer index | -80ºC-300ºC, Hightemperature:400ºC |
Digital display(battery powered, service life: 2years) | -40ºC-150ºC, |
Remote Transmitting Type: show mechanical pointer index and Digital display (battery powered, service life: 2 years) at the same time. | -40ºC-150ºC, Hightemperature:400ºC |
Surrounding temperatures | on-site type | Mechanical pointer index | -40ºC-120ºC, |
Digital display(battery powered, service life: 2years) | -20ºC-60ºC |
Remote Transmitting Type: show mechanical pointer index and Digital display (battery powered, service life: 2 years) at the same time. | -20ºC-60ºC |
Nominal pressure | DN15-DN50 | 4.0Mpa ( biggest: DN15: 32Mpa, DN 25: 25Mpa, DN50: 20Mpa) |
DN80-DN250 | 1.6Mpa(biggest:DN80: 10Mpa, DN100: 6.4Mpa,DN125:4.0 Mpa, DN150: 4.0Mpa, DN200: 2.5 Mpa, DN250: 2.5Mpa) |
Measuring tube | Flange connection, standard:DIN2501, ANSI, HG20617/HG20615, according to order standard |
Cable connector | M 20 ×1.5 1/2''G 1/2''NPT 3/4''G 3/4"NPT |
Way of installment | vertical( end into top), horizontal ( left into right, right into left), top into end( piping), ( end into side, side into side) |
Entrance straight pipe | ≥5D |
Exit Straight pipe | ≥250mm |
Protection Grade | IP65, IP67(others needs to be explained when ordering) |
Anti-explosion Mark | Ex iaIICT1-T6 |
Ex dIICT6 |
Prod Model: |
JH-LZDC-4 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Body Material: |
Stainless Steel |
Flow Range: |
Water(20c):10-300000L/H |
Power Supply: |
24VDC |
Medium Temperature: |
-20-120c |
Output: |
4-20mA |
Work Pressure: |
1.6MPa/4MPa |
Cable Interface: |
M20*1.5, Pg11, 1/2 NPT |
Protection Class: |
IP65 |
Accuracy: |
?à0.2-0.5% |
Main Application: |
Gas |
Sensor: |
Tube/Flange |
Type: |
Variable Area Flow Meter |
Measuring Principle: |
Mechanics |
Size: |
Dn10-200 |
Measuring Media: |
Liquid and Gas |
