Product Specifications
| Prod Model: |
GT-5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
ISO |
| Application: |
Hardware Spraying Equipment |
| Method Type: |
Automatic |
| Type: |
Electrostatic Spraying Equipment |
Product Description

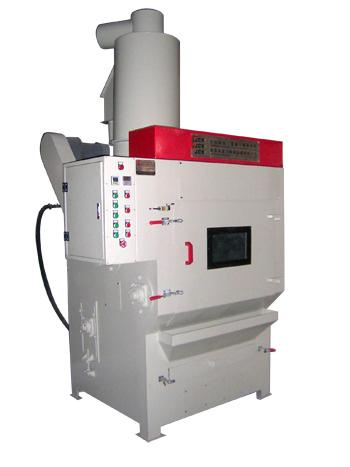

ParametersCJ-GT-5 Caterpillar Automatic Sandblast with Five-guns
Machinery-space size1200*1200*1900(mm)
Dust-removal motor380V 50Hz 3kw
Swing spraying-gun motor380V 50Hz 0.4kw
Turntable load-bearing200kg
Rotating motor380V 50Hz 1.5kw
Compressed-air pressurePressure 2-7kg/cm2 Flow 5m3/min
Spraying gunFive
Power380V 50Hz
Dedusting modeBag dust-removal box, manual dust-removal
(48 bags)
Machine Size1200*3600*2500 mm(L*W*H)
Features:
IWay of sandblasting by adopting caterpillar band to drive workpiece rolling.
IIGun rack adopting swing way to make sandblasting well-distribute. The speed of gun rack can be adjusted according to actual requirements.
III Adopting strip belt to make workpiece rolling easy, which is of advantage to sandblast by turning around.
IV Adopting whirlwind separated hermetic operation to recycle sand automatically, which can improve sand utilization and help to control sand size.
V. Can be ordered according to the actual requirements.
Applications:
This product is applicable for quantity processing of small-size parts or removing the rust, oxide coating and water streak of castings (Aluminium and zinc alloy die castings, Forgings).
Applicable Sand:
Alumina, carborundum, glass beads, walnut sand, resin sand, mini steel grit, steel grits, stainless steel grit and aluminum grit.
SCHROEDER's teamsresearch, develop, design, integrate, produce, assemble, test and install singlespecial machine up to complete production lines, according to customers'specifications, all over the world.
SCHROEDER the world leader in complete mechanical solution
SCHROEDER with a dedicated and experienced project team will implement your project in the most demanding environment, our leading mechanical, electrical and automation engineer will develop your own efficient production facilities based upon proven, reliable and tested new technology. Our customer's support team will be at your service all over the world to support you in your daily operation. SCHROEDERis your best partner in securing productivity for your next investment.
SCHROEDER performs in the following industrial sectors: Aeropsace, Automotive, Defense, Energy, Environment, Railway, Shipyards.
We provide design, realization and installation on site with training and after sales service all over the world.
SCHROEDER teams have long expertise and experience in designing special machines or prototypes adapted to the needs of our customers. This expertise gives to us the opportunity to grow all over the world, and so we already have delivered more than 200 machines in 50 countries. Our quality is well known and we integrate the latest technologies to our machines
