Creator Chv1020 CNC Engraving Machine Tools
Product Specifications
| Prod Model: |
chv1020 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| X/Y/Z Travel: |
1020/550/580 Mm |
| Distance From Table Surface-Spindle Nose: |
120-700mm |
| Table Area: |
1200*550 |
| Max Load Of Table: |
800kg |
| T-Slot: |
4*18*125mm |
| Spindle: |
8000rpm |
| Cutting Feed Rate: |
1-10000m/Min |
| 3 Axis Motors Output: |
1.8/1.8/2.5kw |
| Machine Size: |
2940*2180*2350mm |
| Machine Weight: |
6800kg |
Product Description
CREATOR CHV1020 CNC engraving machine ToolsBrief Introduction:
Creator Precision Co., LTD. was established in Taiwan at 1986.
In 1997 , Creator Industry (Suzhou) Co., Ltd. was found to extend Mainland China market. 1.The registered capital is USD 5,080, 000.
2.The new factory covers 24,680sqms and holds a building area of 19,000sqms.
3.There are 250 employers which assure
4.Annual production at least as 600 sets of EDM and 100 sets of VMC.
Unit Features:
1. The major structures are manufactured from Meehanite cast iron, stress relieved and combined with scientific rib reinforcement to ensure deformation-free operations.
2. Increase width on the column bottom with box-type structure provides maximum stability especially when performing high speed cutting.
3. Linear ways on three axes assure high feed rates and extremely smooth motion.
4. Extra wide span between linear ways greatly increases machine stability.
5. The structural parts are analyzed and designed by the advanced Finite Element Analysis. It provides a detailed analysis for structural stress/strain conditions, and ensures excellent machine rigidity and lifetime stability.
6. Linear guide ways:
The machine employs 45mm wide ball-type linear guide ways. (Optional)
7. Precision ball screw:
Three axes are transmitted by high precision C3 grade ball screws, preloaded, hardened and ground-assuring dependable feed accuracy.
8. Choice of 30, 000 rpm high speed spindles are designed for high speed machining requirement.
9. Extra wide column bottom and base ensure simplified machine structure for space saving.
10. The three axes ball screws are directly coupled to servos through backlash-free couplings. This ensures dependable positioning accuracy. High precision class C3 ball screws are preloaded to eliminate thermal strain.
Standard Accessories:
1.Spindle oil cooler unit
2.Full splash guard
3.Cutting coolant unit
4.Heat exchanger in control box
5.Auto power off
6.Auto lubrication system
7.Air blast through spindle
8.Work lamp
9.Tool box and tools
10.Rigid tapping
11.Mechanical, electrical operating manuals
12.RS-232 Interface
13.Transformer
14.Water gun
Optional Accessories:
1.Direct drive Spindle 10, 000/12, 000/15, 000 RPM
2.Belt type Spindle 10, 000/12, 000 RPM
3.Index table(320, 250)
4.(The fourth axis: Including manual type tailstock, oil tank, motor, driver )
5.Carousel type ATC(15, 20tools)
6.Arm type ATC(24 tools)
7.Screw type chip conveyor
8.Link chain type conveyor
9.Rear coolant flushing device
10.Coolant throught tool holder
11.Spindle oil cooling device
12.Spindle splash ring
13.Oil and water seperator
14.Linear scales on 3 axes
15Deep hole drilling stopper
16.Automatic tool length measurement system
Parameters:| Model |
| CHV-1020 |
| TRAVEL |
| LINEAR GUIDE WAY |
| X axis travel | mm | 1020 |
| Y axis travel | mm | 550 |
| Z axis travel | mm | 580 |
| Distance from table surface to spindle nose | mm | 120~700 |
| TABLE |
|
|
| table area | mm | 1200x550 |
| Max. load of table | kgs | 800 |
| T-slot | mm | 4 x 18 x 125 |
| SPINDLE |
| 8000 RPM Standard |
| Spindle taper |
| BT-40 | BT-40 | HSK-50E |
| Spindle speed | rpm | 8000/10000 | 10000/12000/15000 | 24000/30000 |
| Transmission type |
| Belt | Direct Drive | Built-in |
| Spindle motor | kw | 7.5/11 | 7.5/11 | 15/17 |
| Spindle cooling |
| Oil cooler |
| FEED RATE |
|
|
| Rapid traverse(X, Y) | m/min | 30 |
| Rapid traverse(Z) | m/min | 20 |
| Cutting feed rate | mm/min | 1~10000 |
| 3 Axes motor output(X, Y, Z) | kw | 1.8/1.8/2.5 |
| A. T. C. |
|
|
| Magazine type |
| Carousel | Arm |
| Tool magazine capacity | pcs | 16(20) | 24 |
| Max. tool diameter | mm | 100/150 | 80/150 |
| Max. tool length | mm | 250 | 250 |
| Max. tool weight | kgs | 7 | 7 |
| Tool selection | type | Fixed type | Random |
| OTHER |
|
|
| Power consumption | KVA | 20 |
| Floor space(LxWxH) | mm | 2940x2180x2350 |
| Machine weight | kgs | 6800 |

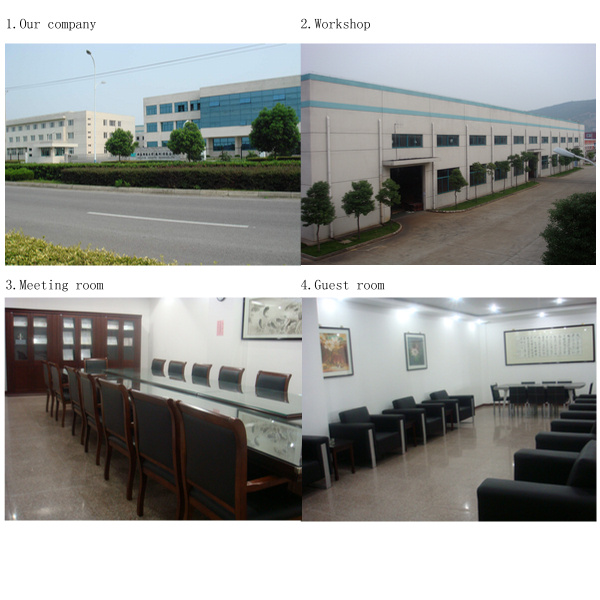

Creator Precision Co., Ltd. Was established in Taiwan at 1986.
In 1997, Creator Industry (Suzhou) Co., Ltd. Was found to extend Mainland China market. Till now, the registered capital is USD 5, 080, 000. The new factory covers 24, 680sqms and holds a building area of 19, 000sqms. There are 250 employers which assure the annual production at least as 600 sets of EDM and 100 sets of VMC.
After Service Team:
Our professional experience and after sale service enhance the worldwide sales network. We hold more than 50 professional engineers to support our after-sale service system, which assures excellent and fast service to our customers.
Competitive cost control:

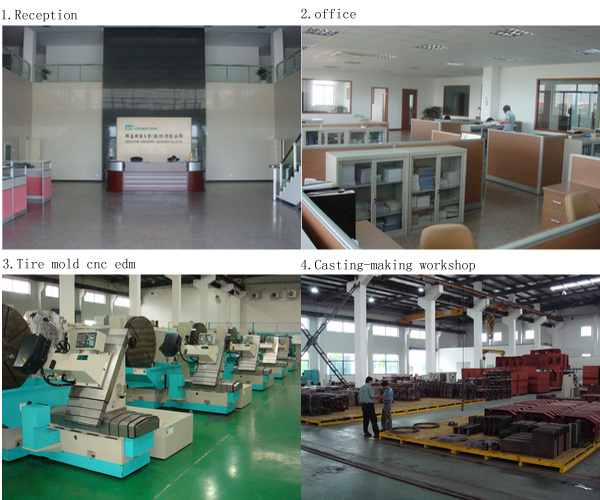

In machining department we process various machinery casting by advanced equipments: LEAD CHV850/CHV1020/CHV1500 VMC, FEMCO R2 horizontal boring machine. Harford 326 planer-type VMC. HC 6m horizontal & vertical milling machine, 2.5m vertical planer-type milling machine, 2000 horizontal & vertical milling machine. SW 3m vertical planer-type milling machine. TOPONE 3HG vertical milling machine, 6K milling machine. LINGYUN 53K vertical milling machine. FREEPORT 3468 surface grinding machine. KENT 715A/510 surface grinding machine. PROTH 60120 steering grinding machine. MASTER 430 lathe. QIHANG Z6163 lathe. NANJING 4TH 3050 radial drilling machine. KS HEJI S10N horizontal saw-banded machine. LEAD CJ345 EDM. WUXI GGC15-0.3 high-frequency surface heat-treatment machine etc.
