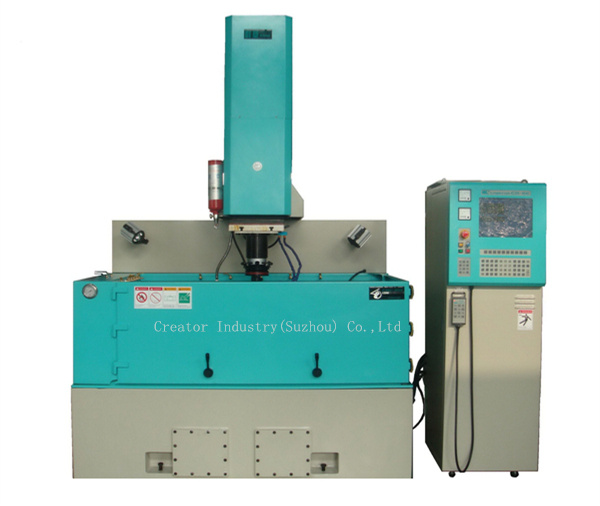

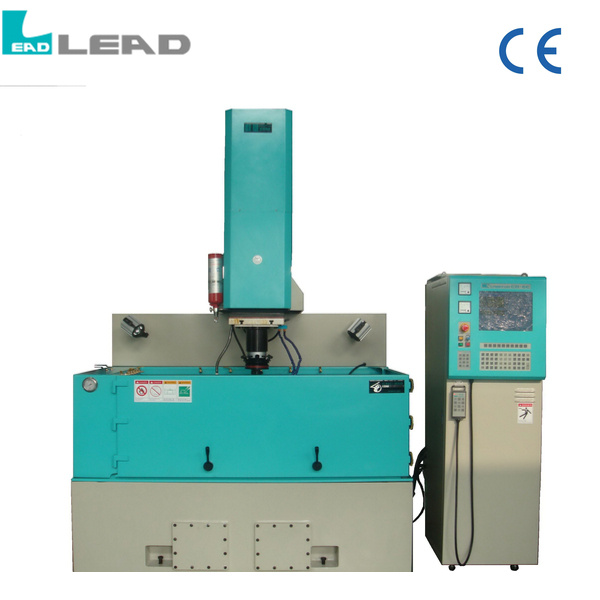

Creator CNC850 CNC EDM Mold Making Machine Tools
Product Specifications
| Prod Model: |
CNC850 CR6C 50A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| X.Y.Z Axes Travel: |
800/500/ Mm |
| Processing Head Travel: |
400mm |
| Worktable Size: |
1000*600mm |
| Work Tank Inner Dimension: |
1850*2800*2750mm |
| Capacity Of Oil Tank: |
1150liter |
| Max Weight Of Electrode: |
120kg |
| Max Weight Of Workpiece: |
2000kg |
| Machine Size: |
1850*2800*2750mm |
| Machine Weight: |
5400kg |
| Process Usage: |
CNC Non-Conventional Machine Tools |
| Movement Method: |
Linear Control |
| Control Method: |
Closed-Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
High-End CNC Machine Tools |
| Processing Precision: |
0.001mm |
Product Description
CREATOR CNC850 CNC EDM mold making machine toolsBrief Introduction:
Creator Precision Co., LTD. was established in Taiwan at 1986.
In 1997 , Creator Industry (Suzhou) Co., Ltd. was found to extend Mainland China market. 1.The registered capital is USD 5,080, 000.

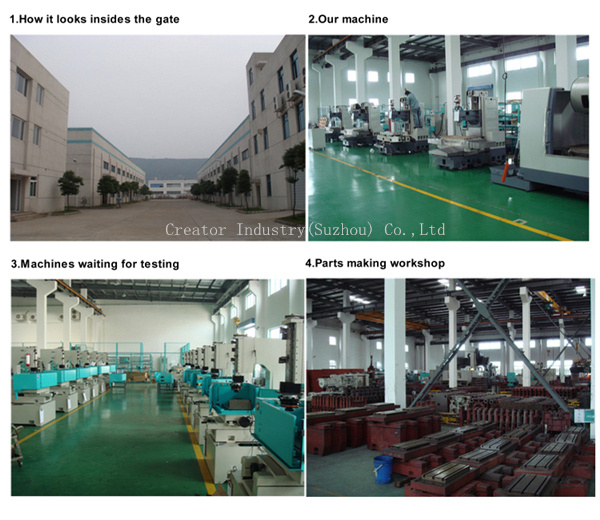

2.The new factory covers 24,680sqms and holds a building area of 19,000sqms.
3.There are 250 employers which assure
4.Annual production at least as 600 sets of EDM and 100 sets of VMC.
Main Unit Features:
1. The structural parts are designed and analyzed by applying the advanced Finite Element Analysis(FEA).
2. Precision linear ways on all axis assures smooth movement and high accuracy.
3. All structural casting are made of FC-30 cast iron, tempered and stress relieved for deformation free performance.
4. High precision spindle assembly insures excellent eroding performance.
5. Table surface is hardened and precision ground, assuring high machining accuracy and long service life.
6. Three axes movements are transmitted by precision ball screws.
7. Three axes are driven by DC servo motor.
8. Three axes are equipped with 1 µ Linear scale for closed loop control.
9. Each machine is compensated by laser interferometer, ensuring position reliability and increasing machine efficiency.
Controller box features:
1. The controller employs INTEL PENTIUM industrial grade mother board.
2.15" TFT LCD monitor.
3. Conversational man-machine interface.
4. Automatic table type editing for 10-step machining programs creation.
5. Table type program input interface.
6. Selection type 2D/3D orbital setting.
7. Graphic automatic touch mode interface.
8. Tungsten steel, extra hard and special material eroding circuit.
9. MPG handwheel for micrometric positioning adjustment.
10. Isolated modular circuit design increases convenience of maintenance and stability of circuit.
11. Full digital discharge pulse control combined with the use of FPGA extra large IC components.
12. This permits high efficiency discharge pulse control combined with the use of FPGA extra large IC components.
13. Extra hard material discharge circuit is available upon request.
Applications:
1. Precision tungsten steel moulds.
2. Injection moulds.
3. Mirror-finish injection moulds.
4. Electronic parts moulds.
5. Die casting moulds.
6. Progressive IC punching moulds.Parameters:| Model | Unit | CNC850 |
| Table travel(X axis) | mm | 800 |
| Table travel(Y axis) | mm | 500 |
| Quill travel(Z1 axis) | mm | - |
| Work head travel(Z2 axis) | mm | 400 |
| Work table dimensions(LxW) | mm | 1000x600 |
| Distance between plate and table | mm | 450-850 |
| Work tank inner dimensions(WxDxH) | mm | 1600x983x588 |
| Max. capacity of dielectric fluid | Liter | 1150 |
| Max. electrode weight | kg | 120 |
| Max. workpiece weight | kg | 2000 |
| Machine unit dimensions(WxDxH) | mm | 1850x2800x2750 |
| Machine unit weight | kg | 5400
|
Creator Precision Co., Ltd. Was established in Taiwan at 1986.
In 1997, Creator Industry (Suzhou) Co., Ltd. Was found to extend Mainland China market. Till now, the registered capital is USD 5, 080, 000. The new factory covers 24, 680sqms and holds a building area of 19, 000sqms. There are 250 employers which assure the annual production at least as 600 sets of EDM and 100 sets of VMC.
After Service Team:
Our professional experience and after sale service enhance the worldwide sales network. We hold more than 50 professional engineers to support our after-sale service system, which assures excellent and fast service to our customers.
Competitive cost control:
In machining department we process various machinery casting by advanced equipments: LEAD CHV850/CHV1020/CHV1500 VMC, FEMCO R2 horizontal boring machine. Harford 326 planer-type VMC. HC 6m horizontal & vertical milling machine, 2.5m vertical planer-type milling machine, 2000 horizontal & vertical milling machine. SW 3m vertical planer-type milling machine. TOPONE 3HG vertical milling machine, 6K milling machine. LINGYUN 53K vertical milling machine. FREEPORT 3468 surface grinding machine. KENT 715A/510 surface grinding machine. PROTH 60120 steering grinding machine. MASTER 430 lathe. QIHANG Z6163 lathe. NANJING 4TH 3050 radial drilling machine. KS HEJI S10N horizontal saw-banded machine. LEAD CJ345 EDM. WUXI GGC15-0.3 high-frequency surface heat-treatment machine etc.
