Product Specifications
Prod Model: |
DLPLC-JTD |
Markets: |
North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia |
Weight: |
15 Kg |
Optional PLC: |
Mitsubishi,Siemens... |
Experiment: |
Crossing Traffic Light Training |
Overall Size: |
600 * 400 * 1000mm |
Type: |
Teaching Model |
Laser Model: |
Technicians Education Equipment |
Product Description

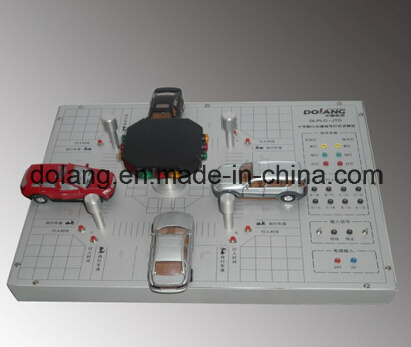

DLPLC-JTD
Crossing Traffic Light Training model
The device is a training system that set PLC (Optional), proximity sensors, dc reducer motor and limit switches, electromagnetic valves, pneumatic organic combine in one body, through the sensor signal acquisition, PLC programming(Optional), control switch quantity, temporal logic to DC reducer motor, and realize the automatic feed control function.
1. Products overview
Model is actual crossroads according to certain scale miniature, and is composed of the vehicle physical model, road model and the traffic light, etc. Has the command and control, four direction red/yellow/green command module, etc. Note: PLC need the user themselves equipped with.
2. Experiment contents
NO. Experiment contents
1The application of various sensors
2The assembly and disassembly of mechanical parts and electric parts
3 System fault diagnosis and maintenance
4 Pneumatic circuits adapter and electrical wires
5The design application of sorting transfer
6Find mistakes and correct electrical circuit
7PLC basic instruction practice
8Connection of electrical lines
9The writing of the instruction program
...
Shandong Dolang Technology Equipment Co., Ltd. Was founded as a partner of Shandong university in 1998. Thanks for the customers, professional engineers and all our skilled workers, Dolang has been grown up to a professional and powerful global enterprise with 16 years dedicated experience on the didactic equipment. As a member of Worlddidac Association, our products are made under the requirement of ISO9001, ISO24001 and OHSMS28001.
We are professional on manufacturer electrical & electronic, PLC, fluid mechanical, hydraulic, pneumatic, process control, mechatronics, automation, CIM training and automobile training systems.
Besides the physical training system, Dolang provide solutions for customer such as system thinking, E-learning and so on.
Our products are involved in various education equipment industry fields. We serve in 100 universities and more than 300 vocational colleges in China. With self-operation export & import license, our products have being exported to France, Russia, Mongolia, Tunisia, Mexico, Brazil, Peru, Indonesia, Iraq, Cyprus, Vietnam, Kazakhstan etc.
