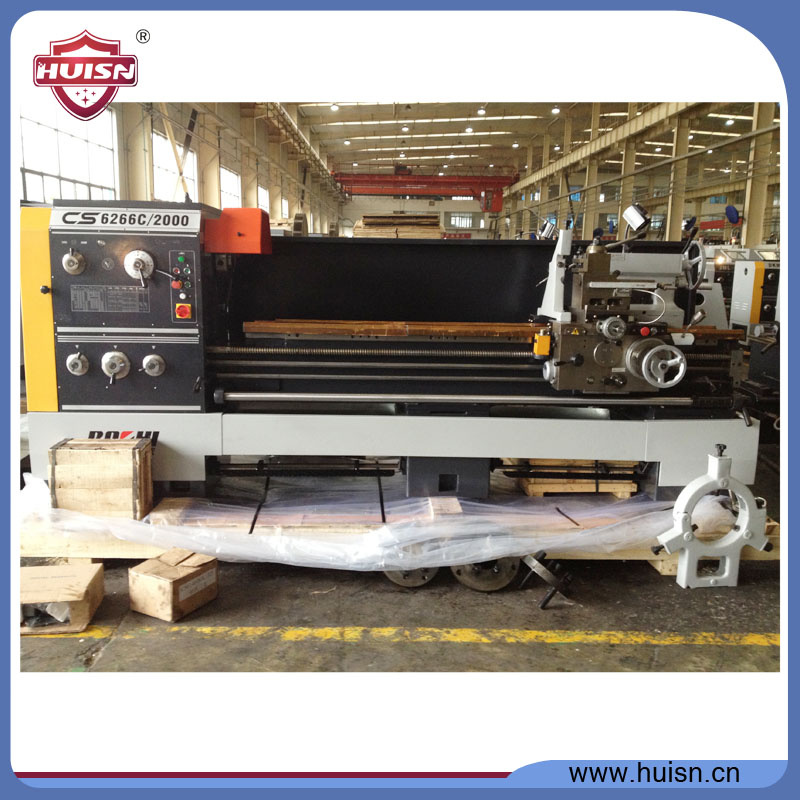

CS6250c CE Approved High Precision Lathe Machine Tools
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
CE High Precision Lathe machine
1.Features:1).Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
2).Threading Inch, Metric, Module and D.P.;
3).Perform drilling, boring and groove broaching;
4).Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
5).Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
6).These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz). 2.Our machine CS6250C detailed specification for your study.| Specifications | Unit |
|
| CS6250/C | CS6266/C | CQ6280C |
| Capacity | Max swing over bed | mm | φ500 | φ660 | φ800 |
| Max swing in gap | mm | φ710 | φ870 | φ1000 |
| Effective length in gap | mm | 240 |
| Max swing over slide | mm | φ300 | φ420 | φ560 |
| Max workpiece length | mm | 1000/1500/2000/3000 | 1000/1500/2000/3000 | 2000/3000 |
| Spindle | Spindle thru-hole | mm | φ105 | φ105 | φ105 |
| Spindle nose |
| CS6140:ISO 702/III No.6 bayonet type; Others: ISO 702/II No.8 cam-lock type |
| Spindle speed | r/min | 12 step 36-1600 | 12 step 30-1400 |
|
|
| Spindle motor | kW | 7.5 |
| Tailstock | Quill dia./travel | mm | φ75 | φ90 |
| Taper of center | MT | 5 |
| Tool post | Number of station/ |
| 4/25X25 |
|
| Tool section |
| Feed | Max X-axis travel | mm | 145 |
| Max Z-axis travel | m/min | 310 | 320 |
| X-axis feed | mm/r | 65 sorts 0.063-2.52 |
| Z-axis feed Z-axis feed | mm/r | 65 sorts 0.027-1.07 |
| Metric thread | mm | 22 sorts 1-14 |
| Inch thread | t.p.i | 25 sorts 28-2 |
| Module thread | πmm | 18 sorts 0.5-7 |
| DP thread | t.p.i.π | 24 sorts 56-1/4 |
| Others | Coolant pump motor | kW | 0.06 |
| Machine weight | kg | 2600/3000 2800/3260 3000/3550 3400/4100 | 2700/3100 2900/3300 3100/3650 3500/4200 | 3100/3650 3950/4350 |

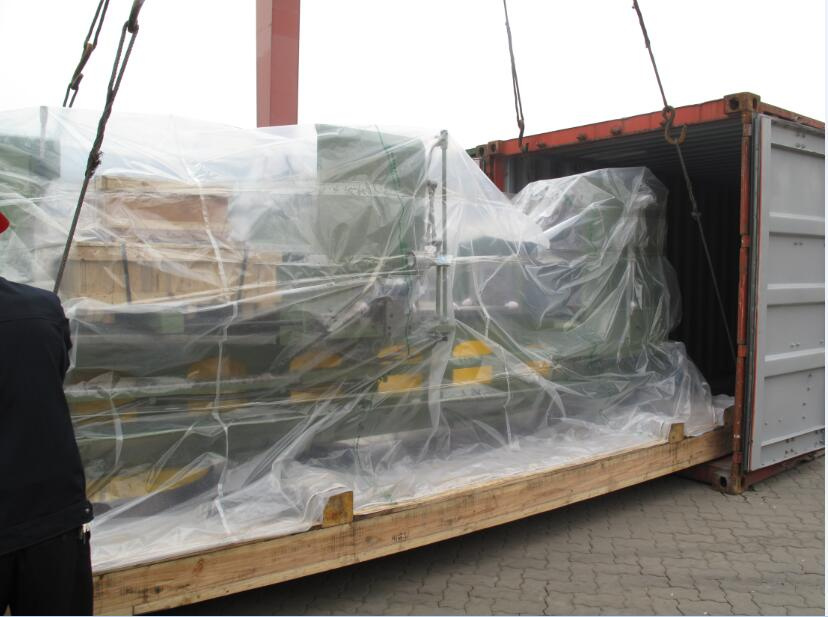

3.Our lathe machine loading in Container photos.
4.FAQ
1.Question : Are you a factory or trading company ? Answer: We are an SGS recognized OEM / ODM manufacturer factory with export license. we have an experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.2. Question : Why choose cooperate with us ? Answer : --Reliable Quality and All components from world leading suppliers ;
--Cost-effective export infrastructure and total supply chain management ; 3. Question : Where is your factory located ? How can I visit there ? Answer: With an ISO90001 certified factory located in Chizhou city,Anhui Province, P.R. China . It takes about 2 hours from Nanjing by train. Warmly welcome clients to visit us . 4. Question : Can you do OEM ? Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements. 5. Question : How does your factory do regarding quality control ? Answer: Reliable Quality is our dignity and we do quality checking carefully such as Incoming Quality Control, In Process Quality Control, Outgoing Quality Control , Environment Control, Product Traceabitity System , Internal Audits & Calibration, Equipment Control & Maintenance, Control of Non-Conforming Materials and etc. Welcome you to visit our company website (www.huisn.cn)to send enquiry to us so you would get the best factory direct price,it is only for you !
| Prod Model: |
CS6250C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Swing Over Bed: |
500mm |
| Max Swing In Gap: |
710mm |
| Max Workpiece Length: |
1m/1.5m/2m/3m |
| Spindle Bore: |
105mm |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Single-tool Holder CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Manual |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
