Product Specifications
| Prod Model: |
TCK45L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Maximum Turning Diameter Over Bed: |
560mm |
| Maximum Turning Diameter On The Saddle: |
210mm |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Movement Method: |
Linear Control |
| Control Method: |
Closed-Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
High-End CNC Machine Tools |
Product Description

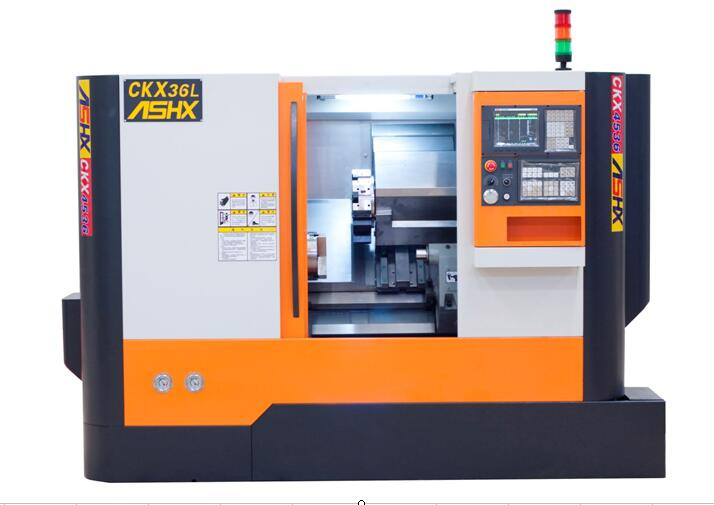

CE Approved high precision CNC Lathe
1.Features:1). Stable machine structure, great machine processing performance
2). High precision, stable operation, long life
3). High rigidity for machine body, worktable, spindle
4).Wearable moving parts of the machine, great impact resistance, long working time for the machine
5).High-rigidity and high strength spindle structure, high rotation accuracy, excellent cutting force
2.Our machine specification as following:
Model | TCK45L |
Maximum turning diameter over bed | ¢560 |
Maximum turning diameter on the saddle | ¢210 |
Maximum Distance between centers | 430 |
Spindle head type | A2-6 |
Spindle through-hole diameter | ¢66 |
The maximum spindle speed | 30-4000 |
Spindle motor power | 7.5 |
Standard chuck size models | 8″ |
X stroke | 250 |
Z stroke | 610 |
X / Z rapid traverse speed | 12/16 |
Tailstock Type |
Hydraulic tailstock |
Tailstock sleeve diameter / stroke | ¢80/80 |
Tailstock taper | MT4 |
Turret Type |
Horizontal |
Turret Number of stations | 8/12 |
The tool specifications (tools) | 25X25 |
m
X / Z positioning accuracy | 0.012/0.015 |
X / Z Repeatability | 0.005/0.008 |
Roundness | 0.003 |
Machine length | 2800 |
Dimensions (width X height) | 1850X2000 |
Machine weight | 3500 |

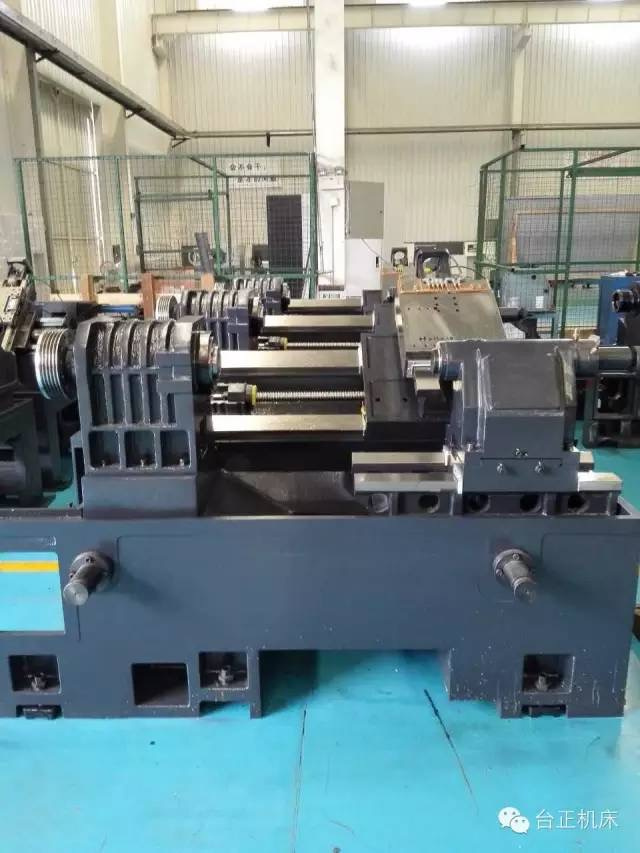

3.Our workshop corner.
4.FAQ
1.Question : Are you a factory or trading company ?
Answer: We are an SGS recognized OEM / ODM manufacturer factory with export license. we have an experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.
2. Question : Why choose cooperate with us ?
Answer :
--Reliable Quality and All components from world leading suppliers ;
--Cost-effective export infrastructure and total supply chain management ;
3. Question : Where is your factory located ? How can I visit there ?
Answer: With an ISO90001 certified factory located in Chizhou city,Anhui Province, P.R. China . It takes about 2 hours from Nanjing by train. Warmly welcome clients to visit us .
4. Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.
5. Question : How does your factory do regarding quality control ?
Answer: Reliable Quality is our dignity and we do quality checking carefully such as Incoming Quality Control, In Process Quality Control, Outgoing Quality Control , Environment Control, Product Traceabitity System , Internal Audits & Calibration, Equipment Control & Maintenance, Control of Non-Conforming Materials and etc.
