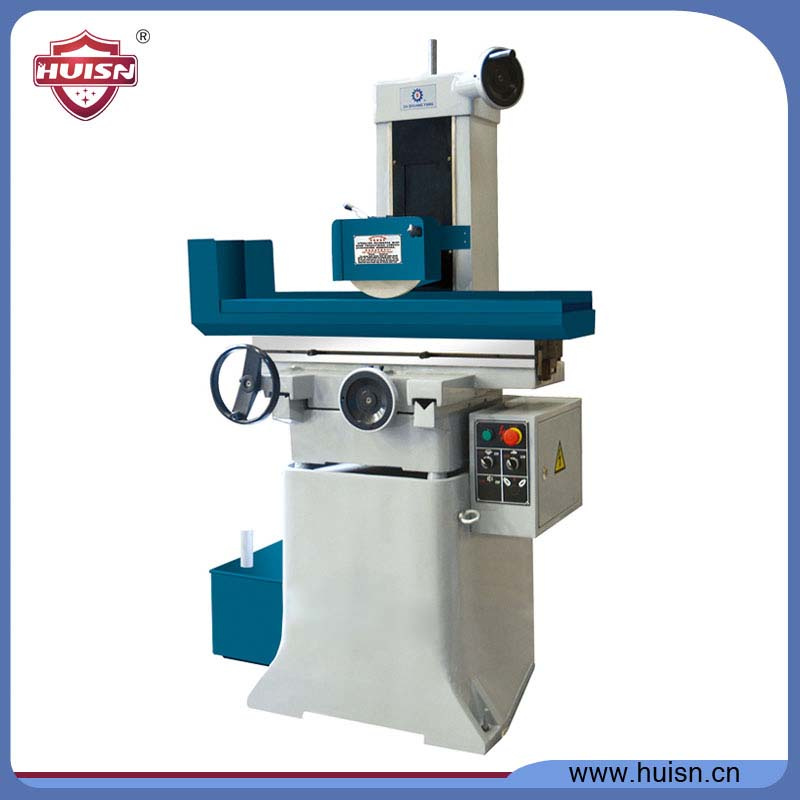

Surface Grinding Machine M618A
| Price: |
US $ 1900-1948/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
M618A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max. Width To Be Ground: |
165mm |
| Max. Length To Be Ground: |
470mm |
| Max. Height To Be Ground: |
350mm |
| Type: |
Surface Grinding Machine |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Manual |
| Precision: |
High Precision |
Product Description
CE High precision Surface Grinder
1.Features:1).3-axis manual operation2).High rigidity H-frame column with spindle center to table3).Enhanced ribbed full cast iron base4).Enlarged spindle housing for heavier grinding5).Cartridge w / 4 preloaded class 7 (P4) bearing6).Roller steel balls on linear table ways for easy and smooth longitudinal movements.7).Double-V saddle ways for rigidity8).Manual lubrication system 2.Our Surface grinder machine workshop corner:
3.Our model M618A detailed specification for your study.| Item | M618A | M818A |
| Max. width to be ground | 165mm | 220mm |
| Max. length to be ground | 470mm | 470mm |
| Max. height to be ground | 350mm |
| Table size | 155X460mm | 210X450mm |
| Max. longitudinal travel | 500mm | 500mm |
| Max cross travel | 185mm | 240mm |
| Max. distance from spindle center to table surface | 450mm |
| Feed of vertical handwheel per rev | 1mm | 1mm |
| Feed of vertical handwheel per div | 0.005 |
| Grinding wheel size(ODXWXID) | 200X13X31.75mm |
| Spindle speed | 3450(60HZ), 2850(50HZ) |
| Power of spindle speed | Standard(1.5Kw) |
| Max. load capacity | 97kg | 128kg |
| Machine weight | 790kg | 920kg |
| Machine dimension LXWXH | 1330X1090X1680mm | 1330X1150X1680mm |
| Packzge size | 1340X1120X1930mm | 1400X1120X1980mm |
4.FAQ 1.Question : Are you a factory or trading company ? Answer: We are an SGS recognized OEM / ODM manufacturer factory with export license. we have an experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.
2. Question : Why choose cooperate with us ? Answer : --Reliable Quality and All components from world leading suppliers ;
--Cost-effective export infrastructure and total supply chain management ; 3. Question : Where is your factory located ? How can I visit there ?
Answer: With an ISO90001 certified factory located in Chizhou city,Anhui Province, P.R. China . It takes about 2 hours from Nanjing by train. Warmly welcome clients to visit us . 4. Question : Can you do OEM ? Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements. 5. Question : How does your factory do regarding quality control ? Answer: Reliable Quality is our dignity and we do quality checking carefully such as Incoming Quality Control, In Process Quality Control, Outgoing Quality Control , Environment Control, Product Traceabitity System , Internal Audits & Calibration, Equipment Control & Maintenance, Control of Non-Conforming Materials and etc. Welcome you to visit our company website (www.huisn.cn)to send enquiry to us so you would get the best factory direct price,it is only for you !
Anhui Chizhou Weiss E & M Co., Ltd is located in Chizhou Economic Development zone #8 Jintong Road, Our Company business scope include: Design, manufacture, marketing and export series of machine tool products and accessories, and other mechanical and electrical products, Tourist Arts and crafts allow national policies and regulations; To carry out the connection with production and business activity of investment planning, training and consulting services.
We can supply CNC Lathe, CNC Milling, lathe, milling machine, drilling machine, sheet metal woring machine, Metal cutting saw, Grinding machine, woodworking machine and machine accessories and etc.
We exported to more than 30 countries including Germany, Spain, France, England, Greece, Finland, Norway, USA, Canada, Australia, South America, Middle East, Africa and Southeast Asia etc.
We have QC department who will carefully inspect every machine before packing, your professional machine supplier. We will always serve you faithfully.
Warmly welcome you to visit our website and cooperate with us.
