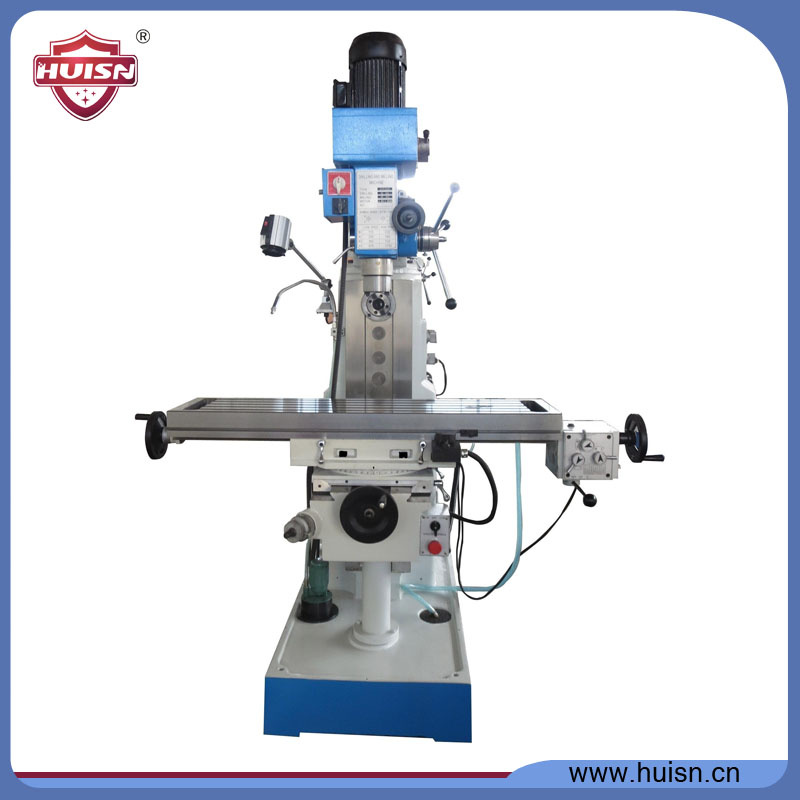

Swivel Head Vertical Universal Milling Zx6350c Machine Tools
Product Specifications
| Prod Model: |
ZX6350C ZX6350Z |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Table Size: |
1120X280mm |
| Table Travel: |
600X260mm |
| Motor Power: |
1.5kw/2.2kw |
| Type: |
Worktable Milling Machine |
| Structure: |
Bed type |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Manual |
| Precision: |
High Precision |
Product Description
CE high precision Universal milling machine
1.Features:1).ZX6350C Vertical milling spindle by manual
2).ZX6350Z Vertical milling spindle auto-feeding
3).Headstock swivels 45°2.Our machine ZX6350Cdetailed specification;| Specification | ZX6350C | ZX6350Z |
| Max.drilling dia. | 50mm | 50mm |
| Spindle taper | MT4, R8, ISO30,ISO40 | MT4, R8, ISO30,ISO40 |
| Max. vertical milling dia. | 25mm | 25mm |
| Max.boring dia. | 120mm | 120mm |
| Distance.spindle to table surface | 100-480mm | 100-480mm |
| Spindle speed range(vertical/Horizontal) | 115-1750/40-1300 r.p.m | 90-2000/38-1310 r.p.m |
| Spindle travel | 120mm | 120mm |
| Table size | 1120x280mm | 1120x280mm |
| Table travel | 600x260mm | 660x260mm |
| Main power | 1.5kw/2.2kw | 2.2kw |
| Overall dimension | 1400x1630x2350mm | 1400x1630x2350mm |
| N.W./G.W. | 1200/1350kg | 1200/1350kg |

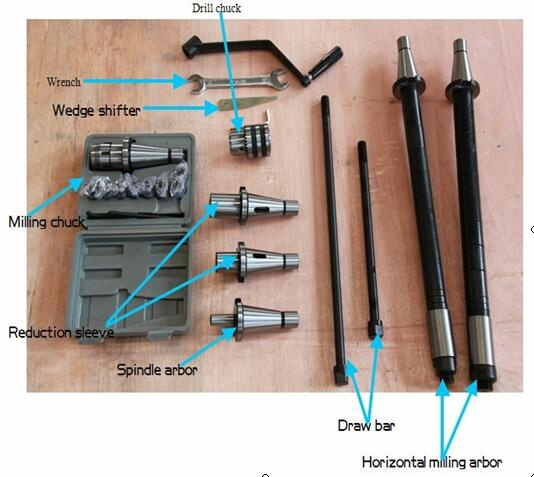

3.With Standard acces as following:

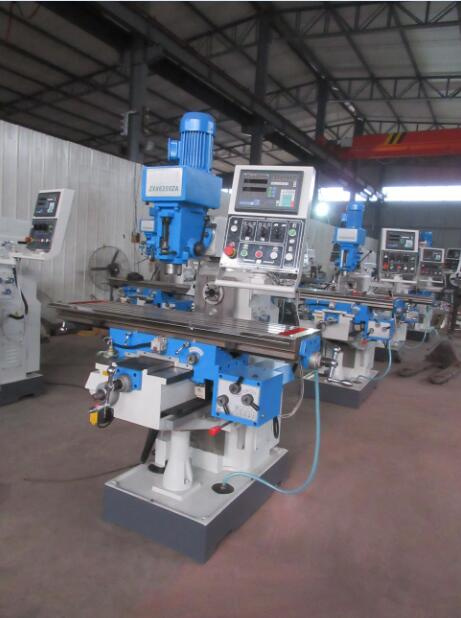

4.Our milling machine before packing:
5.FAQ
1.Question : Are you a factory or trading company ?
Answer: We are an SGS recognized OEM / ODM manufacturer factory with export license. we have an experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.
2. Question : Why choose cooperate with us ?
Answer :
--Reliable Quality and All components from world leading suppliers ;
--Cost-effective export infrastructure and total supply chain management ;
3. Question : Where is your factory located ? How can I visit there ?
Answer: With an ISO90001 certified factory located in Chizhou city,Anhui Province, P.R. China . It takes about 2 hours from Nanjing by train. Warmly welcome clients to visit us .
4. Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.
5. Question : How does your factory do regarding quality control ?
Answer: Reliable Quality is our dignity and we do quality checking carefully such as Incoming Quality Control, In Process Quality Control, Outgoing Quality Control , Environment Control, Product Traceabitity System , Internal Audits & Calibration, Equipment Control & Maintenance, Control of Non-Conforming Materials and etc.
Welcome you to visit our company website (www.huisn.cn)to send enquiry to us so you would get the best factory direct price,it is only for you !
Anhui Chizhou Weiss E & M Co., Ltd is located in Chizhou Economic Development zone #8 Jintong Road, Our Company business scope include: Design, manufacture, marketing and export series of machine tool products and accessories, and other mechanical and electrical products, Tourist Arts and crafts allow national policies and regulations; To carry out the connection with production and business activity of investment planning, training and consulting services.
We can supply CNC Lathe, CNC Milling, lathe, milling machine, drilling machine, sheet metal woring machine, Metal cutting saw, Grinding machine, woodworking machine and machine accessories and etc.
We exported to more than 30 countries including Germany, Spain, France, England, Greece, Finland, Norway, USA, Canada, Australia, South America, Middle East, Africa and Southeast Asia etc.
We have QC department who will carefully inspect every machine before packing, your professional machine supplier. We will always serve you faithfully.
Warmly welcome you to visit our website and cooperate with us.
