Shenzhen HTS Optoelectronic Technology Co., Ltd. >> Custom Full Color P10 Outdoor Fixed DIP LED Display

Custom Full Color P10 Outdoor Fixed DIP LED Display

Name: Custom Full Color P10 Outdoor Fixed DIP LED Display
Brand: china-manufacturer-directory.com
SKU: 756745755
Availability: InStock
Rating: 4.7 (148 reviews)

Supplier:	Shenzhen HTS Optoelectronic Technology Co., Ltd.
Price:	US $ 820-900/Square Meter
Min Order:	1/Square Meter
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	OUTLAMP-P10(2)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Moudle Size:	160X160mm
Price:	Negotiable
Display Type:	LED Video Display
Tube Chip Color:	Full Color
IP Rating:	IP65
Pixel Configuration:	1R, 1G, 1B
Certification:	ETL
Display Function:	Video Display
Application:	Advertising
Scanning Mode:	1/2 Scan
Pixel Pitch:	P10
Pixel Density:	10000DOT /M ²
Average Power Consumption:	450W/M ²

Product Description

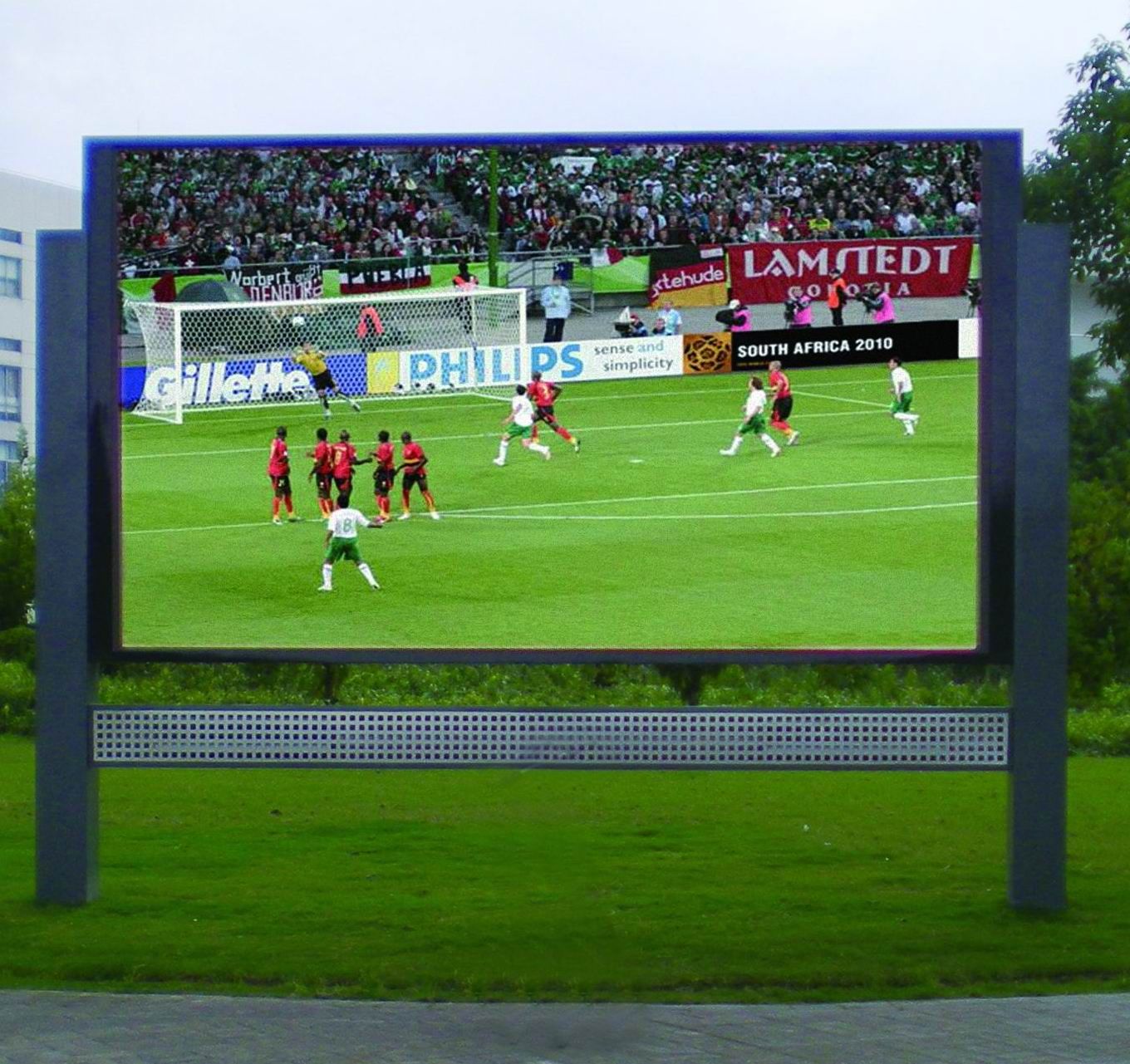

Outdoor Project DIP LED Display Screen

P10

Product description

NO.	Item	Parameter
1	Model	P10
2	Pixel pitch	10mm
3	Pixel configuration	1R1G1B
4	LED type	DIP346
5	Module size	160*160mm
6	Module resolution	16*16
7	Cabinet resolution	128*96
8	Cabinet size	960*960mmx140
9	Density	10000dots/m2
10	Brightness	≥6800 NIT
11	Scan method	1/4 scan
12	Best view distance	≥8m
13	Max. power consumption	750W/m2
14	Ave. power consumption	350W/m2
15	Cabinet Weight	55kg/m2
16	Grey scale	4096 level
17	Colors	6.87 billion
18	Refresh rate	≥960Hz
19	View angle	Horizontal: 90° - 130°, Elevation: 30° - 45°, Depression: 10° - 20°
20	Color temperature	6500K
21	Frame frequency	≥60Hz
22	Out of control pixel rate	<1/10000
23	MTBF	>5000 hours
24	Lifespan	100000 hours
25	Control mode	Synchronous display with control PC by DVI
26	Working voltage	AC 100/200v 50-60Hz
27	Control distance	Ethernet cable: 100m, Multi-mode optical fiber: 500m, Singel-mode optical fiber: 20km
28	Operation temperature	-20 to +40
29	Operation Humidity	10% to 80%
30	Protection level	IP65

Application: Stage Performance, Advertising, Shopping Guide

System Operating Platform: Win XP/Win7 /Win8/ Win2000

Certification: CE, ROHS, UL, CCC, ETL

Water-proof , for indoor and outdoor using

Features:

1. Normal cabinet, can be fast installed.
2. Waterproof testing for each cabinet before the delivery.
3. Locating beam and connection plate make the screen fast to be installed.
4. Independent back cover and lock, not only moisture-proof and dustproof, but easy to debugging and repair.
5. Brightness is more than 6000NIT, suitable for outdoor environment.
6. With good quality which shows clear videos and pictures even thought on sunny days. Can be used for outdoor advertising, stadium, and all kinds of square.

Packing reference:(Carton , wooden case , flight case)
