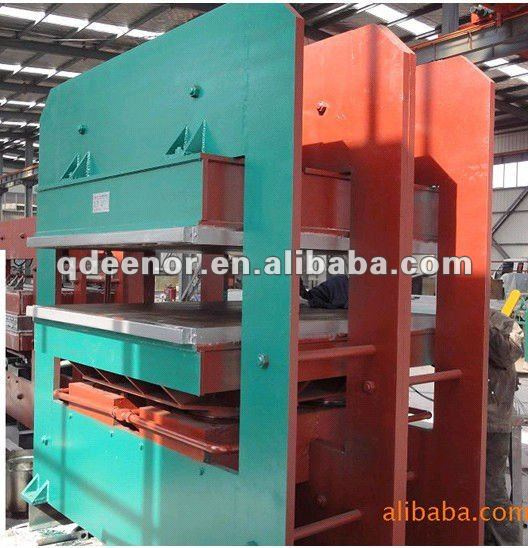

Customize all kinds of rubber plate vulcanizing press
Our factory has nearly 30 years' experience in manufacturing rubber machine.
Fully Automatic Rubber Product Making Machine/rubber blanket curing press
We have a set of standardized production line, which contains wire peeling machine, rubber cutter,
Grinding mill, shredder, screen conveyor, rubber crusher, shaker, banburying mixer, open mill, spiral elevator,
Kneader, rubber filter and extruder, vulcanizer, refiner, calendering machine.
Specification:
1. We can provide our customers with various of plate vulcanizing press
2. Column type and c-frame type
3. The capacity of our products can range from 25-5000T
4. We have the certificate of SGS/CE/BV/ISO9001: 2008
Construction
1)Four Pillar Type
2)Frame type
3)C-frame type
Control
1)Manual
2)Semi-automatic
3)Fully automatic PLC controlled with touch screen user interface.
Operation
1)Hydraulic Up-Stroke
2)Hydraulic Down-Stroke
3)Hydro-Pneumatic Operation
4)Vacuum Molding Hydraulic Press
Heating:
1)Electrical heaters
2)platens with thermic fluid heating suitability
3)platens with steam heating suitability.
Application:
Our presses are used in variety of application in rubber molding article.
It includes automaotive components, pharmaceutical products, butyl rubber stoppers, rubber traffic safety products, anti-vibration mountings, bridge bearing with testing facility, rubber fenders.
Vulcanizing press is mainly consists of:
1-the frame: Use Q235A steel, the structure for welding frame After mechanical grinding derusting, paint processing
2-hydraulic cylinder: Use ZG270-500 raw material, the Piston use high-density alloy cold cast iron, The seal form of hydraulic cylinder is the YX type sealing ring.
3-movable decking and top rail: Use Q235A Steel welding segregate type structure, Every part of a connection groove processing. When installed, each part can be connected.
4-The hot plate: Using high strength steel production, Double-sided processing, thickness for 100 mm, The surface roughness as 1.6. Every plate has 16 sets temperature measuring system, and equipped with temperature alarm function. The hot plate is Adopt double bolt connection with the movable decking, Each heating area is equipped with a set of manual regulator, and control Hot plate temperature.
5-hydraulic station: Main consists of motor, Hydraulic pump, Hydraulic software and Pressure gauge. Simple structure, easy maintenance. Hydraulic software by numerical-control lathe, Pressure-keeping performance is good, no jam. Hydraulic system also equipped with automatic fill pressure, safety limited pressure device.
6-Control system: Using "mitsubishi" PLC control, It can achieve both manual and automatic control method. Automatic control can achieve automatic switching mode, automatic exhaust, vulcanization timing, automatic fill pressure, vulcanization alarm and fault automatic diagnosis, and other functions. Auxiliary equipment adopts site and remote control, Convenient operation.
7-Heat insulation materials: It can withstand ≥ 400 kg/cm2, when the capacity of heat conduction is in 0.18Kcal/m, It can withstand 220 degrees Celsius temperature. The thickness for 30mm heat insulation material is Solved using rubber asbestos plate local compressive deformation problems.
| TYPE | XLB-DQ(C)300*300*2 | XLB-DQ(C)400*400*2 | XLB-DQ(C)600*600*2 | XLB-DQ(C)1000*1000*2 | XLB-DQ(C)1500*1500*2 |
| Total pressure | 0.25 | 0.50 | 1.00 | 4.00 | 8.00 |
| Palte size | 300*300 | 400*400 | 600*600 | 1000*1000 | 1500*1500 |
| Plate clearance | 125 | 125 | 125 | 125 | 125 |
| Woring layer number | 2 | 2 | 2 | 2(4) | 2(4) |
| Piston stroke | 250 | 250 | 250 | 250(500) | 250(500) |
| Plate pressure | 2.1 | 3.1 | 2.8 | 4.0 | 3.6 |
| Motor power | 2.2 | 2.2 | 3 | 5.5 | 5.5 |
| weight | 1050 | 1300 | 3500 | 11000 | 22000 |
