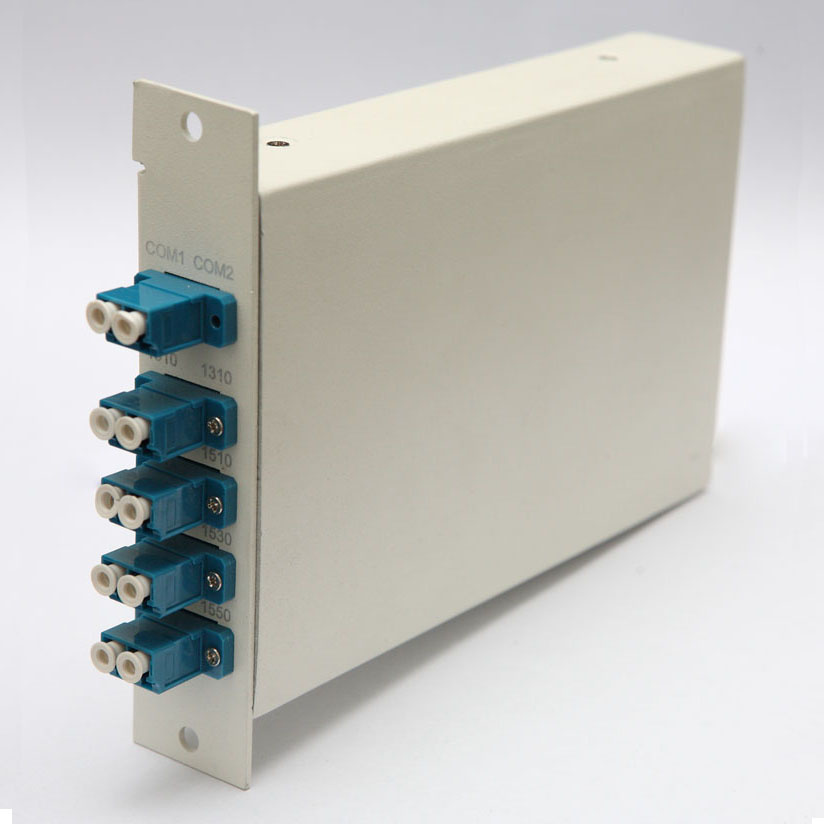

CWDM, Oadm Module in Lgx Box

Name: CWDM, Oadm Module in Lgx Box
Brand: China-Manufacturer-Directory.com
SKU: 695566225
Availability: InStock
Rating: 4.8 (24 reviews)

Supplier:	Flyin Optronics Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Communication
Type:	Passive Components
Connection Structure:	Fc/PC/LC/Sc/St

Product Description

Flyin CWDM, OADM Module is one of the important component in WDM optical network. We supply 2, 4, 8 CH. CWDM, OADM MODULE, more info., pls contact us

2, 4, 8 CH CWDM, OADM Module

Features
1. Low insertion loss
2. Low PDL
3. High channel isolation
4. High Stability and reliability

Applications
1. WDM system
2. CATV
3. Telecommunication
4. Cellular Application
5. Fiber optical amplifier

Parameter
Operating Wavelength Range(nm)			1460~1620
Operating Center Wavelength(nm)			1470--1610
Center Wavelength Accuracy (nm)			± 0.5
Channel Spacing (nm)			20
Channel Passband (@-0.5dB bandwidth) (nm)			> 13
Insertion Loss(dB)	Add/Drop port to Com port		< 0.6
	Com1 port to Com2 port		< 0.8
Channel Ripple (dB)			< 0.3
Isolation (dB)		Adjacent	> 30
		Non-adjacent	> 40
Polarization Dependent Loss (dB)			< 0.10
Polarization Mode Dispersion (ps)			< 0.10
Directivity (dB)			> 50
Return Loss (dB)			> 50
Max Power Handling (mW)			300
Operating Temperature ( ° C)			-5 ~ +75
Storage Temperature ( ° C)			-40~ +85
Dimensions (mm)			L100W80H10 or L142W102H14.5

Ordering informations

OADM	Channel Spacing	Channel Number	Add/Drop Wavelength	Pigtail	Fiber length	Connector
	C=CWDM Grid	04=4Channel 08=8 Channel 16=16Channel 18=18channel N=N channel	47=1470 nm 51=1510nm 53=1530nm ……… 59=1590nm 61=1610nm	1=Bare fiber 2=900um loose tube 3=2mm cable 4=3mm cable	1=1m 2=2m 3=special	0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC

Flyin Optronics Co., Ltd, established in Nov 2005, is a leading worldwide manufacturer and supplier of fiber optic components.Our products include CWDM/DWDM, optical switch, circulator, isolator, PLC splitter & coupler, optical transceiver and media converter etc.
We have passed the ISO9001 and ISO14001 certification.Also our products passed the international safety certification and RoHS.Owing to our excellent engineering services, custom design, technical support, product review, rapid sample and mass production fast delivering for our customers.Our products have been exported to India, Japan, USA and other countries or area.
To supply high value solutions for customer is our aim.Flyin always determined to bring reliable products and service to every client.And we cherish the opportunities every client gives us.
