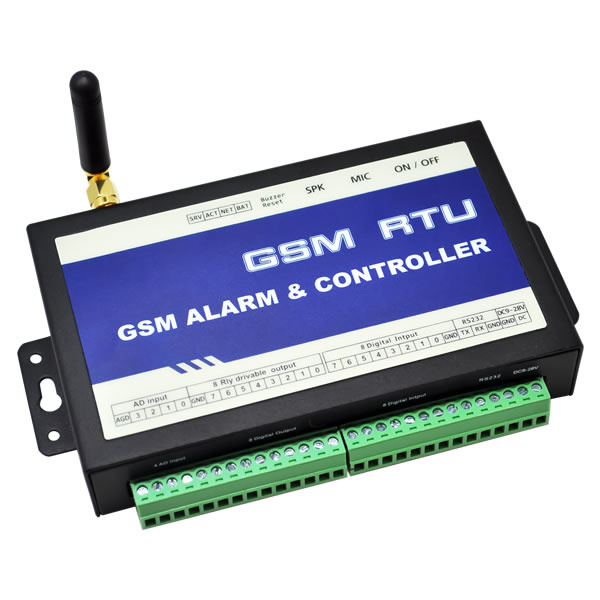

Cwt5011 GSM Remote Monitoring System

Product Specifications

Prod Model:	CWT5011
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

 CWT5015 GSM Remote Monitoring System, GSM SMS Remote Controller
                                  Support 3g WCDMA version


CWT GSM RTU List:

CWT5005 has 2 digital inputs and 2 digital outputs
CWT5010 has 4 digital inputs and 4 digital outputs
CWT5010 has 12 digital inputs and 8 digital outputs
CWT5015 has 1 digital inputs and  2 relay outputs and 1 analogue input
CWT5011 has 8 digital inputs and 8 digital outputs and 4 analogue inputs




3 relay outputs features:

l         Configurable automation modes
l         Remote On/Off/Pulse relay
l         Configurable pulse time
l         Remote query outputs status
l         Relay can be activated by alarm
l         Relay can be activated by call
l         Relay can be activated on schedule

1 AD inputs features: ( 4-20mA or 0-5V analogue input)

l         Preset high and low level to alarm
l         Remote query analog via sms
l         Configurable the alarm and recover sms text
l         Configurable alarm ensure time
l         Configurable alarm delay time
l         Configurable offset and gain
l         Send current value on schedule

2 digital inputs features:

l         Accept NO or NC contact
l         Configurable alarm and recover sms
l         Configurable alarm ensure time
l         Configurable alarm delay time
l         Can set receivers for every inputs
l         Remote enable or disable any input
l         Remote query inputs status

Advance features:

l         Configurable alarm and recover sms
l         Automatically report the status of itself on schedule
l         Support remote setup via sms commands
l         Preset 10 phone numbers(can be distributed authority)
l         Remote add/edit/delete phone group
l         Support custom sms commands
l         Automatically update internal clock via sms
l         Time stamped in alarm or recover messages
l         Support ring call when alarm
l         Temperature sensor (optional)
l         Internal battery and providing power cut off alarm
l         Easy used GUI configure software
l         Adopted highly integrated industrial CPU
l         Reliable performance with built-in double watchdog
l         Can execute preset tasks by re-defined conditions
l         Low maintenance, 24×7 operation

Specifications

l        DC Power supply:12-24V DC (Standard adapter: DC 12V/1.5A)
l  Power consumption: Quad-frequency 900/1800/850/1900MHz
l  SIM Card: Supporting 3V&1.8V SIM Card
l  Antenna connector: 50 Ω SMA connector.
l  Communication interface: RS-232
l  Working temperature: -30°C ~ +70°C
l  Working humidity: Relative humidity 95%
l  Digital input: 2 Digital inputs (dry contact)
l  Output: 3 Relay outputs (3A, 220Vac)
l  Analog input:1 Analog input (4~20mA or 0~5V)
l  Exterior dimension: 95×63×25mm
l  Weight: 256G

How to setup:

l  Can be setup by free PC software via serial port
l  Can be remote setup via sms commands

When does GSM RTU send sms:

l         Digital inputs are triggered
l         AD inputs out of preset range
l         Send command via serial port
l         Manual request by sms command
l         External DC power off or recover
l         On schedule, such as daily report, etc.
