Cx-Fcfm Fuel Consumption Flow Meter (CX-FCFM)
Product Specifications
| Prod Model: |
CX-FCFM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Medium: |
Diesel /Oil/Fuel |
| Display: |
Mecahnical Type |
| Material: |
Brass Calculate Cavity |
| Sensor: |
Tube/Flange |
| Type: |
Fluid Oscillation Flow Meter |
| Accuracy: |
>?à1% |
| Measuring Media: |
Liquid |
| Measuring Principle: |
Mechanics |
| Size: |
DN10-50 |
| Main Application: |
Fuel Oil |
| Measurement Object: |
Diesel Oil |
Product Description

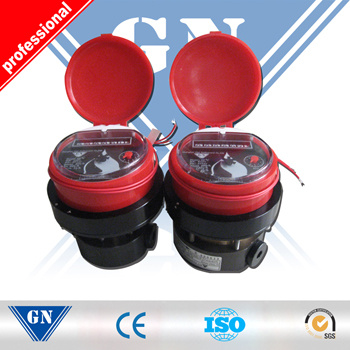

CX-FCFM Fuel Consumption Flow Meter
Description Proved and tested system
Easy and accurate reading of engine fuel consumption
No extra maintenance necessary
Tamper-proof measurement
Low installation costs
Quick and easy installation
Short down-time of vehicle only
Quick pay-back period
GN series Fuel consumption flow meter, is made by technology from Switzerland, It is most popular Fuel consumption flow meter in the world.V4 series Fuel consumption flow meterModel: V4 / V4 OEM / V4R
Size: DN 4 mm
Connection: M14× 1.5FT
Flow range: 1~80L/H.
Pressure: PN 16 bar
Repeatability: ± 0.1%
Normal flow: 50 UH
Max error: ± . 1%(Note: If use the pulse value alone, the accuracy better than 0.5%)
V4:With mechanical totalizer, no pulse output
V4R:Flow meter with both totalizer and 3-wire pulseOutput.
Electric limit: 4-18VDC(12 VDC recommended),
Pulse volume: 1Upulse
V4 OEM(2wire):Flow sensor with reed switch pulse output
Electrical Iimit: 12124148 VDC, 50mA,
Pulse volume: 0.005Upulse
V4 OEM(3wire):Flow sensor with hall sensor pulse output
Electrical limit: 4-18VDC(12 VDC recommended),
V8 series Fuel consumption flow meterModel: V8/V8 OEM /V8R/D8
Size: DN 8 mm
Connection: M14× 1.5FT
Flow range: 4-200L/H.
Pressure: PN 16 bar
Repeatability: ± 0.1%
Normal flow: 135 L/H
Max error: 1% (Note; If uses the pulse value alone, the accuracy better than 0.5%)
V8:With mechanical totalizer, no pulse output
V8R:Flowmeter with both totalizer and pulse output
(hall sensor pulse output, 3 wire)
Electrical limit.: 4-18VDC(12VDC recommended),
Pulse volume: 1 L/pulse
V8 OEM(2wire):Flow sensor with reed switch pulse output
Electrical limit: 12/24/48 VDC, 5OmA,
Pulse volume: 0.0125L/Pulse
V8 OEM(3wire):Flow sensor with reed switch pulse output
Electrical limit: 12/24/48 VDC, 50mA,
Series of Products

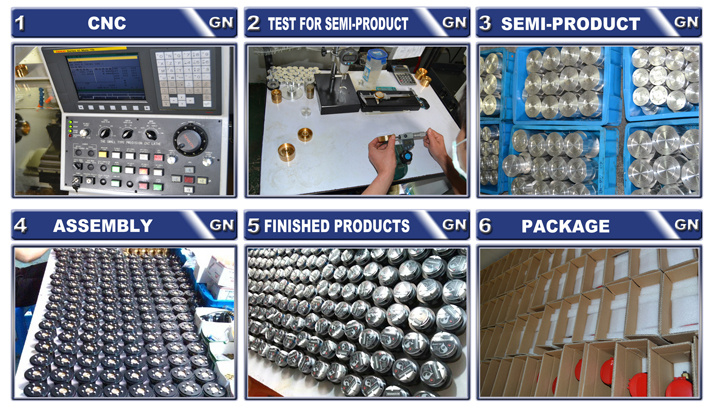

Production Line
Certificate
Payment Terms
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal
After-sales service
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
Our Integrity Promises your Quality !
Please contact with me, I will provide you professional service and high quality products.
Cixi flowmeter Co., Ltd. Was established in 2008 and since then has been dedicating itself to research and manufacture of various kinds of flowmeter. With sophisticated experience in technology and management, CIXI Flowmeter has made a name for itself as an excellent manufacturer of various kinds of flowmeter. In 2007, we have especially set up Shanghai Cixi Instrument Co. Ltd for handling the deals of Export.
Thanks to outstanding performance of products, CIXI Flowmeters are being applied in more and more fields where there' S liquid to measure. Now company involves in polyurethane, fuel consumption, automotive, dispensing robots, semiconductors, odorizing equipment, batteries, electricity, telecommunications, petroleum, chemical, coal, metallurgy, water conservancy, food, medical, machinery and other industries. CIXI Flowmeters have found users in many countries besides China, such as Malaysia, India, Thailand, Vietnam, South Africa and so on. Increasing number of users are finding that CIXI Flowmeter are kind of product with super performance and reasonable price.
Now we have super mirco flow meter, oval gear flow meter, coriolis mass flow meter, electromagnetic flow meter, piston flow meter, and Spur gear flow meter, gear pump, gear metering pump. There is no other manufactures who can produce micro flow meter and many company import this kind of flow meter from Japan or America. After we put our micro flow meter into market, the news was spreaded widely and we got many reputation from our client. We now have sold this flow meter to more than 100 countries which contain wide and different applications. Meanwhile our oval gear flow meter has aquired many certificates and filled the vacancy of Chinese market. At the same time, in order to cooperate with the whole set of sales and services of the product, we can also produce supporting quantitative systems, various proportioning systems and industrial automation systems, allowing customers to have a wider range of choices.
