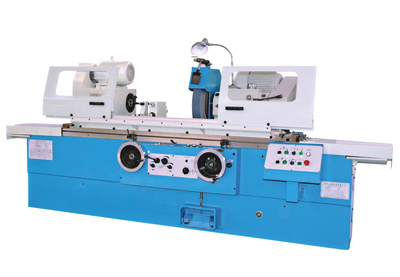

Cylindrical Grinding Machine(BL-M1332B*1000/1500/2000/3000,MC1332B*2000/3000)
Features:
Suitable for grinding IT6-IT5 accuracy cylindrical conical parts
Can choose hydraulic stepless or hand wheel transmission to achieve worktable longitudinal movement
Adopt orifice compensated unloading form on worktable lubrication
With hydraulic fast feed,manual micro feed and wheel automatic cycle feed function on worktable cross travel
Workpiece,External Grinding wheel,Oil pump,and Coolant pump are driven by independent motors
Adopt 2 sets of 4 bearing bushes compose the wheel spindle bearing.Increase the grinding carriage spindle diameter and motor power.Improve the grinding efficiency
Wheel dresser mounted on the tailstock,and tailstock equipped with hydraulic center back device
Adopt interlocking mechanism among electric,hydraulic and mechanical part,ensure safe operation.
For BL-MC1332B seies,adopt hydrostatic guideway
Specification:
Item | Unit | BL-M1332B×1000/1500/2000/3000 | BL-MC1332B×2000/3000 |
External grinding length | mm | 1000/1500/2000/3000 | 2000/3000 |
External grinding dia. | mm | Φ8~320 | |
Center height | mm | 180 | |
Max. workpiece weight | kg | 150 | 500 |
Worktable speed | m/min | 0.1~4 | |
Max. peripheral speed of grinding wheel | m/s | 35 | |
Max. travel of table | mm | 1100/1600/2100/3100 | 2100/3100 |
Swivel range of worktable | deg | -3°~ +7°/-3°~ +6°/-2°~ +5°/-2°~ +3° | -2~+5°/-2~+3° |
External wheel size | mm | Φ600×75×Φ305 | |
Workhead spindle speed | r/min | 26.52.90.130.180.260 | |
Grinding wheel spindle speed | r/min | 1100 | |
Workhead taper | MT5# | ||
Tailstock taper | MT4#/MT4#/MT5#/MT5# | MT5# | |
Rapid feed | mm | 50 | |
Wheel movement per a round of handwheel | mm | coarse:2/fine:0.5 | |
Wheel movement per a div of handwheel | mm | coarse:0.01/fine:0.0025 | |
Total power | kw | 14.27 | |
Overall dimensions(L×W×H) | mm | (3605/4605/5605/7605)×1810×1515 | (5605/7605)×1810×1515 |
Weight | kg | 4000/4600/6600/8600 | 6600/8600 |
Working Accuracy:
Roundness: 1.5μm(≤1500) / 2.5μm(>1500)
Surface waviness: 1 μm
Uniformity of dia. In longitudinal section: 5μm (≤750) / 8μm(>750)
Surface roughness: Ra 0.16μm
Standard Accessories:
Grinding wheel dresser
Wheel balancing mandrel
Complete set of electric equipment
Complete set of coolant equipment
Open type steady rest
Wheel flange
Leceling wedge
Optional Accessories:
Wheel balancing stand
End face dresser
Prod Model: | BL-M1332B/MC1332B |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
External Grinding Length: | 1000/1500/2000/3000;2000/3000mm |
External Grinding Dia.: | 8~320mm |
Center Height: | 180mm |
Max. Workpiece Weight: | 150/500kg |
Worktable Speed: | 0.1~4m/Min |
Max. Peripheral Speed Of Grinding Wheel: | 35m/S |
Max. Travel Of Table: | 1100/1600/2100/3100;2100/3100mm |
External Wheel Size: | 600*75*305mm |
Workhead Spindle Speed: | 26.52.90.130.180.260r/Min |
Grinding Wheel Spindle Speed: | 1100r/Min |
Type: | Surface Grinding Machine |
Controlling Mode: | Artificial |
Automatic Grade: | Semiautomatic |
Precision: | High Precision |
Processing Object: | Metal Surface |
