Xiamen Topway Machinery Co., Ltd. >> D6, D7and D8 Hydraulic Bulldozer with Cummins Engine

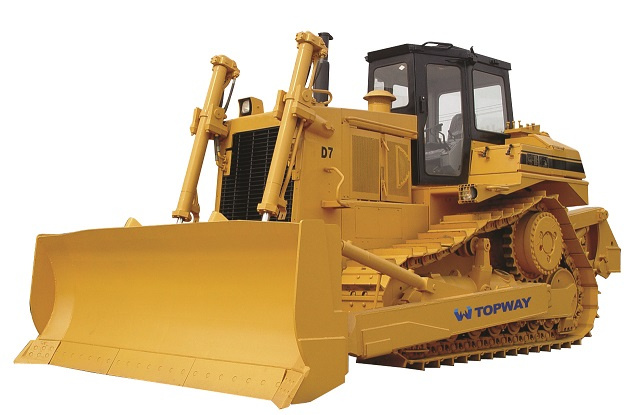

D6, D7and D8 Hydraulic Bulldozer with Cummins Engine

Name: D6, D7and D8 Hydraulic Bulldozer with Cummins Engine
Brand: China-Manufacturer-Directory.com
SKU: 768571305
Availability: InStock
Rating: 4.9 (100 reviews)

Supplier:	Xiamen Topway Machinery Co., Ltd.
Price:	US $ 65000/Piece
Min Order:	1UNIT
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	D6, D7, . D8&165-3
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Bulldozer Engine:	Cummins
Bulldozer Operating Weight:	16000kgs-40000kgs
Bulldozer Hydraulic Parts:	High Quality
Walking Mode:	Crawler
Certification:	ISO9001: 2000
Condition:	New
Type:	Bulldozer
Scraper Type:	Bulldozer
Load And Unload Method:	Dozer

Product Description

Hydraulic Bulldozer Main Features:

TM series bulldozer is introduced Japanese Komatsu bulldozer technology featuring high performance capacity, efficiency, safe and reliable in operation
It is semi-rigid suspended, power shift, hydraulically controlled and track-type
Adopted modular design, it is simply to operate, easy to repair and maintenance.
Overflow with difference of pressure, environmental-friendly and energy saving hydraulic system, high working efficiency.
Widely used in building infrastructure and industry including large mining area, port, power plant, road building etc.
Optional equipments (Additional price needed)
Straight tilting blade, Scarifier, Angle blade, Coal pushing blade, U shape blade; Single shank ripper, Three shanks ripper; ROPS, FOPS, Forest defence cabin, A/C, Different track shoes

Specification:

Technical Data\Model		TMD8			TMD7			TMD6			TM165-3
Dozer		Tilt
Operating weight with ripper (kg)		37400			26100			16500			17750
Ground pressure (kpa)		93			51.96			55.23			68.3
Track gauge (mm)		2083			2235			1880			1880
Min. ground clearance (mm)		556			484			445			353
Gradient		30°/25°			30°/25°			30°/25°			30°/25°
Dozing capacity (m³)		11.24			5.8			4.5			4.6
Blade width (mm)		3940			4382			3297			3442
Max. digging depth(mm)		582			635			592			420
Overall dimentions with ripper(mm)		761635003402			598243823482			503732973077			544734423160
Engine	Type	NT855-C360S10			CUMMINS NTA855-C280S10			SHANGCHAI C6121			WEICHAI WD10G178E25
	Rated revelution (rpm)	2100			2100			1900			1850
	Flywheel power (KW/HP)	235/320			169/230			119/162			121/165
Driving system	Torque converter	Power separating, hydraulic-mechanic type						Outside separating combination			3-element 1-stage 1-phase
	Transmission	Planetary, power shifting transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted
	Steering clutch	Hydraulic pressed, usually separated clutch						Multiple-disc oil power metallurgy disc compressed by spring. hydraulic operated.
	Brake clutch	Pressed by spring, separated hydraulic, constant meshed type						Brake is oil two direction floating band brake operated by mechanical foot pedal.
	Final drive	Two-stage planetary reduction gear mechanism, splash lubrication						The final drive are double reduction with spur gear and segment sprocket, which are sealed by duo-cone seal, easy to maintanence
Undercarriage system	Type	The track is triangle shape, the sprocket is elevated elastic suspended						Swing type of sprayed beam, Suspended structure of equalizer bar
	Number of track rollers (each side)	8			7			7			6
	Pitch (mm)	226			216			203			203
	Width of shoe (mm)	560			910			560			500
	Gear	1st	2nd	3rd	1st	2nd	3rd	1st	2nd	3rd	1st	2nd	3rd
	Forward km/h	0-3.5	0-6.2	0-10.8	0-3.9	0-6.5	0-10.9	0-4.0	0-6.9	0-10.9	0-3.32	0-6.26	0-11.40
	Backward km/h	0-4.7	0-8.1	0-13.9	0-4.8	0-8.2	0-13.2	0-4.8	0-8.4	0-12.9	0-4	0-7.57	0-13.87
Implement hydraulic system	Max. system pressure (Mpa)	22.5			18.6			15.5			12
	Pump type	Gears oil pump			High pressure gears pump			Gears pump			Two groups Gears pump
	System output (L/min)	220			194			178			185

Product Photos:
