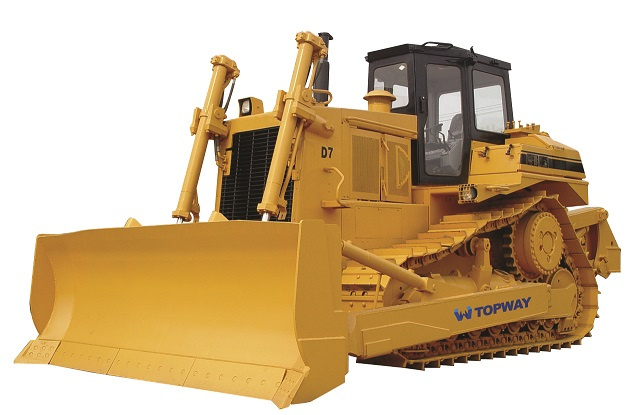

High Quality Tmd8 Track Bulldozer with Weichai Engine

Name: High Quality Tmd8 Track Bulldozer with Weichai Engine
Brand: china-manufacturer-directory.com
SKU: 774262425
Availability: InStock
Rating: 4.5 (92 reviews)

Supplier:	Xiamen Topway Machinery Co., Ltd.
Price:	US $ 65000/Piece
Min Order:	1UNIT
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	TMD8
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Bulldozer Engine:	Cummins
Bulldozer Operating Weight:	37400kgs
Bulldozer Hydraulic Parts:	High Quality
Walking Mode:	Crawler
Certification:	ISO9001: 2000
Condition:	New
Type:	Bulldozer
Scraper Type:	Bulldozer
Load And Unload Method:	Dozer

Product Description

Hydraulic Bulldozer Main Features:

TM series bulldozer is introduced Japanese Komatsu bulldozer technology featuring high performance capacity, efficiency, safe and reliable in operation
It is semi-rigid suspended, power shift, hydraulically controlled and track-type
Adopted modular design, it is simply to operate, easy to repair and maintenance.
Overflow with difference of pressure, environmental-friendly and energy saving hydraulic system, high working efficiency.
Widely used in building infrastructure and industry including large mining area, port, power plant, road building etc.
Optional equipments (Additional price needed)
Straight tilting blade, Scarifier, Angle blade, Coal pushing blade, U shape blade; Single shank ripper, Three shanks ripper; ROPS, FOPS, Forest defence cabin, A/C, Different track shoes

Specification:

Technical Data\Model		TMD8
Dozer		Tilt
Operating weight with ripper (kg)		37400
Ground pressure (kpa)		93
Track gauge (mm)		2083
Min. ground clearance (mm)		556
Gradient		30°/25°
Dozing capacity (m³)		11.24
Blade width (mm)		3940
Max. digging depth(mm)		582
Overall dimentions with ripper(mm)		761635003402
Engine	Type	NT855-C360S10
	Rated revelution (rpm)	2100
	Flywheel power (KW/HP)	235/320
Driving system	Torque converter	Power separating, hydraulic-mechanic type
	Transmission	Planetary, power shifting transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted
	Steering clutch	Hydraulic pressed, usually separated clutch
	Brake clutch	Pressed by spring, separated hydraulic, constant meshed type
	Final drive	Two-stage planetary reduction gear mechanism, splash lubrication
Undercarriage system	Type	The track is triangle shape, the sprocket is elevated elastic suspended
	Number of track rollers (each side)	8
	Pitch (mm)	226
	Width of shoe (mm)	560
	Gear	1st	2nd	3rd
	Forward km/h	0-3.5	0-6.2	0-10.8
	Backward km/h	0-4.7	0-8.1	0-13.9
Implement hydraulic system	Max. system pressure (Mpa)	22.5
	Pump type	Gears oil pump
	System output (L/min)	220
