Product Specifications
| Prod Model: |
DS-403A-A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Shoes |
| Automatic Grade: |
Automatic |
| Certification: |
CE |
| Classification: |
Toe Lasting Machine |
Product Description
Functions Outline
Featured with automatic nail sorting, nail feeding, nail examining and so on,

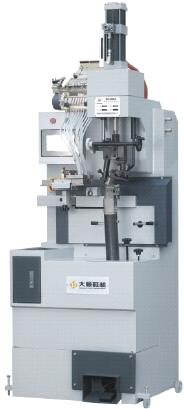

DS-403A-A Automatic Pneumatic Heel Nailing Machine is an advanced equipment used in shoe industry for heel-nailing purpose exclusively. The quality is ensured in that it can nail separately and the nailing depth is adjustable. This machine is your best choice and a must equipment to upgrade your product quality and enterprise level.
Technical Data and Parameters
Power Voltage 220 V
Air Output 0.3 m3
Productivity Average Shoes 3 sec/pair
High Upper Boots 4 sec/pair
External Dimension 910*800*2200 mm
Machine Weight 485 Kg
Security and Maintenance
The machine must be earth connected repeatedly
The air supply pressure should be kept between 0.6~0.8 M Pa. Periodically release water from the filter and refill the oil-fog to make sure the oil inside between the max. And min. Position as in the indicator. The is machine is well
Adjusted by the manufacture and is subject to adjustment by the professional personnel.
| Power Voltage | V | 220 |
| Air Output | m³/min | 0.3 |
| Productivity | Average Shoes (sec/pair) | 3 |
| High Upper Boots (sec/pair) | 4 |
| External Dimension | Length × width ×height (mm) | 910×800×2200 |
| Machine Weight | Kg | 485 |
