Product Specifications
| Prod Model: |
DS-618AM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE |
| Type: |
Shoes |
| Automatic Grade: |
Automatic |
| Classification: |
Toe Lasting Machine |
Product Description
Characteristics

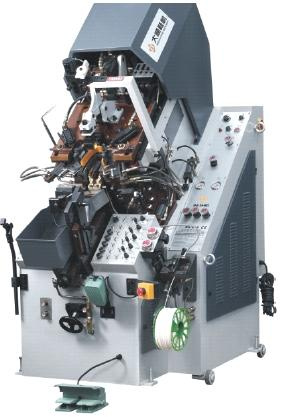

DS618AM Automatic Toe Lasting Machine with Cementing is a clamping shoe vamp with nice claws molding machine, designed for shoe sole molding. Make use of this machine to manufacture your products, which can meet the demand of attaching shoe vamp with the shoe last smoothly. The machine is featured with convenient operation, high efficiency, steady quality, easy maintenance, and suit for manufacturing the children shoes, sports shoes, lady shoes, men shoes, riding boot, gentlemen shoes and other special work shoes, mountaineering shoes and so on.
(1) Main features:
A. Universal tightening band and specially-designed wiper ensure shoe vamp attaching shoe last equably without any shagginess after lasting.
B. Pressure head device adopts adjustable two-sections pressure, which make the working piece during wiper tightening and final pressing reach the best impression.
C. Independence nice claws is adjustable, which can be suit for any shape shoes toe part tightening.
D. Each claw has function of automatic cogging-down. Operator can select some claws to be cogged down according with shoe vamp tightness degree.
E. Wiper with function of adjustable speed and inching motion is convenient for adjustment that controlled vamp tightening.
F. Auxiliary wiper structure cooperating with nice claws of toe part make the vamp attaching shoes last tightly.
G. Cross projection lamp can help laying toe part of shoe last in the right position.
H. Opening or closing of turn-plate of right and left claws is adjustable and independence, which can manufacture the right and left shoe separately.
I. Rotating of second claw is independence and adjustable, which is more quick and convenient for replacing shoe last.
J. Adjustable inner and outer brace table can move upward or downward, which is convenient for manufacturing shoes with any size.
Motor power 2.2 kw
Working voltage 380V/50HZ
Heating power 1.0 kw
Working pressure 5 Mpa
Efficiency 1600pair/8h
Net weight 1135 kg
External dimensions(L*W*H): 1710mm× 950mm× 1950mm
Package dimensions (L*W*H): 1760mm× 1000mm× 2230mm
| Motor power | 2.2 kw | Working voltage | 380V/50HZ | Heating power | 1.0 kw |
| Working pressure | 5 Mpa | Efficiency | 1600pair/8h | Net weight | 1135 kg |
| External dimensions(L*W*H) :1710mm×950mm×1950mm |
| Package dimensions (L*W*H):1760mm×1000mm×2230mm |
