Product Specifications
| Prod Model: |
ISOEM U(A)-P-O-S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Isoem U(a)-P-O-S |
| Input: |
1-5V,0-10V,0-75mv,0-2.5V,0-10A,0-20mA,0-30mA etc. |
| Output: |
4-20mA,0-20mA,0-5V,0-10V,1-5V etc. |
| Isolation Method: |
Electromagnetic Isolation |
| Isolation Voltage: |
3000V |
| Package: |
SIP 12pin |
| Main Circuit Type: |
Current |
| Application: |
PLC and Dcs or The Other Equipment Module Input at |
| Type: |
Power Distribution |
| Industrial Temperature: |
-45~+85 Centigrade |
Product Description

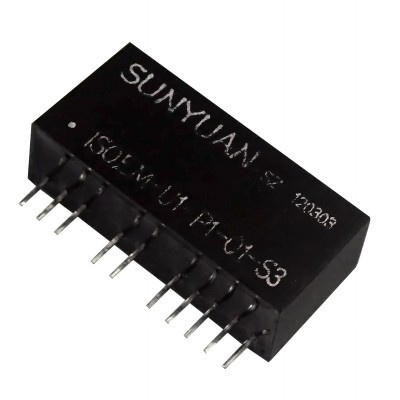

DC 0-5V/0-10V/0-75mV/0-10mA/0-20mA/4-20mA Isolated Amplifier/Transmitter DC V/I I/V V/V I/I Signal Isolated Amplifier/Transmitter with Power Distribution
Features:
> Compact SIP 12Pin, comply with UL94V-0 standard, flame retardant package.
> External potentiometer, zero and gain adjustment is not required (Non-linearity <0.1%).
> 3KVDC Isolation among auxiliary power supply, signal input, output.
> Auxiliary Power Supply: 5V, 12V, 15V, 24VDC, etc single power supply.
> Power distribution in input end for function expansion: 5V,12V, 15V, 24VDC, etc.
> 0-75mV/0-10V/0-1mA/4-20mA, etc analog signal isolationamplification and conversion.
> Industrial operating temperature range: -40~+85
> In EMC special situation, shielding measures and electro-magnetic rejection circuit are required.
Applications:
> Passive sensor isolated power distribution, signal acquisition & transmission.
> Supply power for preamplifier, weighing bridge tocollect signals.
> PLC, DCS analog signal isolation and dataacquisition.
> DC current/voltage signal isolation, amplification and conversion.
> Analog signal ground interference rejection anddata isolated acquisition.
> Industrial site signal isolation and long-distance transmission.
> Receiving and Transmitting the signals between meters& Instruments and sensors.
> Electric monitoring, medical equipments isolated safety bar.
Description:
SUNYUAN SIP12 Pin package ISOEM-S Series Analog Active Signal Isolated Transmitter/Distributor is a kind of signal module/ IC with electro-magnetic hybrid integrated circuit inside. There are one multi-isolation DC/DC transformation power and a set of electro-magnetic coupling analog signal isolated amplifier/transmitter in the IC. The transmitters mainly applied in the field without special requirements for EMC (electro-magnetic interference). And by employing internal isolation technique, proper I/O side creepage distance, the isolated voltage of that signal transmitter is up to 3000VDC.
ISO EM-S Series transmitter easily achieves the isolated conversion for the industrial site signals without gain/zero adjustment, external zero and without external gain adjustment potentiometers. The isolated power supply in input end can distribute power to displacement, resistance and other passive two-wire/three-wire sensors, and can also be used as pre-amplification in input end, amplification of weighing bridge, calibration,etc.
Precision grade: 0.1, 0.2.
0-5V/0-10V/0-75mV/0-2.5V/0-1mA/0-10mA/0-20mA/4-20mA,etc international standard signal input.
Output voltage signal: 0-2.5V/0-5V/0-10V/1-5V. Output current signal: 0-10mA/0-20mA/4-20mA, high load capacity.
The Universal Connection Solutions for Industrial Sensor and Instruments (ISO 4-20mA) Series
The External Protection of Isolation Amplifier Transmitter IC
Product Model Selection:
ISO EM U(A) -P- O- S
Signal Input Current/Voltage
U1:0-5V A1:0-1mA
U2:0-10V A2: 0-10mA
U3:0-75mV A3: 0-20mA
U4:0-2.5V A4: 4-20mA
U8:Customized A8: Customized
Auxiliary Power Supply
P1:DC24V P2:DC12V
P3:DC5V P4:DC15V
P8: Customized
Signal Output Isolated Distribution Power Supply
O1: 4-20mA O2: 0-20mA S1: 9VDC S2: 15VDC
O4: 0-5V O5: 0-10V S3: 24VDC S4: 5VDC
O6: 1-5V O8: Customized S8: Customized
Product Model Selection Examples:
E.g.1: Input signal: 0-5V, Output signal: 0-5V, Auxiliary power supply: 24VDC, Power distribution: 15VDC.
Product Model No: ISO EM U1-P1-O1-S2
E.g.2: Input signal:4-20 mA, Output signal: 4-20mA, Auxiliary power supply: 24VDC, Power distribution 24VDC. Product Model No: ISO EM A4-P1-O1-S3
Max. Rated Value:
(If the product operates in the max. rated vale in the long-term, may affect the durability, if exceed the max. values, may cause unrepairable damage.)
Continuous Isolation Voltage 3KVDC/rms |
| Power supply Volt. Input Range: ±25%Vdd |
| Operating Temperature - 45ºC ~ + 85ºC |
| Wielding Temperature (<10S) +300ºC |
| Voltage Signal Output Min. Load 2KΩ |
General Parameters:
Precision, Linearity Error Grade---------- 0.1, 0.2 | Backlash ---------- < 0.5% |
| Auxiliary Power Supply----- 5V,12V,15V,24VDC | Isolation ---------- Signal Input/Output/Auxiliary Power supply |
| Operating Temp. ---------- -20 ~ +70ºC | Insulation Resistance ---------- ≥20MΩ |
| Operating Humidity-------10~90%(No condensation ) | Withstand Volt.--------- 3KV(60HZ / S), leakage current: 1mA |
| Storage Temp. ---------- -45~ +85ºC | Impulse Volt. Test---------- 3KV, 1.2/50us(Peak Value) |
| Storage Humidity---------10~95%(No Condensation) |
|
Technical Parameters:
Items | Testing Conditions | Min. | Typical Value | Max. | Unit |
| Isolate Volt. | AC,50Hz,1min |
| 3000 |
| VDC |
Gain
|
|
| 1 |
| V/V |
| Gain Temp. Drift |
|
| 25 |
| ppm/ºC |
| Non-linearity |
|
| 0.1 | 0.2 | %FSR |
| Signal Input | Volt. |
| 0 |
| 15 | V |
| Current |
| 0 |
| 30 | mA |
| Input Offset Volt. |
|
| 2 | 5 | mV |
| Input Impedance | Volt. |
|
| 1 |
| MΩ |
| Current |
|
|
| 50 | Ω |
| Distribution Power Supply Output | Volt. |
| 5 |
| 24 | V |
| Current |
|
| 20 |
| mA |
| Ripple Wave |
|
| 50 |
| mV |
| Precision |
|
| 2 |
| % |
| Signal Output | Volt. |
| 0 |
| 15 | V |
| Current |
| 0 |
| 20 | mA |
| Load Capacity | Volt. | Vout=10V |
| 2 |
| kΩ |
| Current |
| 0 | 350 | 750 | Ω |
| Frequency Response |
|
| 1 | 20 | KHz |
| Signal Output Ripple Wave | No filtering |
| 10 | 20 | mVRMS |
| Signal Volt. Temp. Drift |
|
|
| 1 | mV/ºC |
| Auxiliary Power | Volt. | Customized | 3.3 | 12 | 24 | VDC |
| Consumption |
|
| 0.5 | 1 | W |
| Operating Temp. |
| -45 |
| 85 | ºC |
| Storage Temp. |
| -55 |
| 105 | ºC |
Note: For the special requirements on the load capacity of voltage signal and current signal, please do notify us when placing orders.
Output | Output Load Capacity | Response |
| 4-20mA | ≤350Ω
(If the 650Ω load is required, please notify us) | ≤1mS |
| 0-20mA |
|
| 0-5V | ≥ 2KΩ |
| 0-10V |
| 1-5V |
Product Model Selection Examples:
E.g.1: Input signal: 0-5V, Output signal: 0-5V, Auxiliary power supply: 24VDC, Power distribution: 15VDC.
Product Model No: ISO EM U1-P1-O1-S2
E.g.2: Input signal: 4-20 mA, Output signal: 4-20mA, Auxiliary power supply: 24VDC, Power distribution 24VDC.
Product Model No: ISO EM A4-P1-O1-S3
Product Model Selection:
ISO EM U(A) -P- O- S
Signal Input
Current/Voltage
U1:0-5V A1:0-1mA
U2:0-10V A2: 0-10mA
U3:0-75mV A3: 0-20mA
U4:0-2.5V A4: 4-20mA
U8:Customized A8: Customized
Auxiliary Power Supply
P1:DC24V P2:DC12V
P3:DC5V P4:DC15V
P8: Customized
Signal Output Isolated Distribution Power Supply
O1: 4-20mA O2: 0-20mA S1: 9VDC S2: 15VDC
O4: 0-5V O5: 0-10V S3: 24VDC S4: 5VDC
O6: 1-5V O8: Customized S8: Customized
