Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Colour: |
Black |
| Type: |
Energy Meter |
| Display: |
Digital |
| Electric Equipment: |
Three-phase Four-wire |
| Theory: |
Electronic Meter |
| Installation: |
Direct Connected |
| Usage: |
Multi-rate Watt-hour Meters |
| Measured Signal: |
Pulse Peak |
| Power Meter Connection: |
Terminal |
Product Description
Specifications

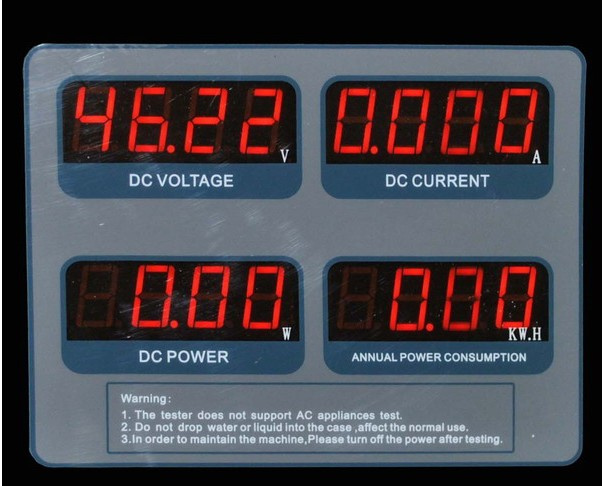

DC Testing Meter 4 in 1
It can test and display the DC voltage, DC power, DC current and the Annual power consumptions.
Detailed Configurations:
The main technical parameters:
Work
voltage
DC9V~25V
Power consumption
<1.2W@DC12V
Power measurement range
0~99.99W
Power resolution
0.01W
Power measurement Accuracy
0.5%FS
Voltage input range
DC2V~36V
Voltage resolution
0.01V
Voltage measurement Accuracy
0.5%FS
Current input range
DC0~5A
Current resolution
0. 001A
Current measurement Accuracy
0.5%FS
Annual electricity consumption
0~650.0
kwh/year
Annual electricity resolution
0.01kwh/year
(<100kwh) or
0.1kwh/year
(>100kwh)
Annual electricity measurement Accuracy
0.5%FS
Sampling rate
2 times /s
display mode
4 tube of 5.6 inch red LED display
Overrange display
"HHHH"
installation
bolt installation
Dimension
122.0mmx82.0mmx27.5mm
Work environment humidity
≤85% RH
Operating temperature
0~50°C
Connection diagram(the back):
