Product Specifications
| Prod Model: |
TW-GLF6221-13P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Colour: |
Black or Silver |
| Brand Name: |
Tatwah |
| Model Number: |
Tw-Glf6221-13p |
| Place Of Origin: |
Shenzhen, China |
| Packaging Detail: |
Qty:1PC/CTN |
| Delivery Detail: |
3 Days for Sampels,7 Working Days for Bulk Orders |
| Port: |
Shenzhen,China |
| Minimum Order Quantity: |
1 Piece |
| Supply Ability: |
3,000 Piece/Pieces Per Month |
| Payment: |
L/C,T/T,Paypal,Western Union |
| Usage: |
Testing |
| Material: |
Aluminum |
| Type: |
Combined Light Box |
| Shape: |
Rectangle |
| Certification: |
RoHS |
Product Description

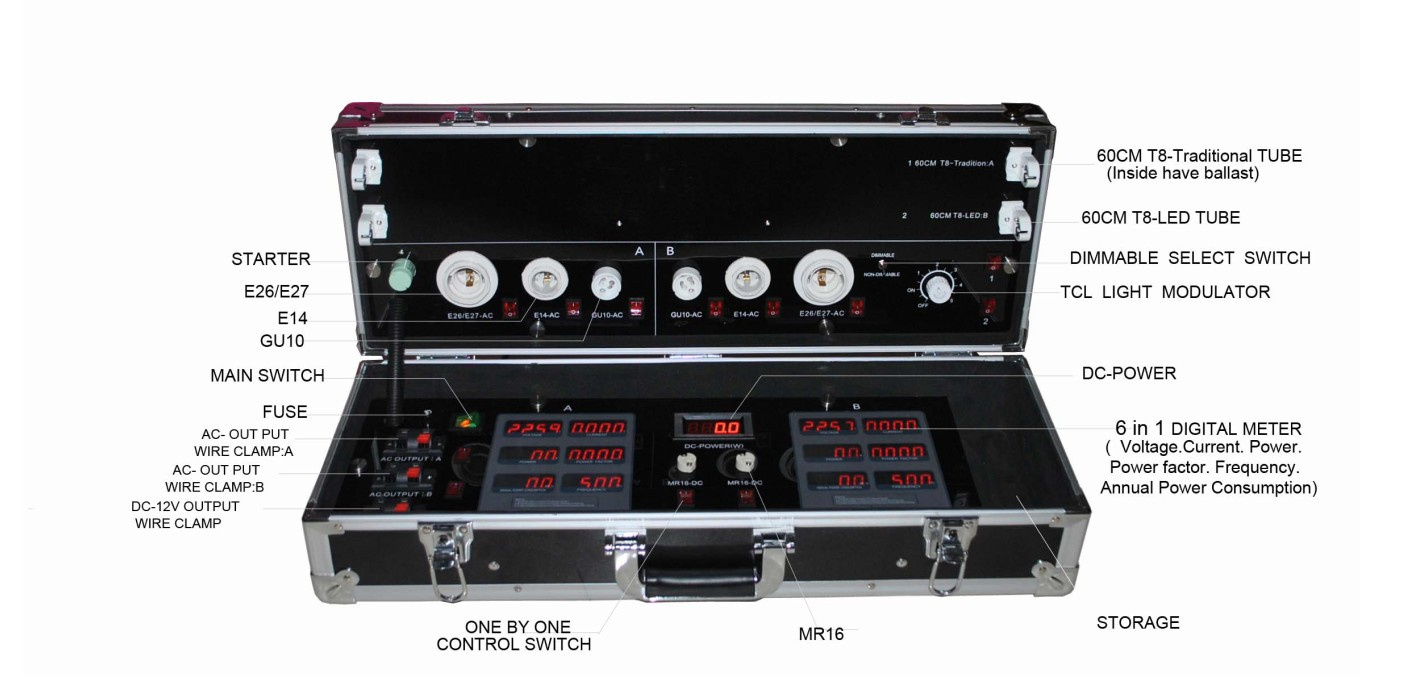

Product Name: LED Demo Case
Model: TW-GLF6221-13P(P: Parameter)
Function: Demo & Test LED lamps
Meter Function: AC, DC, Voltage, Current,
Frequency, PF, Annual Power consumption, Power.
Material: Aluminum alloy, MDF, Acrylic etc.
Certificate: CE, RoHS
Case size: L62*W21*H14 (unit: Cm)
Test Connectors:
E26/27-E14-GU10-MR16, T8 fluorescent tube, T8 LED tube, etc.
Specification:
Recognized lamp holder: All socket interface has a corresponding-marked name for the user to distinguish and identify; All sockets have one-on-one control switch, convenient control and test.
1. The case internal circuit: Strictly distinguish for AC and DC; AC socket (- AC) interface can test the electric parameters are as follows: Voltage, current, power, power factor, annual power consumption (10 hours /per day ) and frequency;
2. DC (- DC) part of the parameter display: DC lamp holder (- DC) interface data displayed in the DC POWER, such as MR16. DC voltage in the box internal is transformed into 12 V output to light sit interface.
3. Parameters for GU10, E14, E26/ E27 /B22/G24 and so on can be tested (voltage, current, power, power factor, annual current consumption )
4. Design for dimmable: Dimmable engine and Dimmable switch; There are two positions for dimmable switch-DIMMBALE and NON-DIMMABLE. When put the switch on dimmable position, the brightness for all dimmable lamps can be adjusted. When put the switch on Non-dimmable position, all the dimmable lamps can't be adjusted. So it can be tested that if the brightness of the lamp can be adjusted.
5. Three wire clamps (2 PCS AC output and DC 12 output) and one AC output universal socket. It's convenient for external power source. Every lamp socket has a unique switch and mark, which is convenient for identification and control.
6. One storehouse is for small things; 3 foundation plates are to protect the case.
1, AC voltage Parameter: Input voltage can be displayed; Support international use; Voltage ranges from 86~264V. Overseas voltage can be shown for overseas use.
2, AC current parameter: Input Current can be displayed. The measurement for current is accurate to mA. The accuracy is about 1/1000. The measuring range is 4A.
3, AC Power parameter: AC power display area: Power can be displayed. Power meter is correct to 1 decimal point. So, it can show the change and contrast of power correctly. The ultimate power is 999.9W. If it surpasses 999.9, it will be showed as HHHHH.
4, Power Factor(PF) parameter: LED power factor can be displayed. (PF is a very important parameter for LED; Power factor for traditional lamp is only 1)
5, Annual Power consumption parameter: Annual power consumption display area: Annual power consumption can be displayed (ten hours power on per day)
6, Frequency parameter: Frequency display area: The frequency for relative state grid can be showed. Some frequency abroad is 60Hz.
7, DC Power parameter: The power of the DC12V lamp can be tested.
Annual Power Consumption setting:
There is a small button on the left down corner of the AC 6-in-1 meter, you can adjust it by press the button, set from 1 to 24 hours of annual power consumptions mode, the annual power consumptions is calculated based on 365 days in a year.
Accessories: Power cable X 1PC, Extension lead with T8 end caps X 2PCS, standby fuse X 3PCS.
Special attentions: When you test the Non-dimmable lights, you have to turn the button to the Non-dimmable mode, otherwise the light can not turn on or the data is wrong!
