Product Specifications
Prod Model: |
IAxxxxS-xW |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Input: |
3.3, 5, 9, 12, 15 and 24 VDC |
Output: |
(+/-) 5, 9, 12, 15 and 24 VDC |
Power Consumption: |
0.1W-3W |
Package: |
SIP 10pin |
Operating Temperature: |
-45-+85 Cel. Deg. |
Product Description

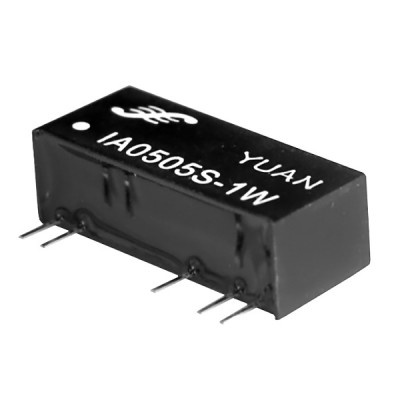

IAxxxxS-1W Series Fixed Input Regulated Output DC-DC Converter
IAxxxxS- Series DC-DC Converter Features:
-Rated 1W Output
-Positive Cathode Voltage Output
-High Power Density
-Small Footprint
-SIP and DIP Package Style
-Industrial Standard Pin-out
-UL94-VO Package
-No Heat Sink Required
-1kVDC Isolation
-Fixed Input Voltage
-Regulated Output Voltage
-Temperature Rang: -40 ~+85
-PCB Mounting
-No External Components Required
-Custom Service Available
-Available Inputs:
3.3, 5, 9, 12, 15 and 24 VDC
-Available Outputs:
(+/-) 5, 9, 12, 15 and 24 VDC.
IAxxxxS/D-xW Series DC-DC Converter General Parameters:
ELECTRICAL SPECIFICATIONS: |
(All specifications tested typically @ 25° C, humidity< 75%, nominal input and rated outputunless otherwise noted. )
OUTPUT SPECIFICATIONS |
Items: |
Testing condition |
Min |
Typ |
Max |
Output accuracy: |
At full load and nominal Vin |
|
|
± 2% |
Output power: |
|
0.1W |
|
1W |
Line regulation: |
Input voltage from low to full load |
|
|
0.5 |
Load regulation: |
From 20% to full load |
|
|
2% |
Ripple and noise: |
20MHz bandwidth |
|
|
20mVp-p |
Temperature drift: |
|
|
|
± 0.02%/° C |
Minimum load |
|
|
|
10% |
Switching frequency |
|
|
80K HZ |
|
Short circuit protection |
|
60s |
INPUT SPECIFICATIONS |
Items: |
Testing condition |
Min |
Typ |
Max |
Input voltage range
|
3.3 VDC nominal input |
3.1-3.46 |
5 VDC nominal input |
4.75-5.25 |
9 VDC nominal input |
8.55-9.45 |
12VDC nominal input |
11.4-12.6 |
15 VDC nominal input |
14.25-15.75 |
24VDC nominal input
|
22.85-25.26
|
COMMON SPECIFICATIONS |
Items |
|
Min |
Typ. |
Max |
Operating temperature range |
|
-40° C |
|
+85° C |
Storage temperature range |
|
-55° C |
|
+125° C |
Humidity |
|
|
|
< 75% |
Cooling |
Free Air Convection |
Isolation voltage (VDC) |
Input to Output |
|
1, 000 |
|
Isolation resistance (ohms) |
|
|
10 9 |
|
Isolation capacitance (pF) |
|
|
|
60 |
Efficiency (%) |
See Product List |
60 |
|
85 |
Case material |
Non-conductive black plastic |
Potting material |
Epoxy Resin UL94-V0 |
Packing material |
Tube |
Dimension (mm / inch) |
27.50*8.80*11.00 (1.08*0.34*0.43) |
Weight (g) |
10 |
MTBF (Hrs) |
> 1, 000, 000 |
PRODUCT LIST |
Part Number |
Input Voltage (VDC) |
Output |
Efficiency
(%, Typ. ) |
Package |
Range |
Nominal |
Max. |
Current (mA) |
Voltage (VDC) |
IA0503S-1W |
4.75-5.25 |
5 |
5.25 |
± 100 |
± 3.3 |
63 |
SIP |
IA0505S-1W |
4.75-5.25 |
5 |
5.25 |
± 100 |
± 5 |
77 |
SIP |
IA0512S-1W |
4.75-5.25 |
5 |
5.25 |
± 42 |
± 12 |
66 |
SIP |
IA1205S-1W |
11.4-12.6 |
12 |
12.6 |
± 100 |
± 5 |
68 |
SIP |
IA1212S-1W |
11.4-12.6 |
12 |
12.6 |
± 42 |
± 12 |
69 |
SIP |
IA1209S-1W |
11.4-12.6 |
24 |
12.6 |
± 55 |
± 9 |
68 |
SIP |
IA2405S-1W |
22.85-25.26 |
24 |
25.26. |
± 100 |
± 5 |
75 |
SIP |
IA2409S-1W |
22.85-25.26 |
24 |
25.26 |
± 53 |
± 9 |
72 |
SIP |
IA2412S-1W |
22.85-25.26 |
24 |
25.26 |
± 42 |
± 12 |
76 |
SIP |
