Product Specifications
| Prod Model: |
DD28 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Energy Meter |
| Display: |
Indicator |
| Electric Equipment: |
Single-phase |
| Theory: |
Machine-electric Type |
| Installation: |
General Installation Meter |
| Usage: |
Reactive Energy Meter |
| Measured Signal: |
Continuous Wave |
| Power Meter Connection: |
Terminal |
Product Description

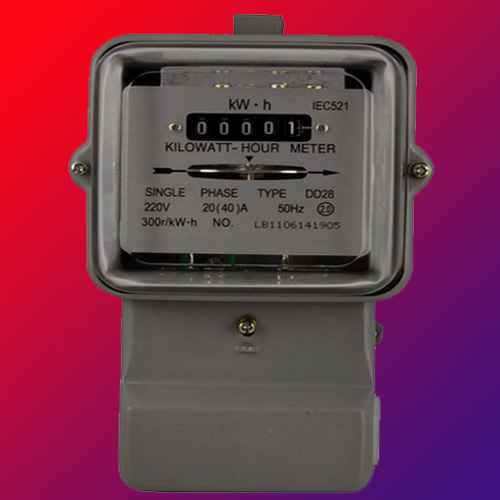

DD28 Single-Phase Watt-Hour Meter:
Application:
DD28 single phase watt-hour meter is an induction meter which is applicable to measure the rated frequency. It is in conformity with GB/T15282-94 idt IEC521 standards.
Structure Features:
The meter has separable electromagnet and the bearing has 4 kinds: Single-jewel, dual jewel, magnetic thrust and magnetic floating. The case has 3 kinds: Aluminium, plastic and glass. The discasting frame is alloy aluminium with excellent mechanical strength.
Specifications & Models:
Type: DD282
Accuracy(Class): 2. 0
Rated Voltage: 220V
Rated Current: 2/4, 2. 5/5, 3/6, 5/10, 10/20, 20/40, 30/60, 40/80A
Overload Capacity: 200%Ib
Starting Current: 0. 5% Ib
Insulation: Voltage 2KV for 1mintue impluse voltage 6KV
