Product Specifications
| Prod Model: |
DD862 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Energy Meter |
| Display: |
Indicator |
| Electric Equipment: |
Single-phase |
| Theory: |
Induction Meter |
| Installation: |
General Installation Meter |
| Usage: |
Reactive Energy Meter |
| Measured Signal: |
Continuous Wave |
| Power Meter Connection: |
Terminal |
Product Description

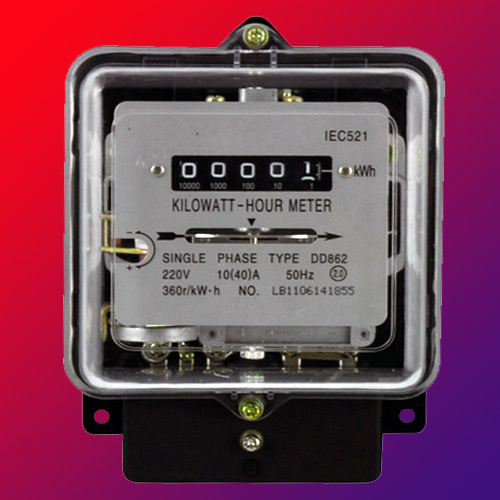

DD862 Single Phase Watt-Hour Meter, DD862 Induction Meter:
Technical characteristics:
Accuracy class in accordance with national standard GB/T15283-94: 2.0
Rated Voltage: 220V
Rated Current: 1.5/6, 2.5/10, 5/20, 3/12, 10/40, 15/60, 20/80, 30/100A
DD862 and DD862a single phase electric meter are in duction meter. It is used in calculating 50Hz single-phase AC active electrical energy. It is composed of electromagnetic element. Moving disc, be-aring, damping magnet steel, counter and regulator and regulator equipment etc. The meter has high precision, high over-load, long lifetime and so on features. The quality technical index of the products is in accordance with the GB/TI52831994national stan-dard and IEC521-94international standard.
The voltage ir on core adopts semienclosed insert model. The current element adopts two-stage compensation to have wide load property. The whole plasticenclosed voltage coil. Can withst and instantaneo. Us large voltage impulse. The double jewels bearing or the magnetic-propelled bearing can ensure long lif-etime. The bipolar aluminium nickel cobalt damping magnet steels have high coercivity, stable magmeti-cproperty. The electric function is in accordance with IEC521 internatlinal standard.
Tianze Elec. Co., Ltd. is one leading manufacturer and exporter in the fields of low-voltage electrical equioments, lightings, construction materials(hardwares, tools). We have been devoteing to research and develop the sanitary fittings after established. Our production on a complete set of processes.
Tianze Elec. Commits itself to offer and develop excellent quality products according to the current markets. The flexible trading modes shall bridge you and us to cooperate happily and successfully. You can place the orders in forms of OEM, ODM, CKD, Moulds & Dies-Making etc. with us. We shall be at your best services to meet with your satisfactions and requirements.
