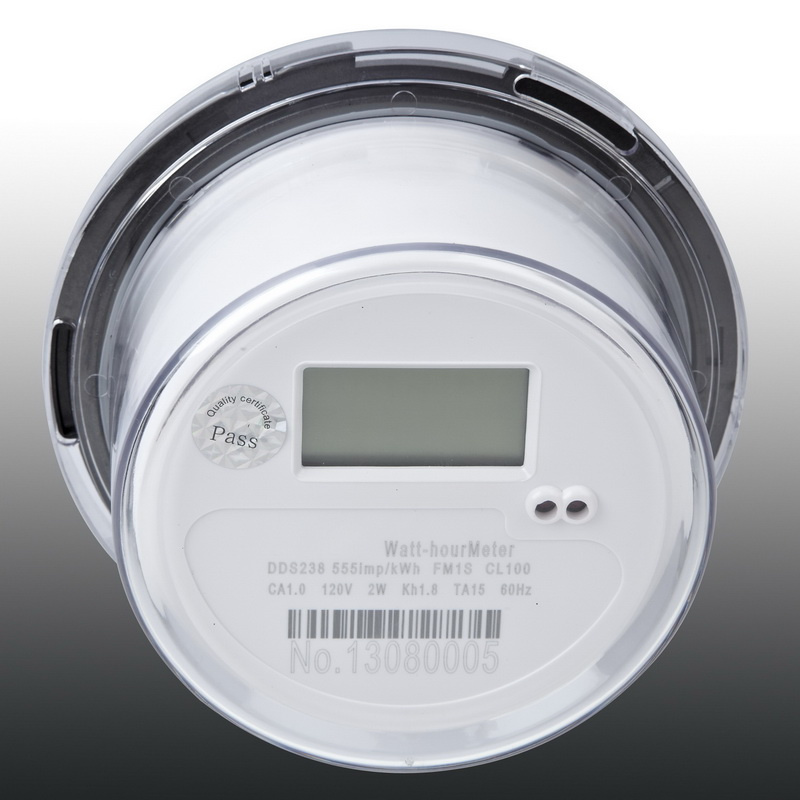

Product Specifications
| Prod Model: |
DDS238-R |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Energy Meter |
| Display: |
Digital |
| Electric Equipment: |
Single-phase |
| Theory: |
Electronic Meter |
| Installation: |
Direct Connected |
| Usage: |
Standard Electric Energy Meter |
| Measured Signal: |
Pulse Peak |
| Power Meter Connection: |
Terminal |
Product Description
Main fuction:
1. Advanced micro-electronic technology is used to measure single phase active energy in 50HZ rated frequency.
2. Long-life and high-reliability components are adopted.
3. Special LSI and SMT process is adopted.
4. The meter has excellent error linearity within a range of 0.05Ib-1max
5. Large overload capacity, low power consumption.
6. Small volume, low weight.
Technical specification:
1. Accuracy: Class 1.0/2.0
2. Basic Current: 2.5(10)A, 5(20)A, 5(30)A, 10(40)A, 20(80)A, 30(100)A (special current as required)
3. Rated Voltage(Un): 220V (special voltage as required)
4. Reference frequency: 50Hz or 60Hz
5. Meter constant: 800/1600imp/kW. H
6. Electric parameter:
Operation Voltage 0.8-1.15Un
Insulation Voltage less than 2000VAC
Power Consumption less than 2W/10VA
7. Outer and mount dimension:
Size: 167mmx108mmx55mm
8. Kwh display: Register or LED or LCD for choice
