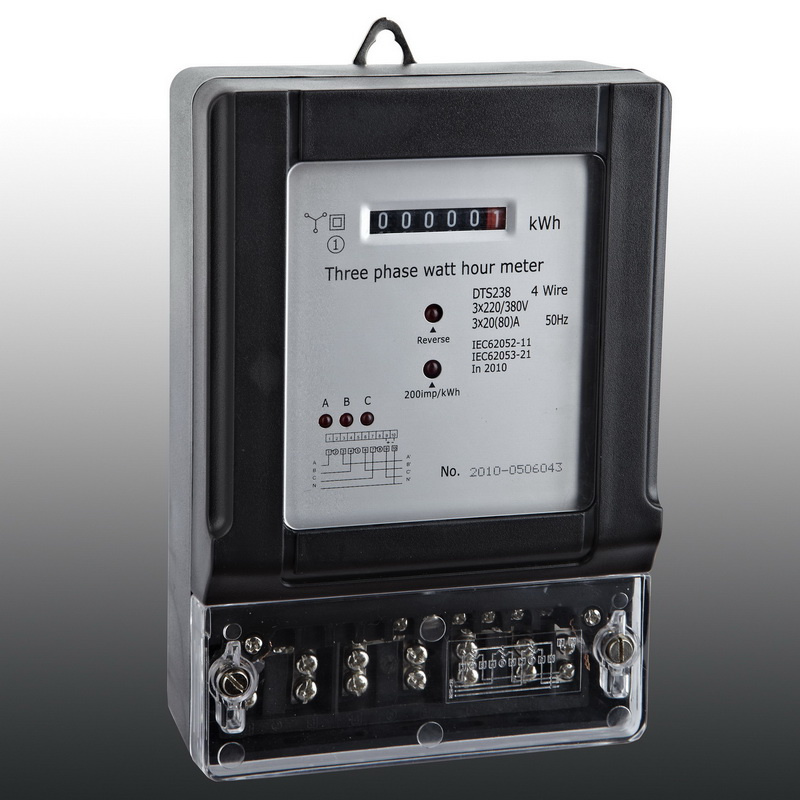

Product Desciption
Main fuction:
1. Developed and manufactured using advanced microelectronics and SMT technology.
2. Long-life and high-reliability components are adopted.
3. Measure 3-phase active energy, long work terms, need no correct
4. Supplied by 3-phase power and the accuracy isn't effected by 1-2 Phase's lack
5. Load control and wide range of work temperatures
Technical specification:
1. Accuracy: Class 1.0/2.0
2. Basic Current: 1.5(6)A, 3(6)A, 2.5(10)A, 5(20)A, 15(60)A, 10(40)A, 20(80)A, 30(100)A (special current as required)
3. Rated Voltage(Un): 3x100V, 3x220/380V (special voltage as required)
4. Reference frequency: 50Hz or 60Hz
5. Meter constant: 400/1600imp/kW. H
6. Electric parameter: Operation Voltage 0.8-1.15Un; Insulation Voltage less than 2000VAC; Power Consumption less than 1W/4VA
7. Outer and mount dimension: Size: 210mmx145mmx72mm
Wenzhou Lemeng Electrical Technology Co., Ltd. is a manufacturer and exporter specialized in the research and development and production of Distribution Boxes. We are located in Wenzhou City, Zhejiang Province, China, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
