Product Specifications
| Prod Model: |
SK-102-150t |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Transport Drier |
| Movement Way: |
Agitation |
| Heating Mode: |
Dielectric |
| Operational Method: |
Intermittent |
| Operation Pressure: |
Atmospheric Dryer |
Product Description

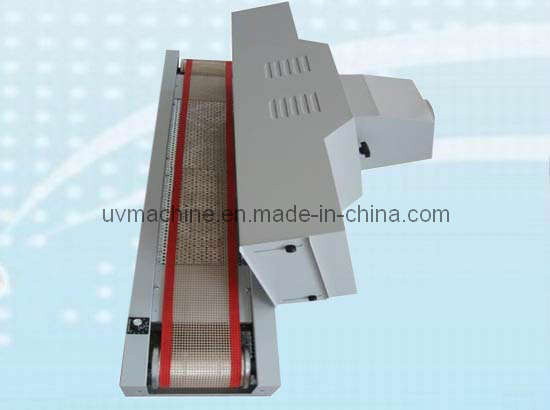

UV curing machine UV dryer UV coating machine UV drying machine
Technical Parameter
UV Lamp: 2.0KW*1PC;
UV radiation length: 200mm;
UV intensity: 100W/cm
UV main wave length: 365nm;
Distance between Lamp and delivery belt can adjust: 50-150mm
In Put / out put height: 10~100mm can be adjust;
In put length: 170mm;
Out put length: 170 mm;
After 3 Minutes, UV radiation light will get its 100% out put.
Lamp life time: 800H;
Speed adjust: 1-5m/min.
Delivery belt width: 150mm;
Belt width: 200mm;
Belt material: Black Teflon or stainless steel;
Machine Size: 1250× 280× 550mm(L× W× H);
Power supply: 220VAC 50Hz
|
Model |
SK-102-150t |
Belt material |
Teflon/stainless steel |
|
Machine size |
L1200*W280*H1570
L370*W280*H220 |
Belt width |
150mm |
|
UV lamp |
2KW*300mm*1pc |
Auto stop |
yes |
|
Speed |
0.1-10m/min |
Power supply |
AC 220V 50HZ |
|
UV lamp height adjustable |
50-120mm |
UV lam intensity |
100% |
Xinxin Industrial Co., Ltd., is a manufacture of UV part & complately UV machine, coating lineProduct scope:
1. UV transformers, UV reflector, UV capacitor, UV lamps(UVA, UVC, UVB spectrum), UV halide lamp, UV exposure Lamps
2. UV meters, UV intensity meter;
3. UV glasses for pretect eyes;
4. UV machine for silk screen curing;
5. UV painting and coating line curing system.
6. Offset printing UV curing machine.
7. Flexographic printing UV installation machine.
8. IR OVRN for dry painting, coating, printing.
XinXIN INDUSTRIAL Co., Ltd gathered 8designers with over 5 years experiences in UV curing field.
Manufacture Equipments device: Two set of bending machine; Two set of plate shearing machine; Two set of Punch machine. Three milling machine; Three cutting machine. Four welding machines.
We could do special UV machine as your requiry. We have strong capability of design as various requiry, depending on the product we supply you the best UV equipment with lowest cost.
Customer satisfaction is our eternal pursuit, credit management, system to make high-quality equipment to meet the needs of various sectors, while striving for innovation and progress were to achieve a win-win.
Our hot HEART Makes from Honesty, Efficiency, Active, Responsibility, Team work;
