Product Specifications
| Prod Model: |
SK-205-500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Transport Drier |
| Movement Way: |
Agitation |
| Heating Mode: |
Dielectric |
| Operational Method: |
Continuous |
| Operation Pressure: |
Atmospheric Dryer |
Product Description

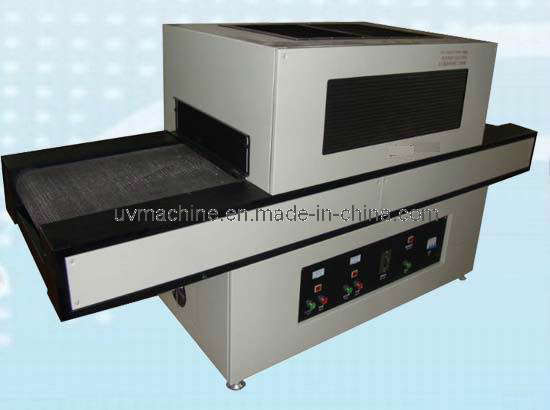

UV curing machine UV coating machine UV dryer UV drying machine
Technical parameter:
UV Lamp: Halide mercury UV lamp
UV lamp lifetime: 800H( We suggest replace a new lamp after using 1000H)
Lamp power: 5KW*2PCS;
UV intensity: 100W/cm
UV main wave length: 365nm
Cooling way: Air cooling
Reflector: Polished aluminum reflector.
Delivery belt: Stainless steel / Teflon can be choice as your requry.
Belt width: 500mm
Timer set: Account UV lamp worktime.
Input and output height: 50mm~150mm
Lamp Intensity: 100%
Speed adjust: 1-10M/min
SIZE: 1600L*750W*1650mmH
Power supply: 380VAC 50Hz
|
Model |
SK-205-500 |
Belt width |
500mm |
|
Machine size |
L1600*W750*H1650 |
Out look |
white with black |
|
UV lamp |
2KW*400mm*1pc |
Auto stop |
yes |
|
UV lamp kind |
halide UV lamp |
Power supply |
AC 380V 50HZ |
|
UV lamp height adjustable |
50-120mm |
UV lam intensity |
50%. 100% |
Xinxin Industrial Co., Ltd., is a manufacture of UV part & complately UV machine, coating lineProduct scope:
1. UV transformers, UV reflector, UV capacitor, UV lamps(UVA, UVC, UVB spectrum), UV halide lamp, UV exposure Lamps
2. UV meters, UV intensity meter;
3. UV glasses for pretect eyes;
4. UV machine for silk screen curing;
5. UV painting and coating line curing system.
6. Offset printing UV curing machine.
7. Flexographic printing UV installation machine.
8. IR OVRN for dry painting, coating, printing.
XinXIN INDUSTRIAL Co., Ltd gathered 8designers with over 5 years experiences in UV curing field.
Manufacture Equipments device: Two set of bending machine; Two set of plate shearing machine; Two set of Punch machine. Three milling machine; Three cutting machine. Four welding machines.
We could do special UV machine as your requiry. We have strong capability of design as various requiry, depending on the product we supply you the best UV equipment with lowest cost.
Customer satisfaction is our eternal pursuit, credit management, system to make high-quality equipment to meet the needs of various sectors, while striving for innovation and progress were to achieve a win-win.
Our hot HEART Makes from Honesty, Efficiency, Active, Responsibility, Team work;
