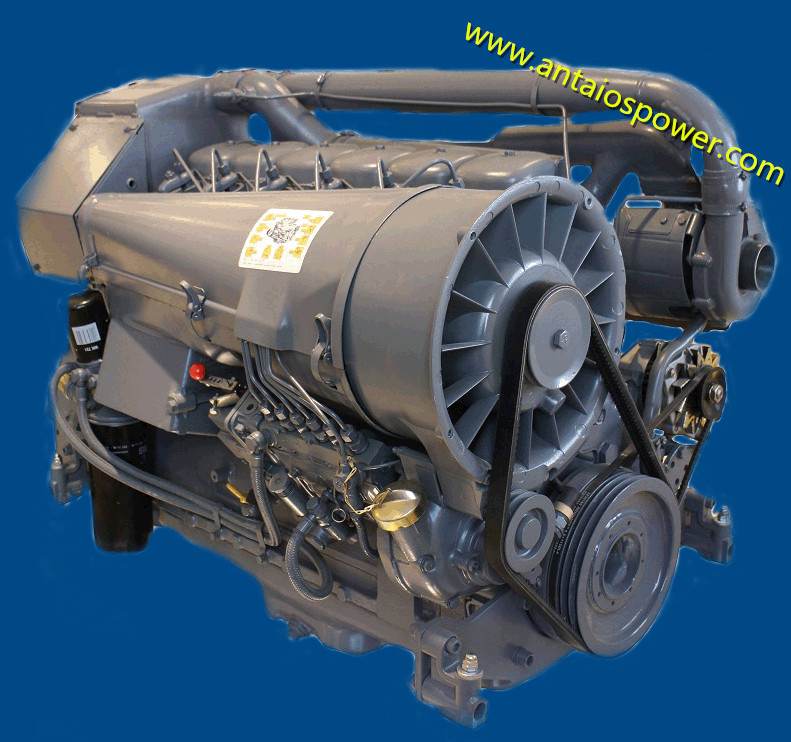

Product Specifications
| Prod Model: |
BF6L913C |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Model: |
Deutz Bf6l913c |
| Cyl No.: |
6-Cylinder |
| Bore/Stroke (Mm): |
102/125 |
| Displacement (L): |
6.128 |
| Cooling System And Stroke: |
Air Cooled 4 Stroke |
| Air Intake Way: |
Turbocharged Cooling |
| Power/Rev (Kw/Rpm): |
84/1500 1051800 125/2300 141/2500 |
| Overall Dimensions (Mm): |
1134x711x990 |
| Weight (Kg): |
510 |
Product Description
Competitive Advantage of Deutz Air-cooled Diesel Engine:
Low Fuel Consumption
Due to the high efficiency of heating cylinder diesel engine with air cooling, the heat from the air is less than that radiated by the diesel engine with water cooling, and the energy consumed by the fan is low. Therefore, the fuel consumption is lower in diesel engines with air cooling.
Minor inconvenience
The fact that the engine air cooled diesel generates 27% fewer problems than the diesel engine with water cooling, which has between 25% and 30% of complications, because their cooling is by air.
Long lift
The long life of diesel engines with air cooling is greater than the engine with water cooling because the former have less erosion and friction.
No overheating
The overheating problem does not exist in diesel engines with air cooling because there is a wide difference between the temperature of the cylinder cover and the environment.
Fast Switching
The diesel engine with air cooling can achieve an operating temperature in just 5 or 6 minutes and can be complemented by the use of generator set, since it only needs1/3 less amount of air to cool the
High reliability
Because the reliability, easy operation and few complications, the diesel engine with air cooling can be used in various fields such as generator set, construction, tractors, etc.
Reduced maintenance costs
The maintenance of diesel engines with air cooling is easy compared with keeping those water cooling, because the few components used by it.
Complete list of our deutz engine
1. Deutz 1015 series: Bf6m1015, bf6m1015c, bf6m1015cp, bf8m1015, bf8m1015c, bf8m1015cp
2. Deutz 413/513 series: F8l413f, bf8l413f, f10L413f, f12L413f, bf8l513, bf8l513c, bf10L513, bf12L513
3. Deutz 912/913 series: F2l912, f3l912, f4l912, f4l912t, f6l912, f6l912t, f4l913, bf4l913, f6l913, bf6l913, bf6l813c, f3l912W, f4l912W, f6l912W
|
Model |
Cly. No |
Bore/Stroke (mm) |
Displacement (L) |
Air-intake way |
Power/Rev(kw/rpm) |
Overall Dimensions (mm) |
Weight (kg) |
|
F2L912 |
2 |
100/120 |
1.88 |
Naturally intake |
14/1500 |
17/1800 |
20/2300 |
|
678x704x872 |
245 |
|
F3L912 |
3 |
100/120 |
2.828 |
Naturally intake |
24/1500 |
29/1800 |
36/2300 |
38/2500 |
730x673x815 |
275 |
|
F4L912 |
4 |
100/120 |
3.77 |
Naturally intake |
32/1500 |
38/1800 |
46/2300 |
51/2500 |
860x673x815 |
300 |
|
F4L912T |
4 |
100/120 |
3.77 |
Turbo charged |
41/1500 |
48/1800 |
52/2000 |
|
860x673x815 |
315 |
|
F4L913 |
4 |
102/125 |
4.086 |
Naturally intake |
34/1500 |
40/1800 |
50/2300 |
56/2500 |
860x673x820 |
310 |
|
BF4L913 |
4 |
102/125 |
4.086 |
Turbo charged |
47/1500 |
55/1800 |
66/2300 |
78/2500 |
865x692x845 |
350 |
|
F6L912 |
6 |
100/120 |
5.655 |
Naturally intake |
48/1500 |
60/1800 |
74/2300 |
78/2500 |
1120x673x815 |
410 |
|
F6L913 |
6 |
102/125 |
6.128 |
Naturally intake |
51/1500 |
65/1800 |
79/2300 |
85/2500 |
1120x673x820 |
420 |
|
F6L912T |
6 |
100/120 |
5.655 |
Turbo charged |
61/1500 |
72/1800 |
81/2300 |
85/2500 |
1125x673x815 |
410 |
|
F6L913T |
6 |
102/125 |
6.128 |
Turbo charged |
61/1500 |
70/1800 |
91/2300 |
96/2500 |
1125x673x820 |
430 |
|
BF6L913 |
6 |
102/125 |
6.128 |
Turbo charged |
74/1500 |
88/1800 |
112/2300 |
118/2500 |
1134x711x910 |
485 |
|
BF6L913C |
6 |
102/125 |
6.128 |
Turbo charged after cooling |
84/1500 |
105/1800 |
125/2300 |
141/2500 |
1134x711x990 |
510 |
|
ADG BF6L913 |
6 |
102/125 |
6.128 |
Turbo charged |
88/1500 |
106/1800 |
|
|
1134x711x910 |
485 |
|
ADG BF6L913C |
6 |
102/125 |
6.128 |
Turbo charged after cooling |
114/1500 |
137/1800 |
|
|
1134x711x990 |
510 |
|
F3L912W |
3 |
100/120 |
2.828 |
Naturally intake |
|
29/2150 |
31/2300 |
33/2500 |
730x673x815 |
275 |
|
F4L912W |
4 |
100/120 |
3.77 |
Naturally intake |
|
39/2150 |
42/2300 |
44/2500 |
860x673x815 |
300 |
|
F6L912W |
6 |
100/120 |
5.655 |
Naturally intake |
|
60/2150 |
63/2300 |
66/2500 |
1120x673x815 |
410 |
Beijing Antaios Technology Co., Limited is the absolute specialist of China in engines & parts & gensets field. So far away, we mainly supply engines and related parts and genset which were of Deutz licensed technology and then developed to Chinese own brand with more subsidiary series, smaller size, more environment friendly and better function. Including: 912/913/413/513 air-cooled series; 1015 series; Cummins China series. All products are passed ISO9001 quality system authentication,
We are familiar with different parts manufacturers and can well organized the parts supply and quality control, that's why we can satisfy our clients with reasonable price and good quality.
We are pleased to give full solution to your demand and aimed to be your most trustworthy partner in China.
Our Products List:
Deutz Chinese license diesel engine & deutz engine spare parts of water cooled 1015 series, air cooled 413/513 series and Deutz technology of China 912/913 Series.
Dongfeng-Cummins series water cooled diesel engine &spare parts.
DEUTZ, CUMMINS, LOVOL Series Diesel Generator Set
Concrete Pump which including engine and electromotor powered, S Pipe valve and gate valve, two Series and more than twenty models.
