Product Description

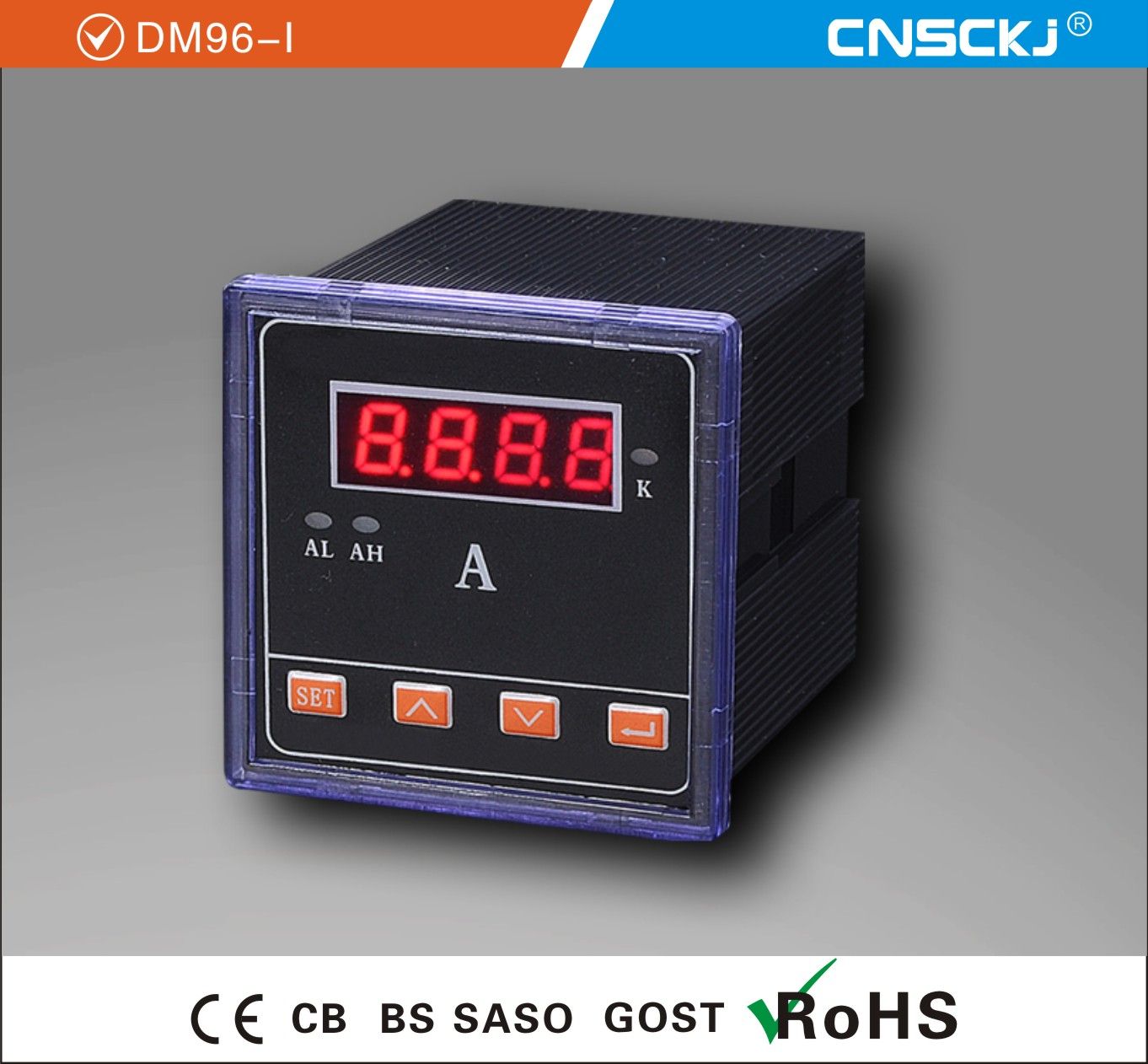

Product Name: Digital display ammeters
Country of Origin: China
Model: DM96-I
Color: Black
Power: AC 220V
Out size: 96*96*80
Hole size: 91*91
N. W: 0.30KG
Package Size: 41.5*37*35
Qty/Ctn: 36
Carton Weight: 11.46
Packing: Carton
Warranty: 1Years
Usage
DM96-I Series digital display voltmeters(ammeters) are a new generation of programmable economy digital display mounted meters, which are mainly used in the real-time measurement and indication on AC or DC voltage(ammeter) in an electric circuit. With features of high precision, good stability and calibration-free long-term operation, onsite parameter setting on a panel, it is an idea substitute of traditional dial instrument or ordinary digital instrument.
Feature
Adopt SMT product techniques, compact circuit, high reliability;
AC sampling, RMS measuring mode, wave distortion doesn't effect the accuracy rate;
With overrun alarm contact output function, the higher and lower limit alarm are programmable.
Setting function of alarm delay time;
Display multiply power is programmable and apply to transformer with several specifications.
Setting function of digital filtering time
Unique method of installation, can complete the installment easily without tool;
With performance of intelligent meters, price of common meters, high cost performance
Technical parameters |
Value |
input |
Normal value |
Voltage :300V\500V,Current :1A\5A,(Or ordered by customer) |
Overload |
Current:continual 1.2times,instaneous10times/1s;
Voltage:continual1.2times,instantaneous 2times/1s. |
Frequency |
45~65Hz |
Accuracy class |
0.5 |
Display |
LED display,range in:-1999~1999 |
Power
supply |
Voltage range |
AC 220V |
Power consumption |
<5VA |
Insulation resistance |
≥100MΩ |
Isolation voltage |
Between power supply/input/output 2kV/1min(rms) |
MTBF |
≥50000h |
Environment |
Temperature |
Work:-10~55 ,Storage:-25~+70 |
Humidity |
≤93%RH,In the place without dew and corrosive gas |
Altitude |
≤2000m |
