Product Specifications
| Prod Model: |
(WHB-3000) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Brinell Hardness Tester |
| Measuring Range: |
HRB |
| Standard: |
ASTM |
| Application: |
Metal |
Product Description

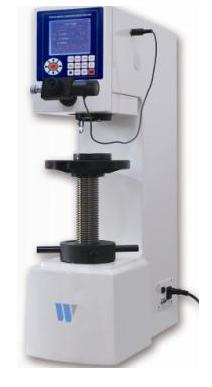

WHB_3000 Digital Brinell Hardness Tester
The Brinell Hardness test that shows the largest indentation among all the hardness tests is able to reflect the comprehensive features of the material, and the test is unaffected by the organizational micro-dioptre and the compositional unevenness of the speciment; And hence it is a hardness testing with high precision. The Brinell hardness test is widely used in such industrial fields as metallurgy, forging, casting, unhardened steel and nonferrous metals industries, as well as in the laboratories, universities, colleges and scientific research institutes.
Specification WHB-3000
Test force: 612.9N (62.5Kgf), 980N(100Kgf), 1226N(125Kgf), 1839N(187.5Kgf), 2452N(250Kgf), 4900N(500Kgf), 7355N(750Kgf), 9800N(1000Kgf), 14700N(1500Kgf), 29400N(3000kgf)
Max Height of the speciment: 225mm
Max Distance from the indenter center to the instrument panel: 135mm
Magnification of the microscope: 20X
Min Reading Grade of the Drum wheel of the microscope: 0.00125mm
Power supply: AC220V/50-60Hz
Accuracy of Displayed Hardness Value:
Hardness Range(HBW) Max tolerance% Repetition%
≤ 125 ± 3 ≤ 3.5
125< HBW≤ 225 ± 2.5 ≤ 3.0
> 225 ± 2.0 ≤ 2.5
We are professional hardness tester manufacturer & Trading Company.
